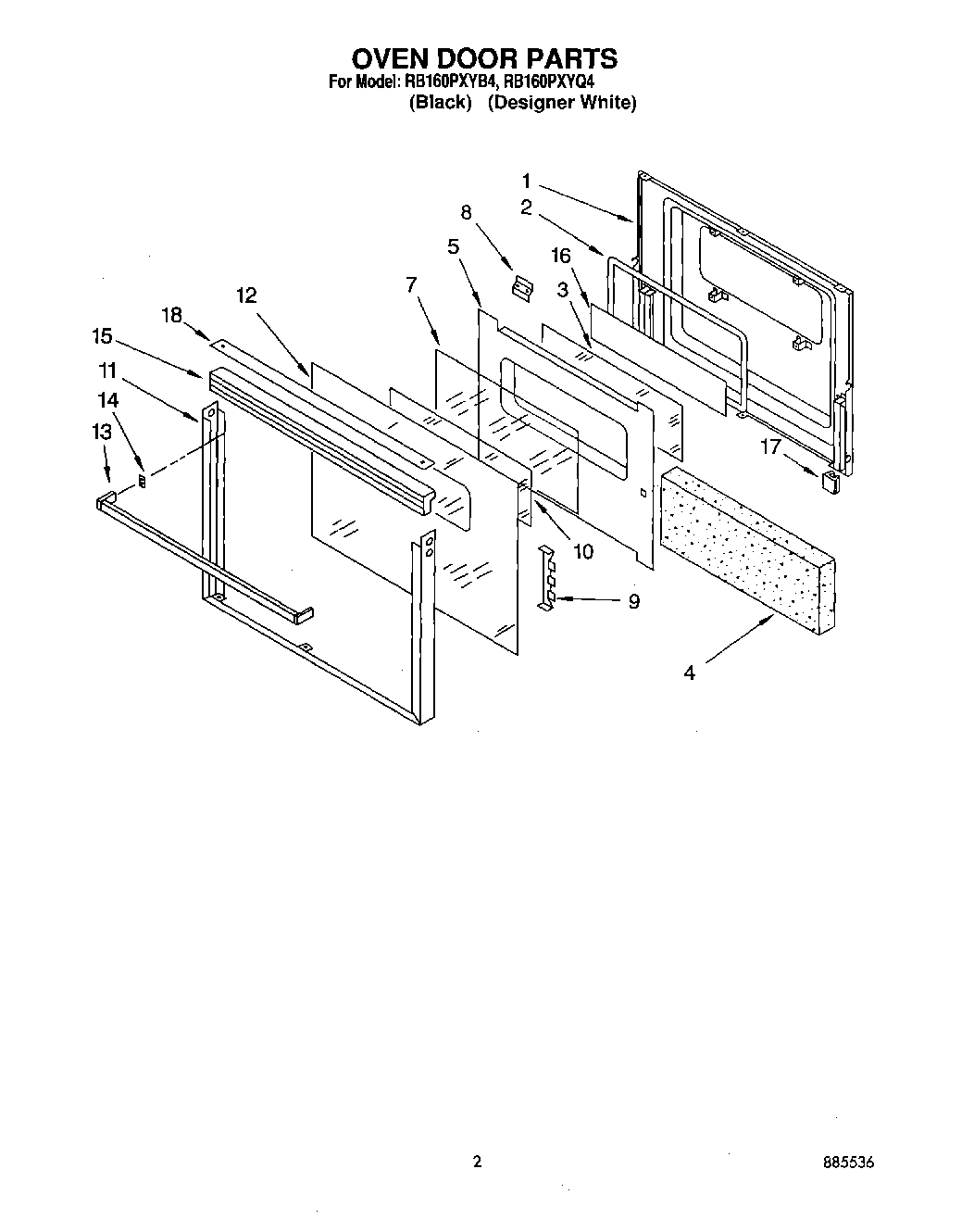

RB160PXYB4 02 – OVEN DOOR

RB160PXYB4 02 – OVEN DOOR

Written by

in

RB160PXYB4 02 – OVEN DOOR

Products

PositionProduct
1Liner, Door
1Screw (5)
1Screw, Black (2)
2Seal, Window
3Glass, Clear
4Insulation, Door
5Screw
5Retainer, Insulation
7Glass, Reflective
8Latch, Strike
9Retainer, Glass
10Glass, Clear
11Frame, Door
12Glass, Door (Black Model)
12Glass, Door (White Model)
13Handle, Door (White Model)
13Handle, Door (Black Model)
13WP355515 Whirlpool Screw
14Clip, Mtg (2)
15Trim, Top (White Model)
15Trim, Top (Black Model)
16Foil-Adhesive Backed
17Bumper, Door Glass
18Cap, Top (White Model)
