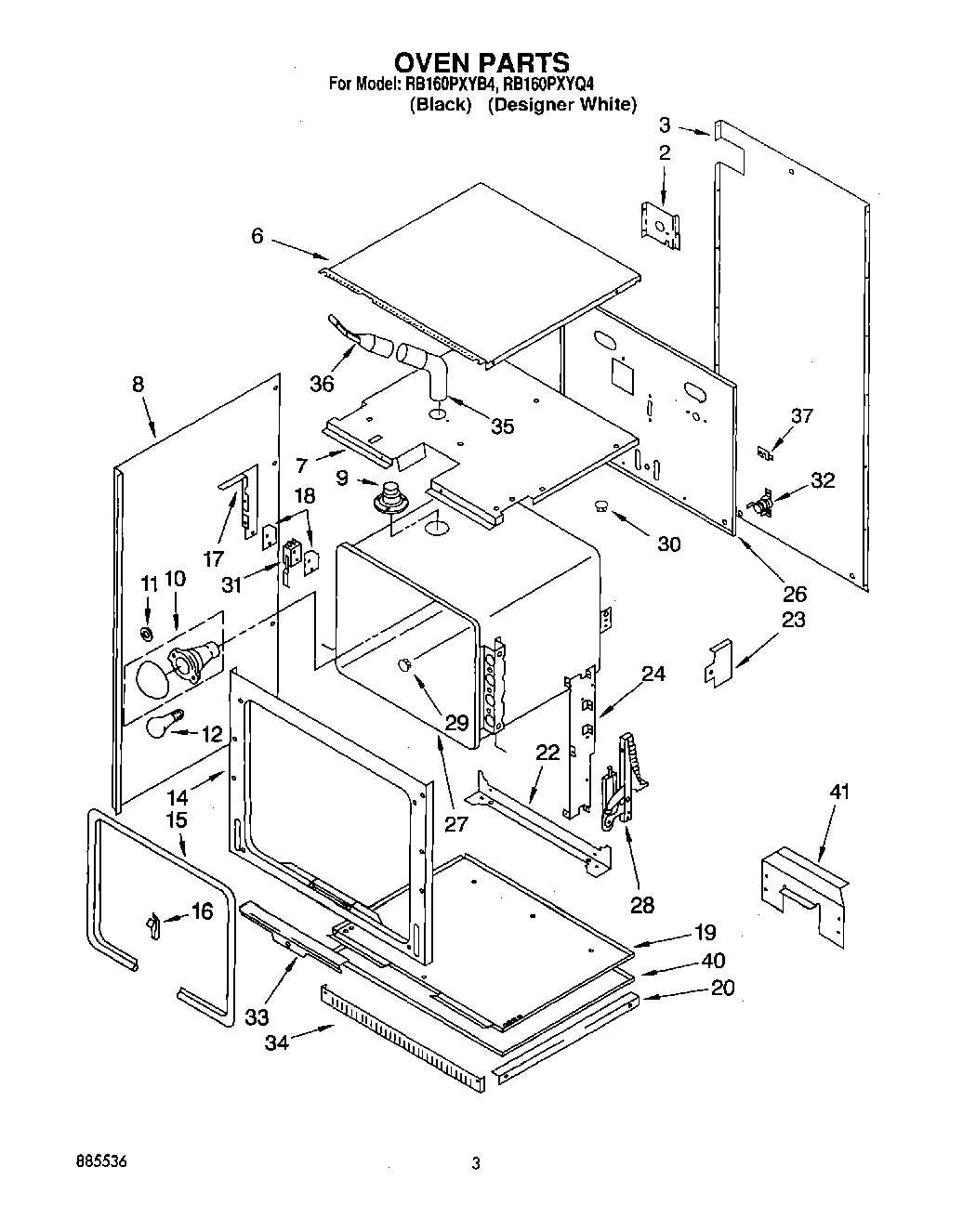

RB160PXYB4 03 – SECTION

Products

Position	Product
2	Bracket, Conduit
3	Cabinet, Back
6	Cabinet, Top
7	Module, Top
8	Side, Cabinet (R.H. & L.H.)
9	Tube, Vent
9	Screw (3)
10	W11594027 Whirlpool Range Oven Light Socket
11	WP3184533 Whirlpool Range Light Lens Gasket
12	RANGE ONLY 40W 120V APPL BULB
14	Screw (4)
14	Frame, Front
15	Seal, Door
16	Clip, Oven Seal
17	Bracket, Switch
18	Insulator, Switch
19	Bottom, Modual
20	Rail, Support (2)
22	Support, Oven
23	Shield, Radiation
24	Bracket, Hinge
26	Back, Module
27	Liner, Oven
28	Hinge, Door
28	Screw (6)
29	Button, Plug
30	Button, Plug
31	Screw (2)
31	Switch, Door
31	Nut (2)
32	Thermostat
33	Retainer, Seal
34	Vent, Lower Trim (White Model)
34	Vent, Lower Trim (Screw (2))
34	Vent, Lower Trim (Screw (4))
34	Trim, Lower Vent (Black Model)
35	Vent, Tube (Upper, Female)
36	Screw
36	Tube, Vent (Male)
37	Cover, Cap Tube
37	Screw
40	Bottom, Oven
41	WPL 3185550
41	WPL 3177870
41	WP3177991 Whirlpool Screw
41	WPL 3182584
