RB160PXYB4 05 – LATCH AND VENT

RB160PXYB4 05 – LATCH AND VENT

Written by

in

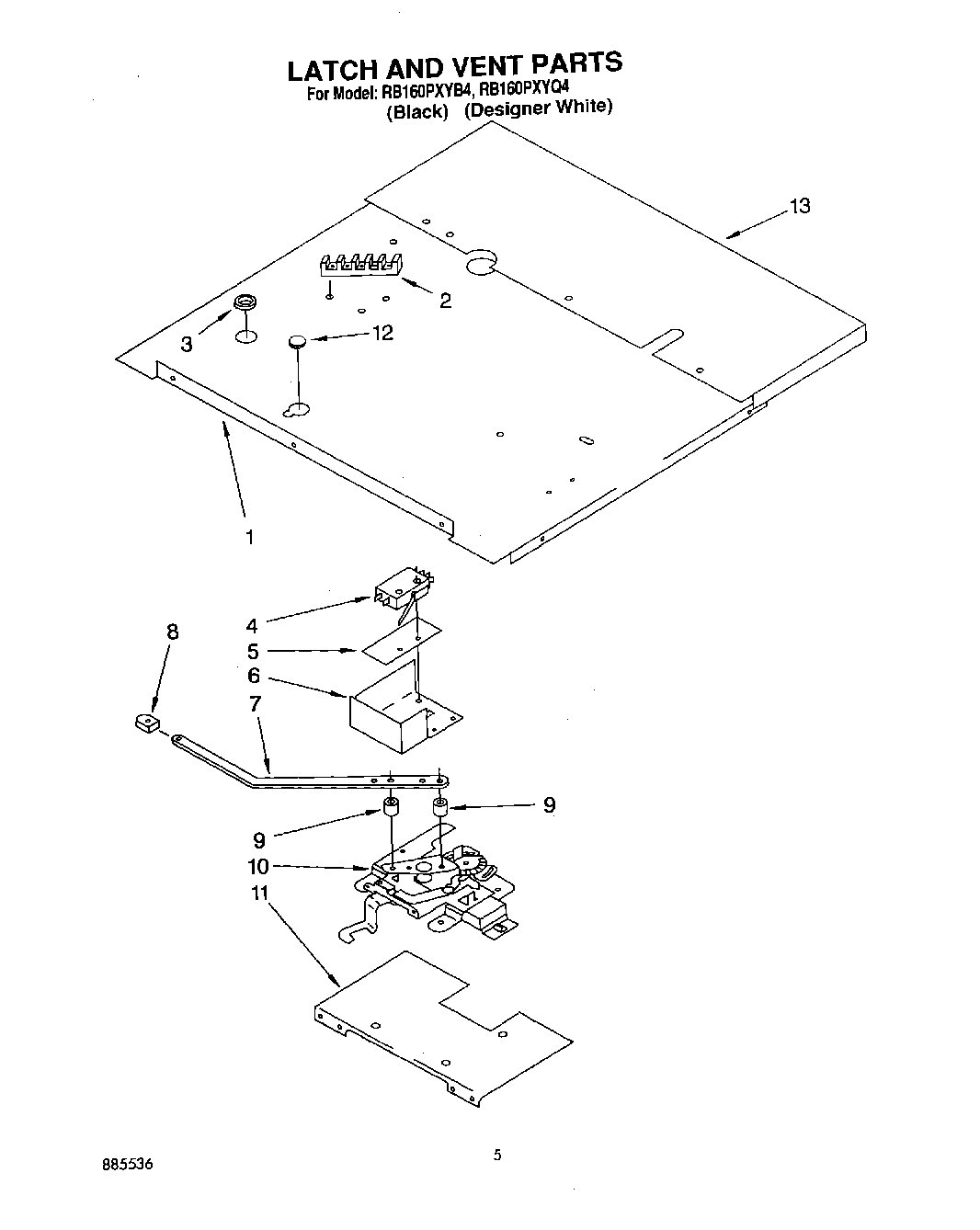

RB160PXYB4 05 – LATCH AND VENT

Products

Position	Product
1	Shelf, Component
2	Screw (10-12 x .875)
2	WP8203546 Whirlpool Terminal Block
3	Bushing
4	Safety Switch
4	Screw
5	Insulator, Switch
6	Guard, Latch
7	Handle, Latch
8	Knob, Latch Handle
8	Screw
9	Spacer, Latch Handle (2)
9	Screw (2)
10	Latch, Mechanism
11	Plate, Mounting
12	Plug, Button
13	Extension, Shelf
13	WP3177991 Whirlpool Screw
