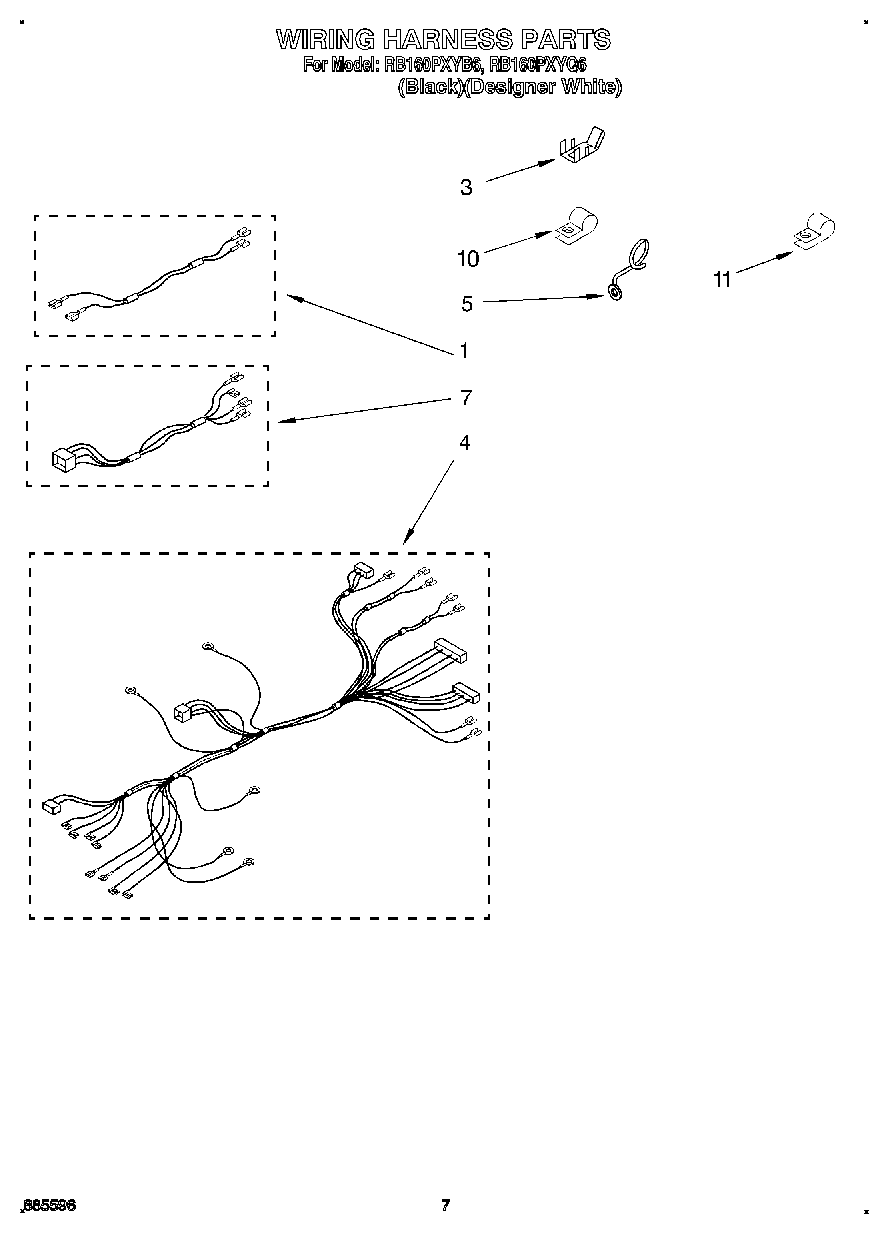

RB160PXYQ6 06 – WIRING HARNESS, LITERATURE/OPTIONAL

Products

Position	Product
	WPL LIT3186592
	Installation Instructions
	Use & Care Guide
1	Wiring Harness (Door Switch) (Upper)
3	W10113937 Whirlpool Clamp
3	Screw
4	Harness Wire (Upper Oven)
5	Standoff, Wire
5	WP112432 Whirlpool Nut Assembly
7	Screw
7	Wiring Harness (Latch Assembly)
10	WP308605 Whirlpool Refrigerator Clamp
11	1
11	Almond (Uncut)
11	242831 Whirlpool Oven Wire
11	WPL 591014
11	WP261869 Whirlpool Microwave Paint
11	Wire (14 Ga. 150 c Blue)
11	Wire (14 Ga. 150 c Brown)
11	Wire (14 Ga. 150 c Green)
11	Wire (14 Ga. 150 c Orange)
11	Wire (14 Ga. 150 c Yellow)
11	WPL 350806
11	18 Ga. 80~c Rating (Red)
11	Wire (14 Ga. 200 c Brown)
11	Wire (12 Ga. 150 c Black)
11	WP482338 Whirlpool Refrigerator Adhesive
11	72032 Whirlpool Touch Up Paint Black
11	Golden Harvest (Uncut)
11	Golden Harvest
11	72113 Whirlpool Touch-Up Paint
11	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
11	488946 Whirlpool Air Conditioner Clamp
11	Leveler (Thinner)
11	WP72107 Whirlpool Touchup
11	799344 Whirlpool Refrigerator Paint
11	72017 Whirlpool Appliance Touch-Up Paint White
11	350956 Whirlpool Spray Assembly
11	Toast
11	Paint, Spray (13 Oz.) (Platinum)
11	285006 Whirlpool Spray
11	Wire, 25“ Roll (White 14 GA.)
11	Wire, 25` Roll (Red 14 Ga.)
11	Wire, 25` Roll (Black 14 Ga.)
11	WPL 799832
11	WP488729 Whirlpool Refrigerator Door Screw
11	350942 Whirlpool Spray Paint
11	WPL 72112
11	Platinum (Uncut)
11	Enamal, Toast (1 Qt. Uncut)
11	350930 Whirlpool White Spray Paint
