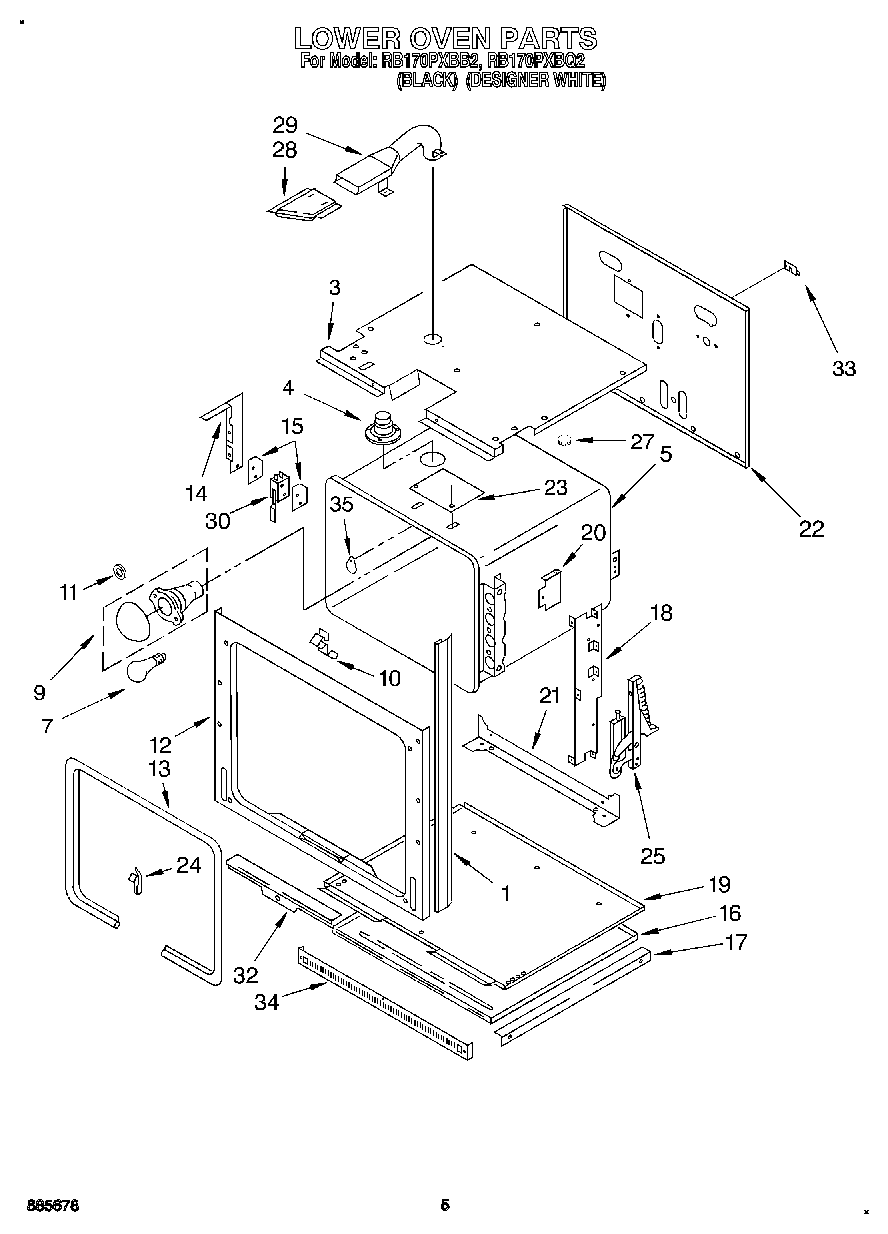

RB170PXBB2 03 – LOWER OVEN

Products

Position	Product
1	Side Trim, Door (2) (White Model)
1	Trim, Door Side (2) (Black Model)
3	Module, Top
4	Eliminator, Smoke
5	Liner, Oven
7	RANGE ONLY 40W 120V APPL BULB
9	W11594027 Whirlpool Range Oven Light Socket
10	98005642 Whirlpool Clip
11	WP3184533 Whirlpool Range Light Lens Gasket
12	Frame, Door
13	Seal, Door
14	WP3177991 Whirlpool Screw
14	Bracket, Switch
15	Insulator, Switch
16	Bottom, Oven
17	Rail, Support (2)
18	Bracket, Hinge
19	Bottom, Modual
20	Shield, Radiation
21	Support, Oven
22	Back, Module
23	Cover, Latch Mtg.
24	Clip, Oven Seal
25	Screw (6)
25	Hinge, Door
27	Button, Plug
28	Tube, Vent (Female)
28	Tube, Vent Female
29	Tube, Vent Male
30	Nut (2)
30	Screw (2)
30	Screw
30	Switch, Door
32	Retainer, Seal
32	Vent, Lower Trim (Screw (2))
33	Cover, Cap Tube
33	Screw
34	Trim, Lower Vent (Black Model)
34	Trim, Lower Vent (White Model)
35	Screw (2)
35	Plate, Cover
