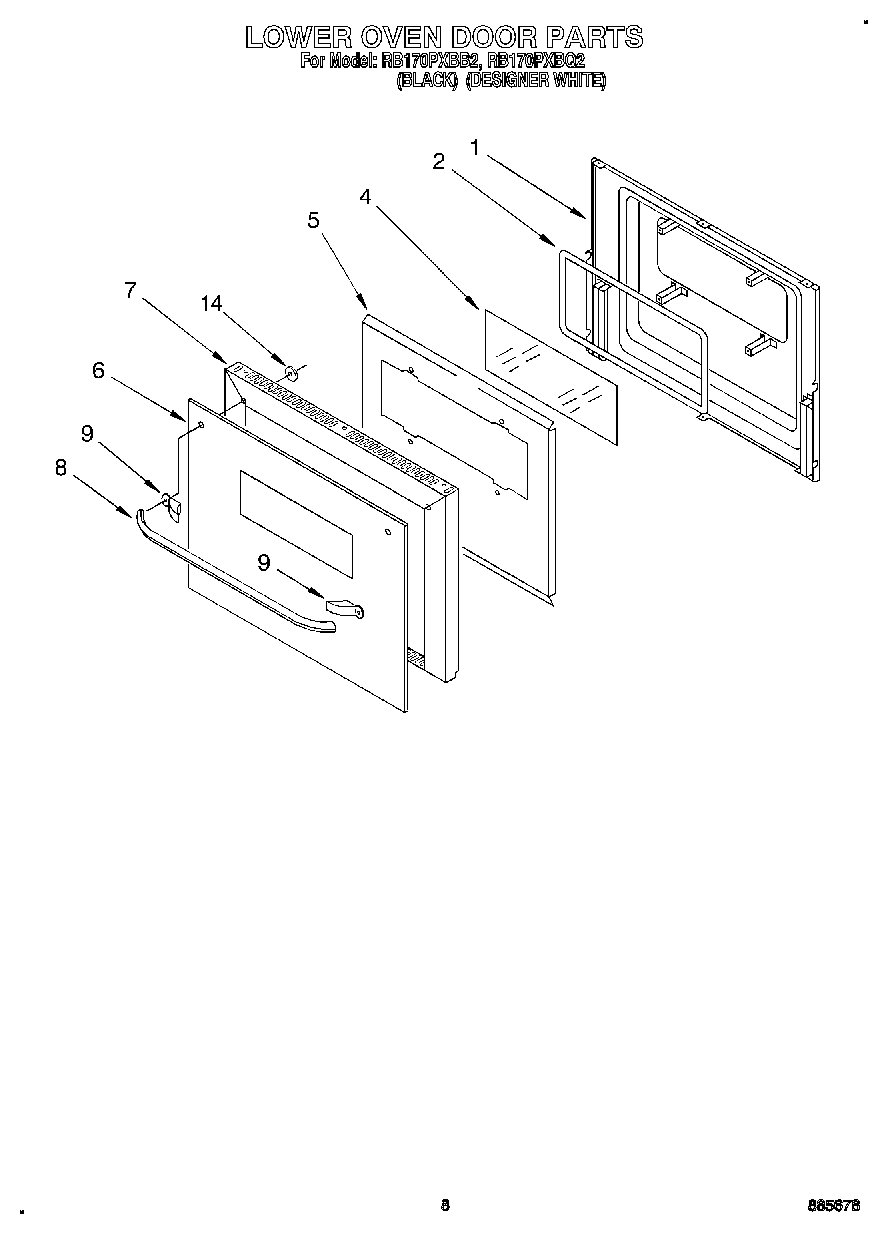

RB170PXBB2 05 – LOWER OVEN DOORadmin2025-04-26T11:39:51+00:00RB170PXBB2 05 – LOWER OVEN DOOR
Products
| Position | Product |
|---|
| 1 | Liner, Door |
| 1 | Screw, Black (2) |
| 2 | Seal, Window |
| 4 | Glass, Clear |
| 5 | Vent, Lower Trim (Screw (2)) |
| 5 | Retainer, Insulation |
| 6 | Glass, Door (White Model) |
| 6 | Glass, Door (Black Model) |
| 7 | Frame, Door (White Model) |
| 7 | Frame, Door (Black Model) |
| 8 | Handle, Door (White Model) |
| 8 | Handle, Door (Black Model) |
| 9 | Spacer (White Model) |
| 9 | Spacer (Black Model) |
| 14 | Screw |
| 14 | Bushing, Door Handle |
| 14 | Screw (2) |
