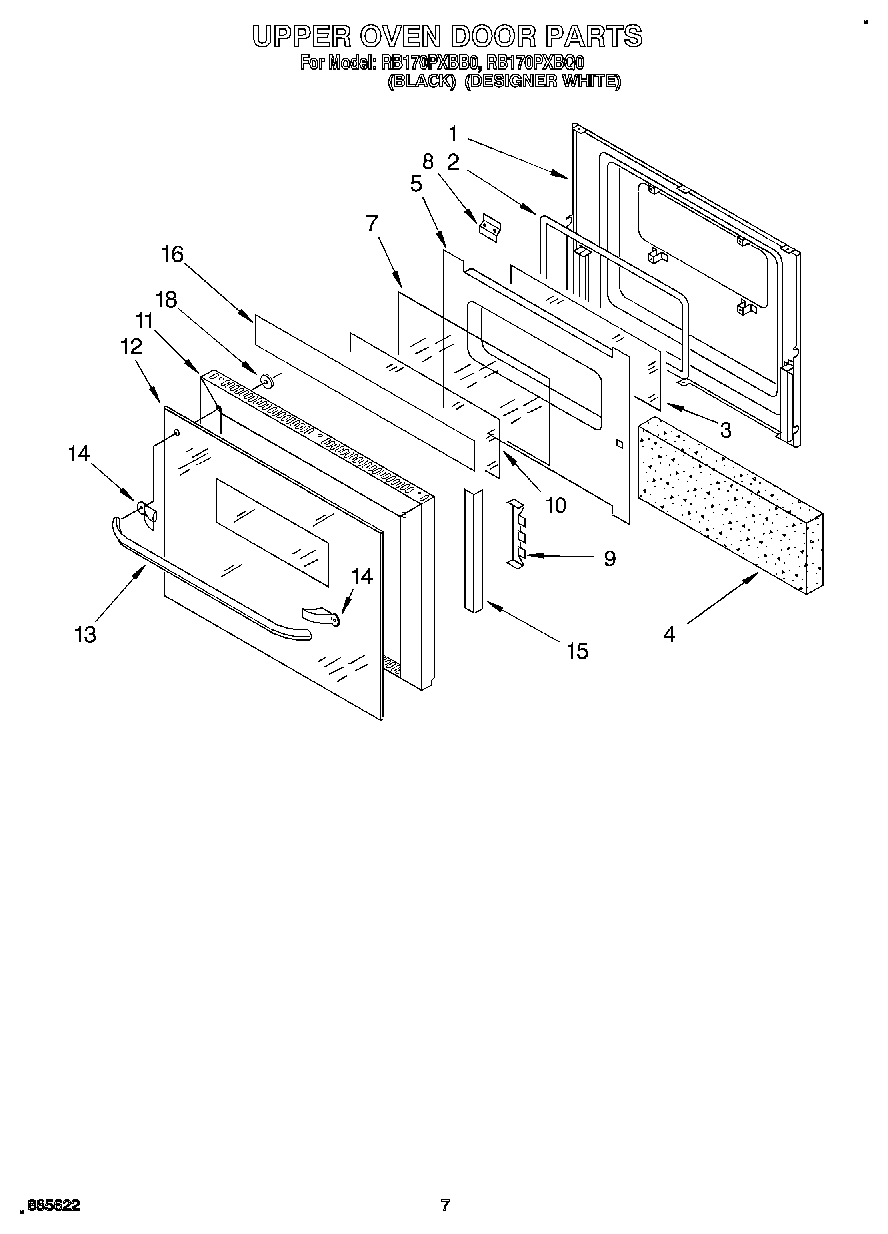

RB170PXBQ0 04 – UPPER OVEN DOOR

Products

Position	Product
1	Liner, Door
1	Screw, Black (2)
2	Seal, Window
3	Glass, Clear
4	Insulation, Door
5	Retainer, Insulation
7	Glass, Reflective
8	Latch, Strike
9	Retainer, Glass
10	Screw
10	Glass, Clear
11	Frame, Door (White Model)
11	Frame, Door (Black Model)
12	Glass, Door (White Model)
12	Glass, Door (Black Model)
13	Vent, Lower Trim (Screw (2))
13	Handle, Door (White Model)
13	Handle, Door (Black Model)
14	Spacer (Black Model)
14	Spacer (White Model)
15	Foil-Adhesive
16	Foil-Adhesive
18	Bushing, Door Handle
