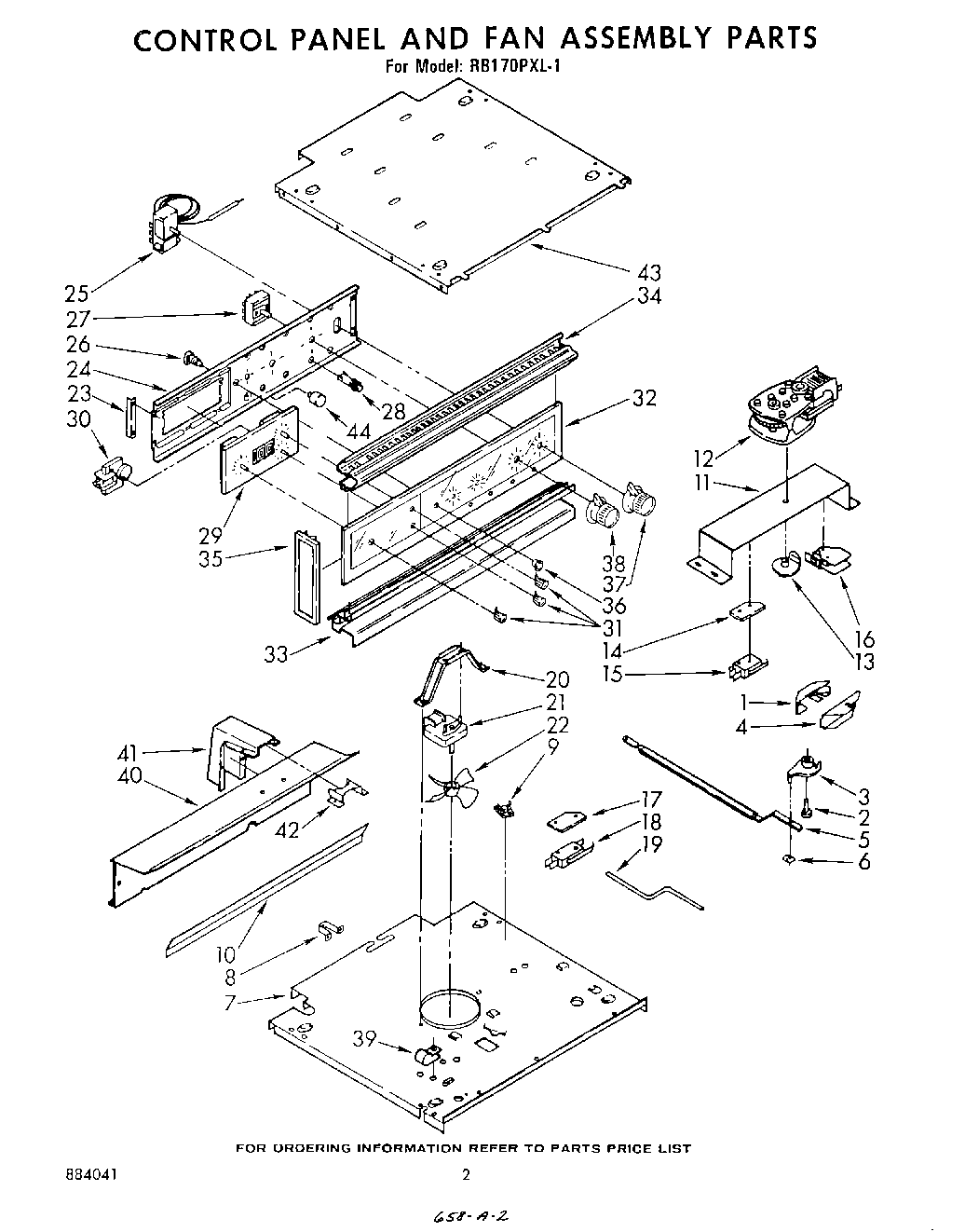

RB170PXL1 02 – CONTROL PANEL AND FAN

Products

Position	Product
1	Housing, Latch
1	Washer (2)
2	Axle, Latch
3	alternate
3	Latch, Door
4	Pushnut, 1/4
4	Cover, Latch Housing
5	Tie Bar
7	Casing, Fan
8	Washer (3)
8	Spacer, Fan Casing
9	Thermal Protector
9	WP486754 Whirlpool Compactor Screw
10	Shield, Control Panel
11	Support, Latch Motor
12	Motor (Alternate)
12	Motor (Alternate)
12	motor, door latch (alternate)
13	Cam, Door Latch (Alternate)
13	cam, door latch (alternate)
13	Cam, Door Latch (Pin, Spring)
13	Cam, Door Latch (Pushnut, 3/16“)
14	Insulator, Limit Switch (3)
15	Switch, Lower Limit (2) (Alternate)
15	Switch, Lower Limit (Alternate)
15	Switch, Lower Limit (2) (Screw, 4-40 x 5/8 (2))
15	Switch, Lower Limit (2) (Alternate)
15	Switch, Lower Limit (2) (Alternate)
16	Switch, Upper Limit (Alternate)
16	Switch, Upper Limit (Alternate)
16	Switch, Upper Limit (Alternate)
16	Switch, Upper Limit (Screw, 4-40 x 1-1/4 (2))
16	Switch, Upper Limit (Alternate)
17	Insulator, Switch
18	Screw (2)
18	Switch, Limit
19	Rod Switch Interlock
20	Bracket, Fan Motor
21	Motor, Fan (A
21	Motor, Fan (Alternate)
21	WPL 877615
21	Nut
22	WPL 868990
23	WPL 866395
24	WPL 868402
25	WPL 868404
25	WPL 868808
25	WPL 487428
26	WPL 866138
26	WPL 98754
27	WPL 877852
27	WPL 486525
27	WPL 868991
28	WPL 868433
28	WPL 868172
29	WPL 868992
29	Hex Nut, 10-32 (6)
30	WPL 866403
31	WPL 241383
32	WPL 877510
32	WPL 866454
33	WPL 868531
34	WPL 877551
34	WPL 595119
35	WPL 868996
35	Screw 10-24 x 1/2
35	WPL 868995
36	WPL 866053
37	WPL 868997
38	WPL 868998
39	WPL 865797
39	WPL 273225
40	WPL 866411
41	WPL 866412
42	WPL 868222
43	WPL 868102
43	Screw, 10-24 x 1/2 (3)
44	WPL 834956
