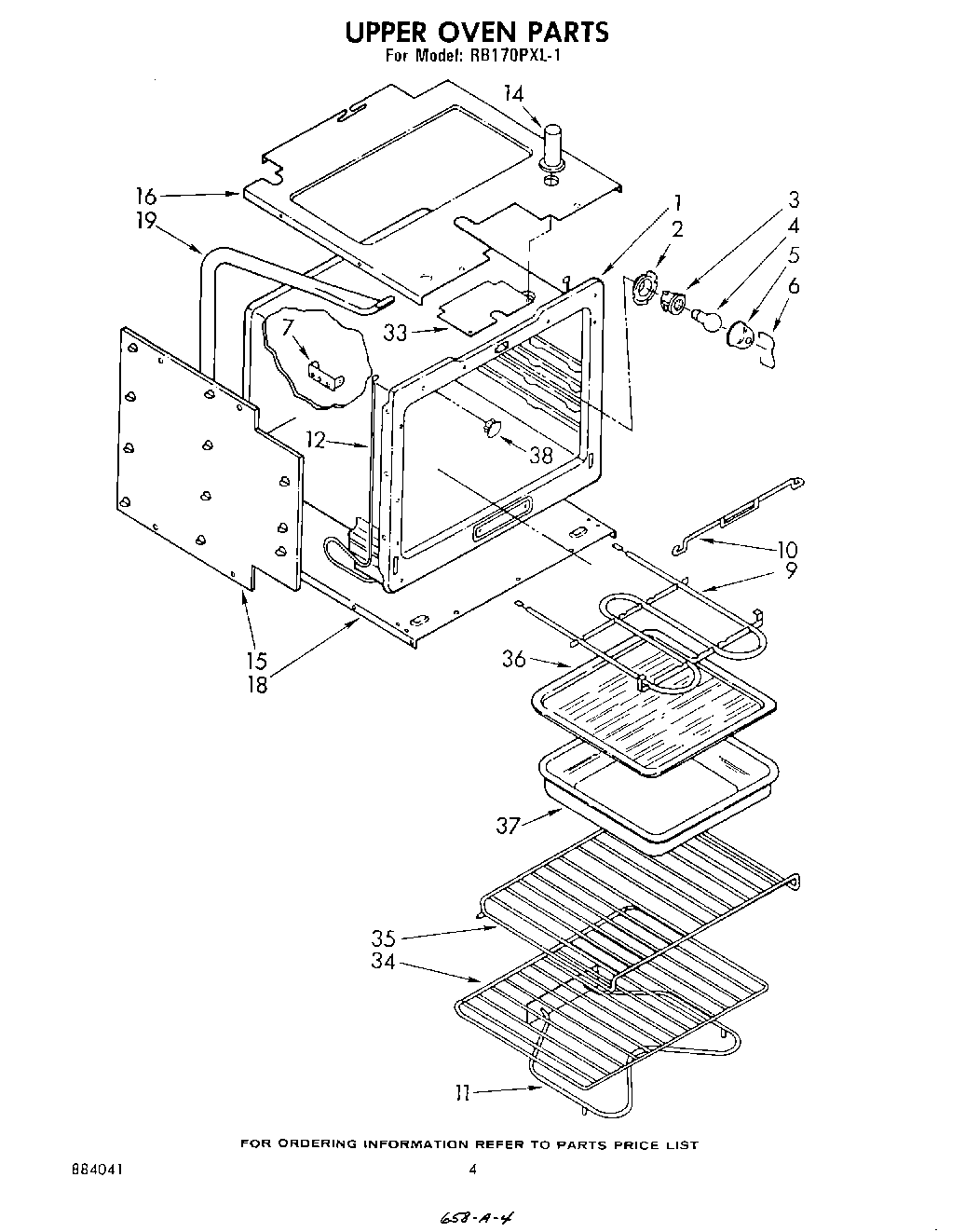

RB170PXL1 03 – UPPER OVEN

Products

Position	Product
1	Oven (27“ Pyro)
2	Cup, Light
3	W10856866 Whirlpool Light Socket
4	RANGE ONLY 40W 120V APPL BULB
5	Lens, Light
6	Retainer, Lens
7	Bracket, Thermo Bulb
9	Unit, Broil
10	Hanger, Broil Unit
11	WP866375 Whirlpool Range Bake Element
11	Unit Bake (Screw, 10-24 x 1/2 (2))
12	Heater, Mullion
14	vent tube (alternate)
14	Screw, 10-24 x 3/8 (2)
14	vent tube (alternate)
15	Retainer, Insulation Side (2)
16	Retainer, Insulation Top
18	Partition Oven
19	Tube, Oven Vent
33	Cover, Access
33	Screw, 10-24 x 1/2 (3)
34	Rack, Oven Regular
35	Rack, Oven (Offset)
36	4396923 Whirlpool Broil Pan Set Gray Porcelain
37	Pan, Broiler
38	Plug, Button
