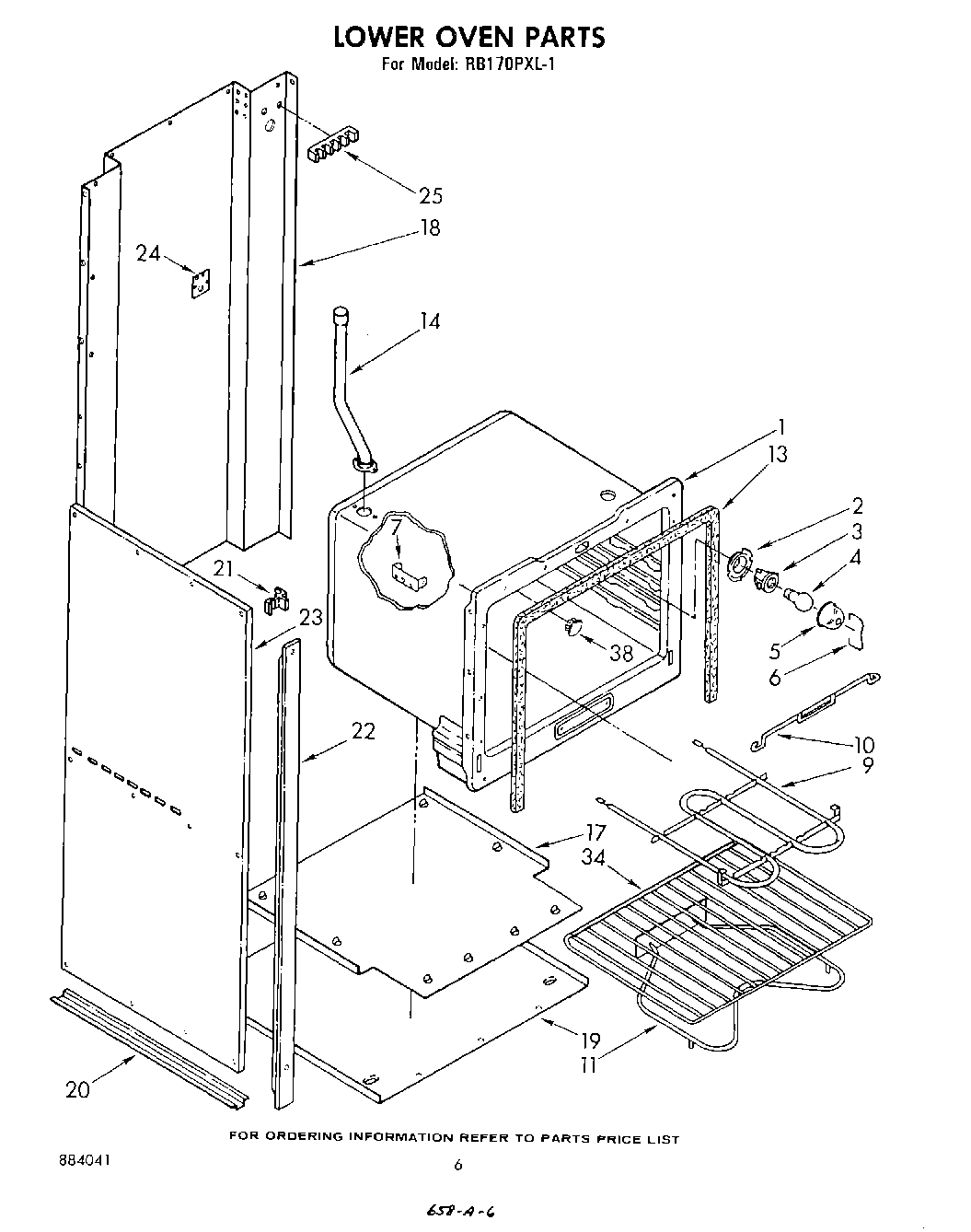

RB170PXL1 04 – LOWER OVEN, LITERATURE AND OPTIONAL

Products

Position	Product
1	Oven (27“ C.C.)
2	Cup, Light
3	W10856866 Whirlpool Light Socket
4	RANGE ONLY 40W 120V APPL BULB
5	Lens, Light
6	Retainer, Lens
7	Bracket, Thermo Bulb
9	Unit, Broil
10	Hanger, Broil Unit
11	WP866375 Whirlpool Range Bake Element
13	Alternate
13	Gasket, Oven Door
14	Unit Bake (Screw, 10-24 x 1/2 (2))
14	Vent Tube
17	Retainer, Insulation Bottom
18	Casing, Back
19	Casing, Bottom
20	Support, Bottom Casing (2)
21	Spacer Trim (4)
22	Trim, Oven Front (2)
23	Screw, 10-24 x 1/2 (3)
23	Casing, Side (2)
24	Plate, Conduit
25	Hex Nut, 10-32 (6)
25	Screw,10-24 x 1/2
25	WPL 834649
25	WP8203546 Whirlpool Terminal Block
34	Rack, Oven Regular
38	FOIL, ALUMINUM OVEN (18“ X 25 )
38	WPW10208653 Whirlpool Insulation
38	WPL 877798
38	WPL 884041
38	Touch-Up Oven (1 Oz.)
38	Wire, 25“ Roll (White 14 GA.)
38	Wire, 25` Roll (Red 14 Ga.)
38	Wire, 25` Roll (Black 14 Ga.)
38	242831 Whirlpool Oven Wire
38	Wire (14 Ga. 150 c Blue)
38	Wire (14 Ga. 150 c Brown)
38	WPL 308500
38	1
38	Plug, Button
38	WPL 866338
38	Wire (14 Ga. 200 c Brown)
38	18 Ga. 80~c Rating (Red)
38	Grease
38	Wire (12 Ga. 150 c Black)
38	Wire (14 Ga. 150 c Yellow)
38	Wire (14 Ga. 150 c Orange)
38	Wire (14 Ga. 150 c Green)
38	WPL 877793
