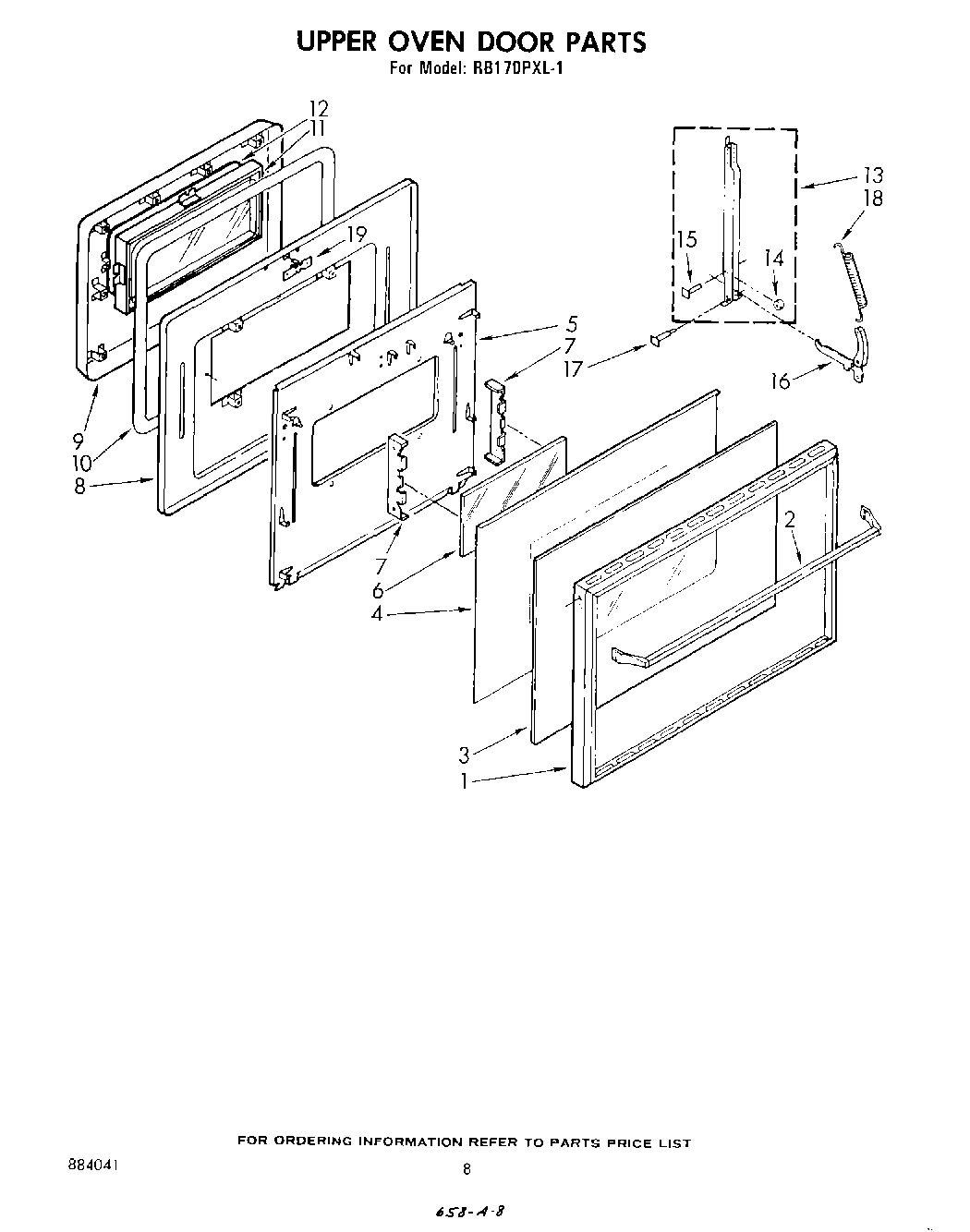

RB170PXL1 05 – UPPER OVEN DOOR

Products

Position	Product
1	Frame, Oven Door
2	Screw, 6-32 x 3/8 (4)
2	Handle, Oven Door (Includes 866047 End Caps)
2	Nut
3	Glass, Outer
4	Panel, Heat Reflector
5	340184 Whirlpool Screw
5	Panel, Air Wash
6	Glass, Inner
7	Retainer, Glass
8	Liner, Oven Door
9	Plug Button 3/16`` (2)
9	Baffle, Weldment
10	Seal, Oven Door
11	Window Assembly
11	Screw, 10-24 x 1/2 (3)
12	Seal, Window
13	Channel Assembly
14	Roller, Stop (2)
15	Rivet (2)
16	Arm Assembly (2)
17	Pin, Hinge (2)
18	Screw
18	Spring, Door (2)
19	Strike
19	Screw 10-24 x 1/2
19	Washer (2)
