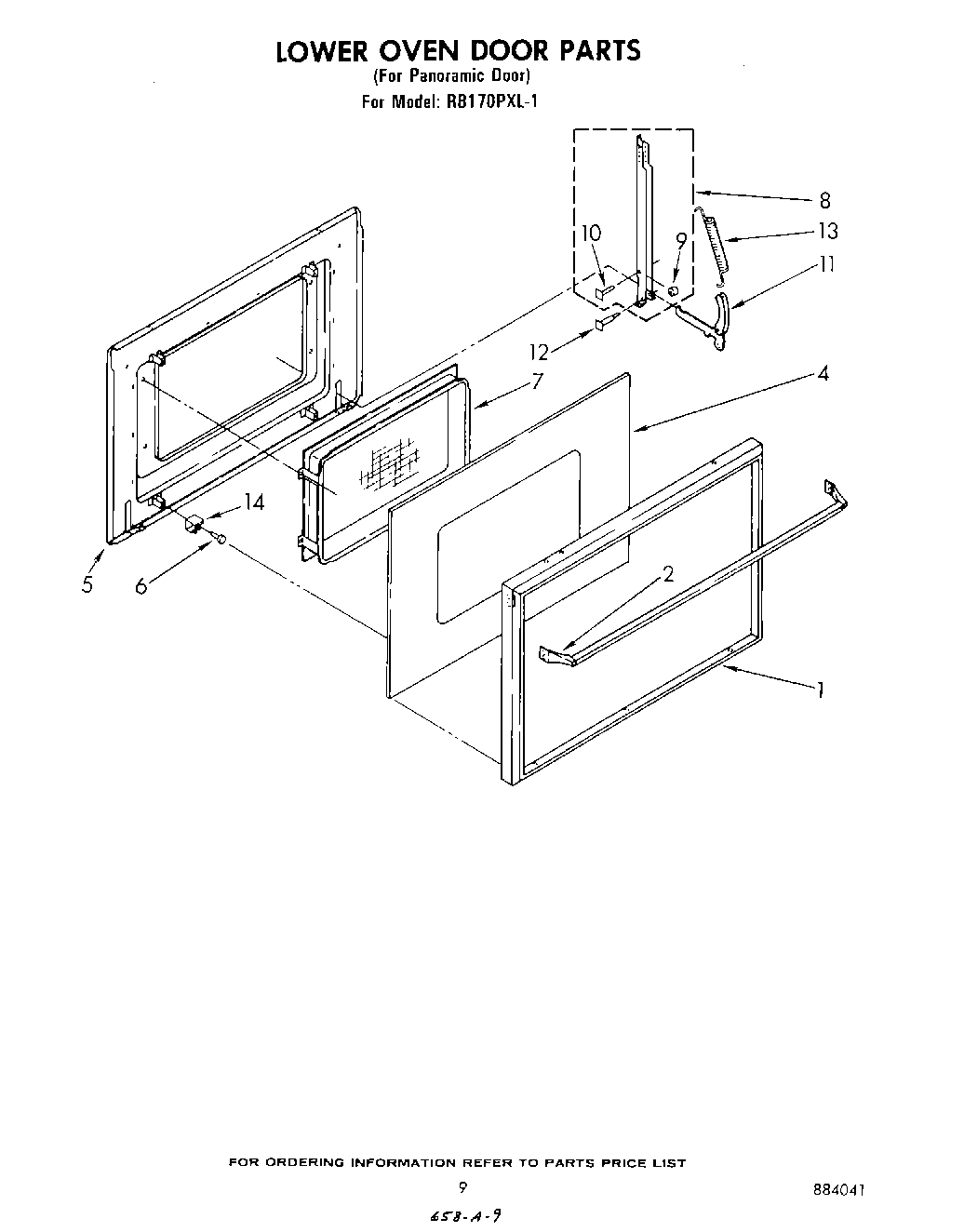

RB170PXL1 06 – LOWER OVEN DOORadmin2025-04-26T11:40:37+00:00RB170PXL1 06 – LOWER OVEN DOOR
Products
| Position | Product |
|---|
| 1 | Frame, Oven Door |
| 2 | Handle, Oven Door (Includes 866047 End Caps) |
| 2 | Screw, 6-32 x 3/8 (4) |
| 2 | Nut |
| 4 | Glass, Outer |
| 5 | Liner, Oven Door |
| 5 | Washer (4) |
| 5 | Screw, 10-24 x 3/4 (4) |
| 6 | Bumper (4) |
| 7 | Window |
| 8 | Screw |
| 8 | Screw 10-24 x 1/2 |
| 8 | Channel Assembly |
| 8 | Washer (2) |
| 9 | Roller, Stop (2) |
| 10 | Rivet (2) |
| 11 | Arm Assembly (2) |
| 12 | Pin, Hinge (2) |
| 13 | Spring, Door (2) |
| 14 | Spacer, Door (4) |
