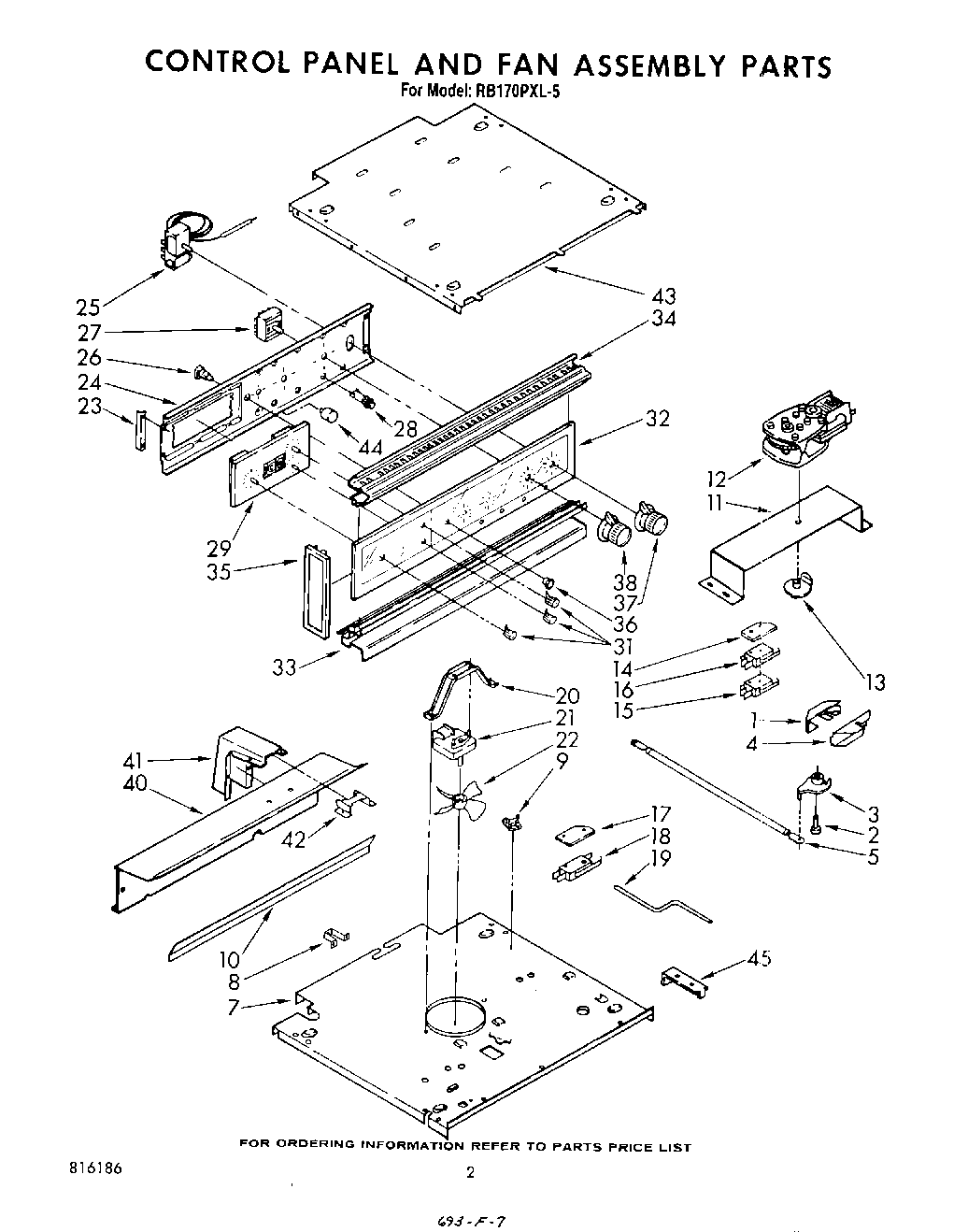

RB170PXL5 02 – CONTROL PANEL AND FAN

Products

Position	Product
1	Housing, Latch
1	Washer
2	Pin, Hinge (2)
3	Latch, Door
4	Pushnut, 1/4
4	Cover, Latch Housing
5	Tie Bar
7	Casing, Fan
8	Washer (3)
8	Spacer, Fan Casing
9	Thermal Protector
9	WPL 877978
10	Shield, Control Panel
11	Support, Latch Motor
12	Motor
13	Cam, Door Latch
13	Pin, Spring
14	Insulator, Limit Switch (3)
15	Switch, Lower Limit (2) (Alternate)
15	Switch, Lower Limit (Alternate)
16	Switch, Upper Limit (Alternate)
16	Switch, Upper Limit (Screw, 4-40 x 1-1/4 (2))
16	Switch, Upper Limit (Alternate)
17	Insulator, Switch
18	Screw (2)
18	Switch, Limit
18	Switch, Door (Alternate)
19	Rod Switch Interlock
20	Bracket, Fan Motor
21	Motor, Fan (A
21	Nut
22	WPL 866392
22	WPL 868990
23	WPL 866395
24	WPL 877886
25	Alternate
25	Alternate
25	WPL 816061
25	Screw, 6-32 x 1/4 (2)
26	WPL 98754
26	WPL 866138
27	Screw, 8-32 x 3/16 (2)
27	WPL 877857
27	WPL 816059
28	WPL 868172
28	WPL 868433
28	WPL 877881
29	WPL 816060
29	Hex Nut, 10-32 (6)
31	WP3169181 Whirlpool Knob
32	WPL 866454
32	WPL 816071
33	WPL 816063
34	WPL 816064
34	WPL 816065
35	Screw 10-24 x 1/2
35	WPL 868996
35	WPL 868995
36	WPL 866053
37	WPL 868997
38	WPL 868998
40	WPL 866411
41	WPL 866412
42	WPL 868222
43	WPL 868102
43	Screw, 10-24 x 1/2 (3)
44	WPL 834956
45	WPL 868799
