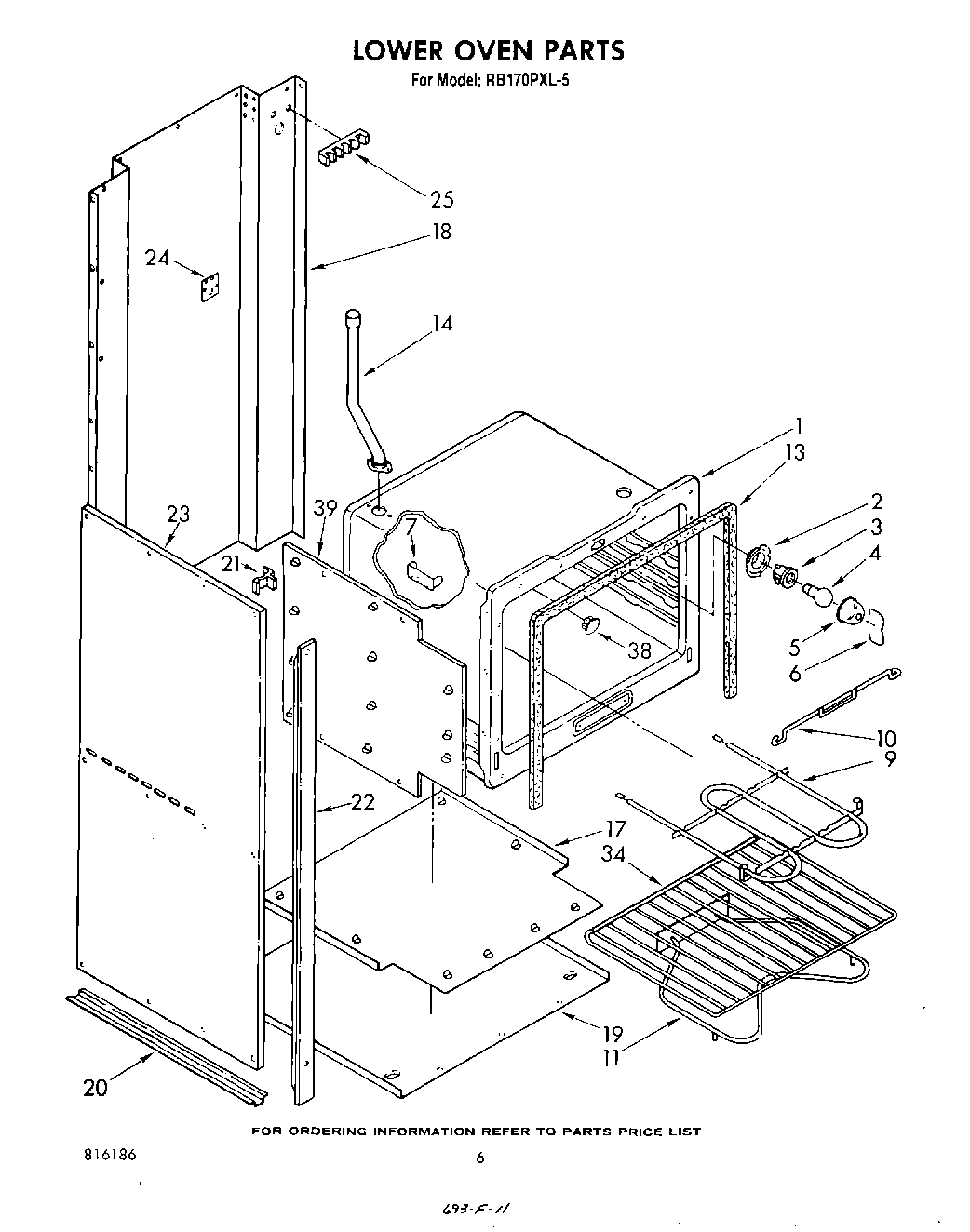

RB170PXL5 04 – LOWER OVEN , LITERATURE AND OPTIONAL

Products

Position	Product
	WPL LIT816028
	WPL LIT816018
	WPL LIT816186
	WPL LIT877952
	WPL LIT866338
1	Oven (27“ C.C.)
2	Cap, End (Right Side)
3	W10856866 Whirlpool Light Socket
4	RANGE ONLY 40W 120V APPL BULB
5	Lens, Light
6	Retainer, Lens
7	Bracket, Thermo Bulb
9	Unit, Broiler (208V)
9	Unit, Broil
10	Hanger, Broil Unit
11	WP866375 Whirlpool Range Bake Element
11	Unit, Bake (Alternate (208V))
13	Alternate
13	Gasket, Oven Door
14	Vent Tube
17	Retainer, Insulation Bottom
18	Casing, Back
19	Casing, Bottom
20	Support, Bottom Casing (2)
21	Spacer Trim (4)
22	Trim, Oven Front (2)
23	Casing, Side (2)
23	Screw, 10-24 x 1/2 (3)
24	Plate, Conduit
25	Screw,10-24 x 1/2
25	WP8203546 Whirlpool Terminal Block
25	Hex Nut, 10-32 (6)
25	WPL 834649
34	Rack, Oven Regular
38	Plug, Button
39	Wire (14 Ga. 150 c Brown)
39	Wire (14 Ga. 200 c Brown)
39	18 Ga. 80~c Rating (Red)
39	1
39	Wire (12 Ga. 150 c Black)
39	Wire (14 Ga. 150 c Yellow)
39	FOIL, ALUMINUM OVEN (18“ X 25 )
39	WPW10208653 Whirlpool Insulation
39	Touch-Up Oven (1 Oz.)
39	Wire, 25` Roll (Black 14 Ga.)
39	Grease
39	242831 Whirlpool Oven Wire
39	Wire, 25` Roll (Red 14 Ga.)
39	Wire (14 Ga. 150 c Green)
39	Wire (14 Ga. 150 c Blue)
39	Wire (14 Ga. 150 c Orange)
39	Retainer, Insulation Side (2)
39	Wire, 25“ Roll (White 14 GA.)
