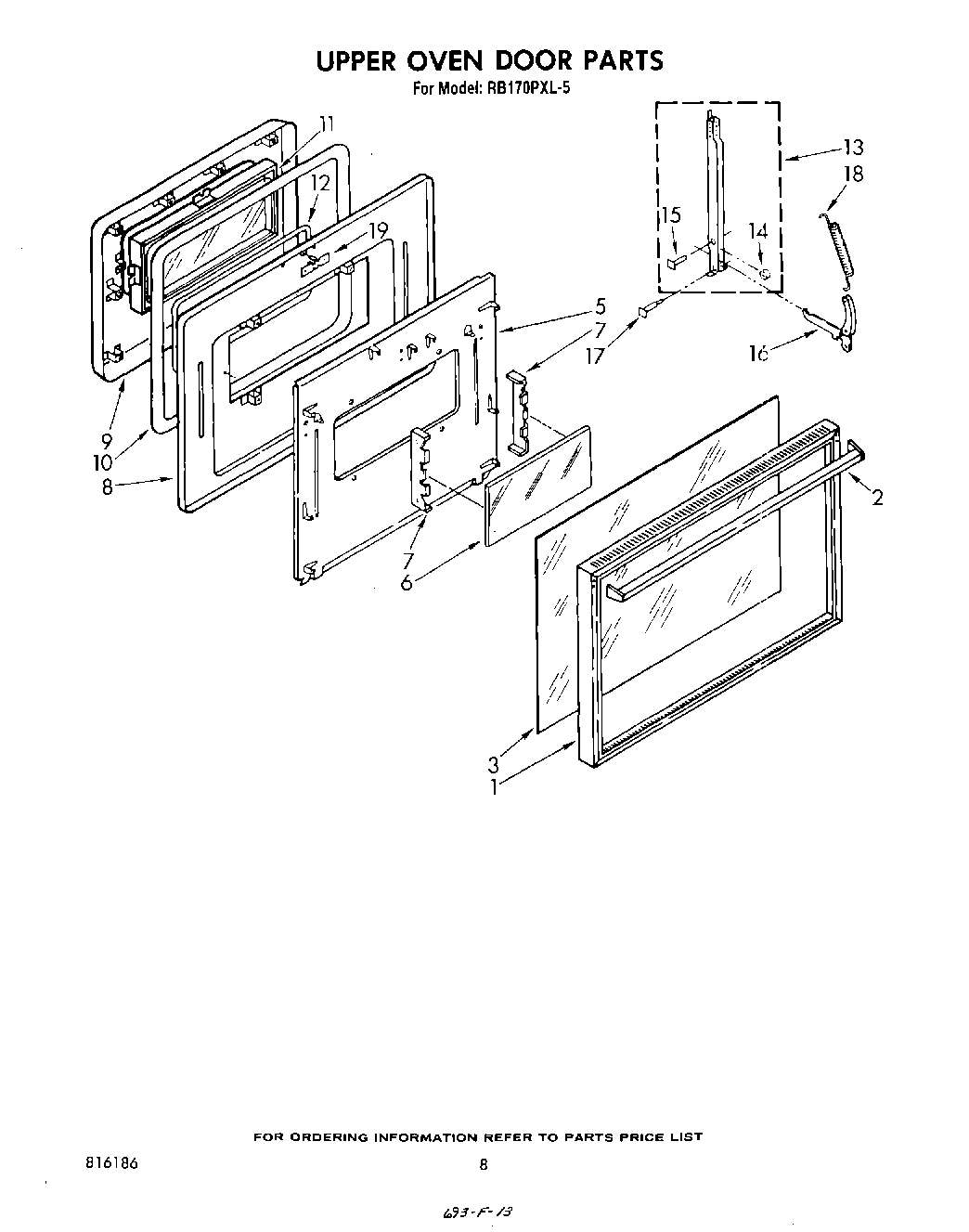

RB170PXL5 05 – UPPER OVEN DOORadmin2025-04-26T11:42:03+00:00RB170PXL5 05 – UPPER OVEN DOOR
Products
| Position | Product |
|---|
| 1 | Frame, Oven Door |
| 2 | Screw, 6-32 x 1/2 (4) |
| 2 | Handle, Oven Door |
| 3 | Glass, Outer |
| 5 | Panel, Air Wash |
| 5 | 340184 Whirlpool Screw |
| 6 | Glass, Inner |
| 7 | Retainer, Glass |
| 8 | Liner, Oven Door |
| 9 | Baffle, Weldment |
| 9 | Plug Button 3/16`` (2) |
| 10 | Seal, Oven Door |
| 11 | Window Assembly |
| 11 | Screw, 10-24 x 1/2 (3) |
| 12 | Seal, Window |
| 13 | Channel Assembly |
| 14 | Roller, Stop (2) |
| 15 | Rivet (2) |
| 16 | Arm Assembly (2) |
| 17 | Pin, Hinge (2) |
| 18 | Spring, Door (2) |
| 19 | Washer |
| 19 | Strike |
| 19 | Screw 10-24 x 1/2 |
