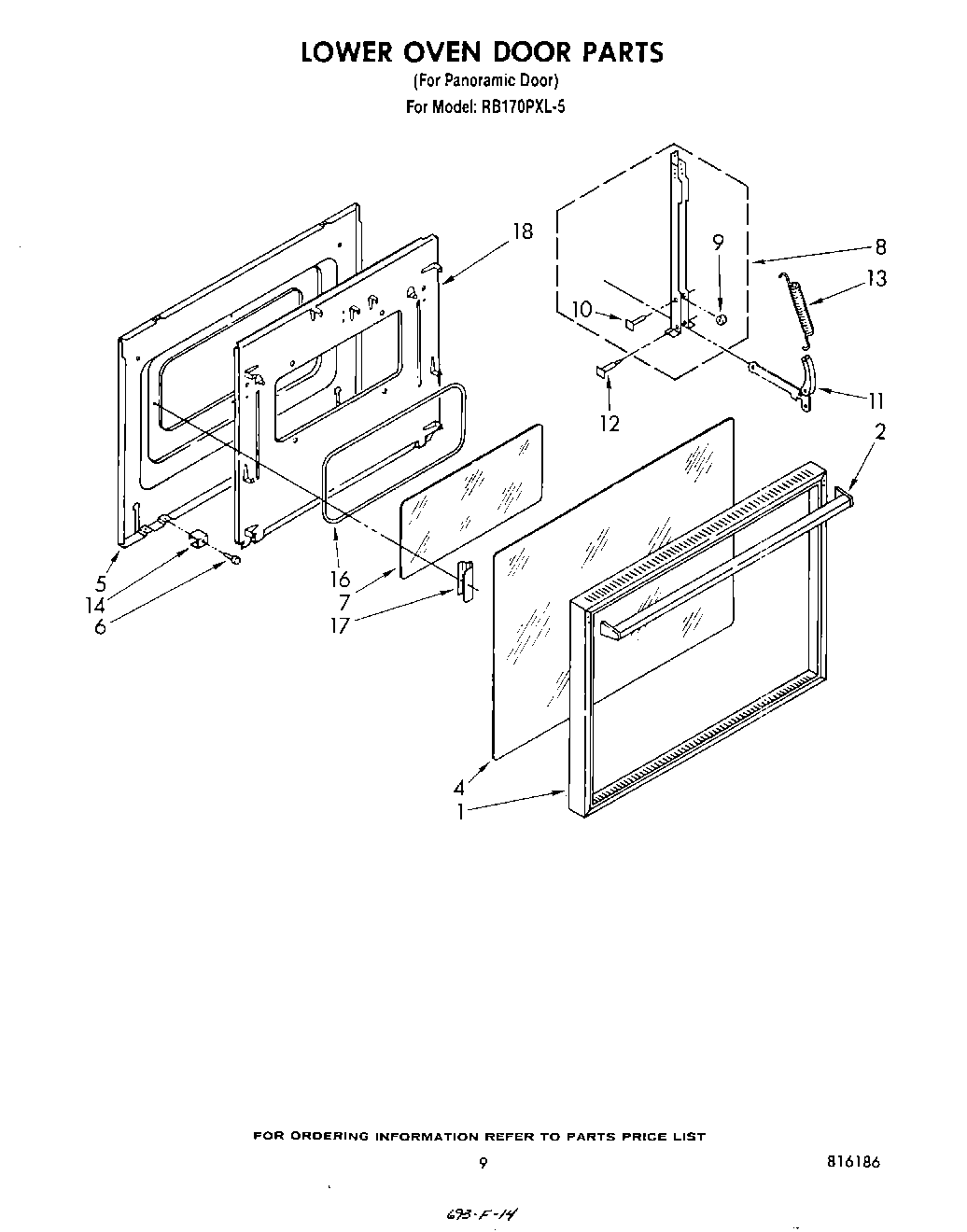

RB170PXL5 06 – LOWER OVEN DOORadmin2025-04-26T11:42:14+00:00RB170PXL5 06 – LOWER OVEN DOOR
Products
| Position | Product |
|---|
| 1 | Frame, Oven Door |
| 2 | Screw, 6-32 x 1/2 (4) |
| 2 | Handle, Oven Door |
| 4 | Glass, Outer |
| 5 | Liner, Oven Door |
| 6 | Bumper (4) |
| 7 | Glass, Inner |
| 8 | Channel Assembly |
| 8 | Washer |
| 9 | Roller, Stop (2) |
| 10 | Rivet (2) |
| 11 | Arm Assembly (2) |
| 12 | Pin, Hinge (2) |
| 13 | Spring, Door (2) |
| 14 | Spacer, Door (4) |
| 16 | Seal, Inner Glass |
| 17 | Retainer, Inner Glass |
| 18 | Screw 10-24 x 1/2 |
| 18 | Panel, Air Wash |
