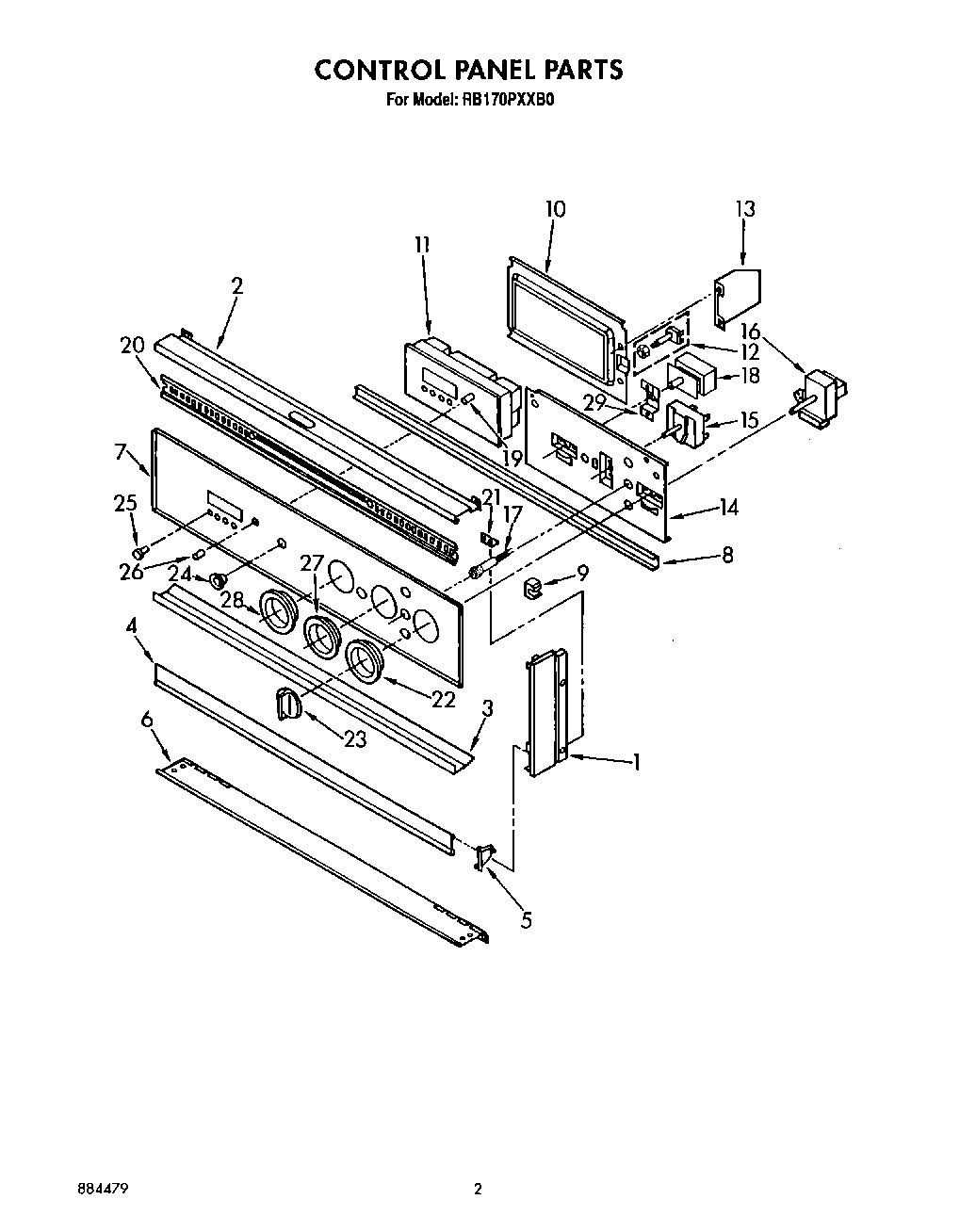

RB170PXXB0 02 – CONTROL PANEL

Products

Position	Product
	Installation Instructions
	Tech Sheet
	Repair Parts List
	Use & Care Guide
1	End Cap (Right Hand)
1	End Cap (Left Hand)
2	Trim, Top
3	Trim, Center
4	Door, Vent
5	End Trim, Vent (Right Side)
5	End Trim, Vent (Left Side)
6	Trim, Bottom
6	Screw, Black (2)
7	Glass, Control Panel
8	Rail, Mounting (Components)
9	Retainer, Glass (6)
10	Plate, Mounting (Clock)
11	Timer, Digital (Includes Knobs)
12	Switch, Oven Light
13	Shield, Heat
14	Plate, Mounting (Controls)
15	Switch, Selector
16	Thermostat, upper
16	WP486579 Whirlpool Air Conditioner Screw
17	Indicator Light, Oven (Lower Oven)
18	Screw (2)
18	Thermostat, Lower
19	Shaft, Bit Generator
20	Insert, Vent
21	Bracket, Mounting
22	Escutcheon, Oven Thermostat
23	WP3150371 Whirlpool Control Knob
24	Bezel Switch (1)
25	WPL 313958
26	Knob, Bit Generator (Black)
27	Escutcheon, Selector Switch
28	Screw,
28	Ecsutcheon, Oven Thermostat (Lower)
29	Bracket, Mounting (Lower Thermostat)
29	WP90767 Whirlpool Screw
