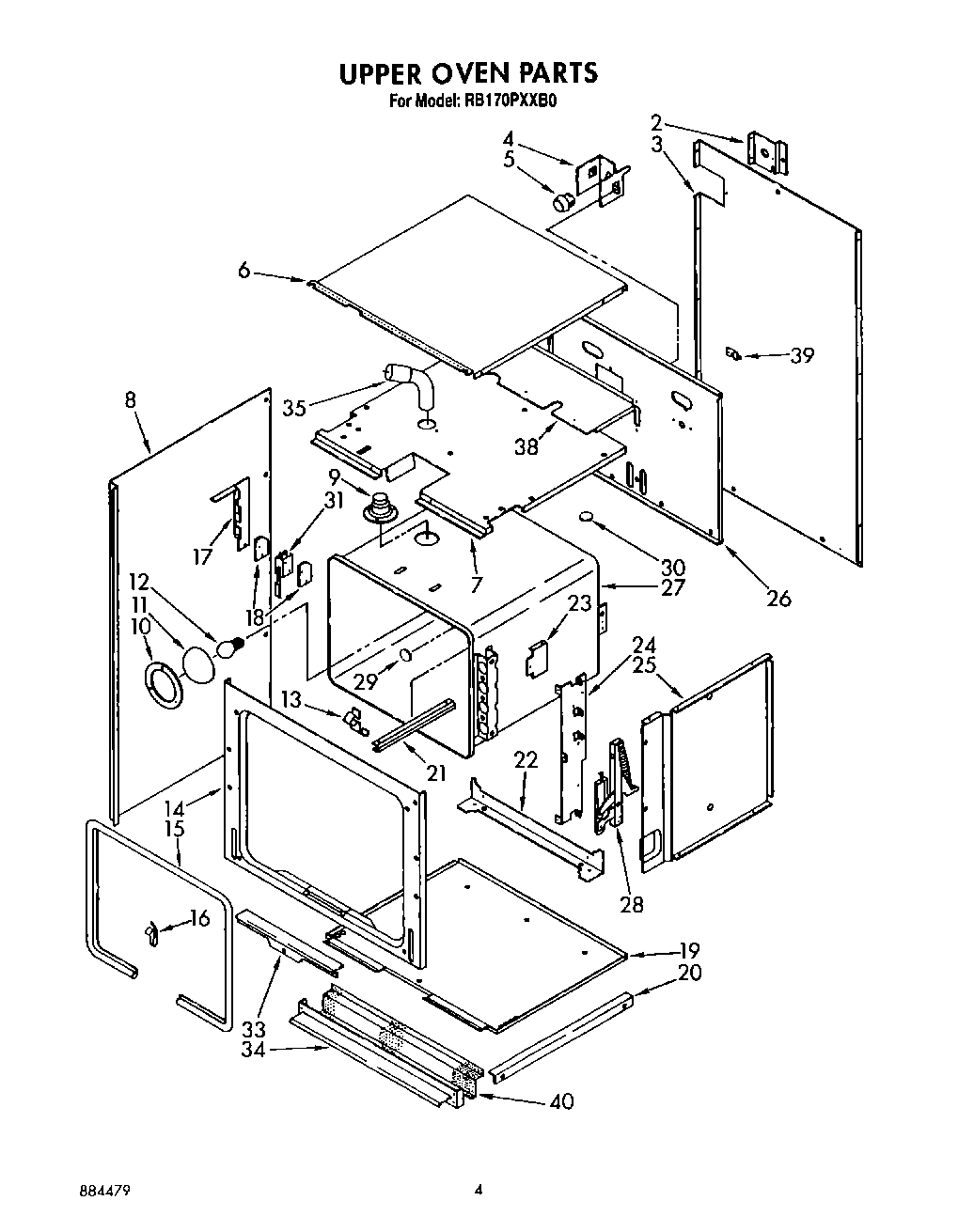

RB170PXXB0 03 – LIT/OPTIONAL, UPPER OVEN

Products

Position	Product
2	Bracket, Conduit
3	Cabinet, Back
4	Housing, Light
5	Socket, Light
6	Cabinet, Top
7	Top, Module
8	Side, Cabinet (R.H. & L.H.)
9	Vent Tube Extension
10	Retainer, Glass
11	Light Lens
12	RANGE ONLY 40W 120V APPL BULB
13	98005642 Whirlpool Clip
14	Frame, Front
15	Seal, Door
16	Clip, Oven Seal
17	Bracket, Switch
18	Insulator, Switch
19	Bottom, Modual
20	Rail, Support (2)
21	Screw (3)
21	Broiler Element Support-Right
22	Support, Oven
23	Shield, Radiation
24	Bracket, Hinge
25	Side, Module (R.H. & L.H.)
26	Back, Module
27	Liner, Oven
28	Hinge, Door
28	Screw (4)
29	Plug Button (5/8“ Hole)
30	Plug Button (3/8“ Hole)
31	Screw (2)
31	Nut (2)
31	Switch, Door
33	Retainer, Seal
34	Vent, Middle Trim
34	Vent, Lower Trim (Screw (4))
34	Vent, Lower Trim (Screw (2))
35	Vent, Tube (Upper, Female)
38	Extension, Shelf
38	WP3177991 Whirlpool Screw
39	Cover, Cap Tube
39	Screw
40	Insulation, Wrap
40	WPL 3177870
40	WP90767 Whirlpool Screw
40	Screen, Wire Mesh
