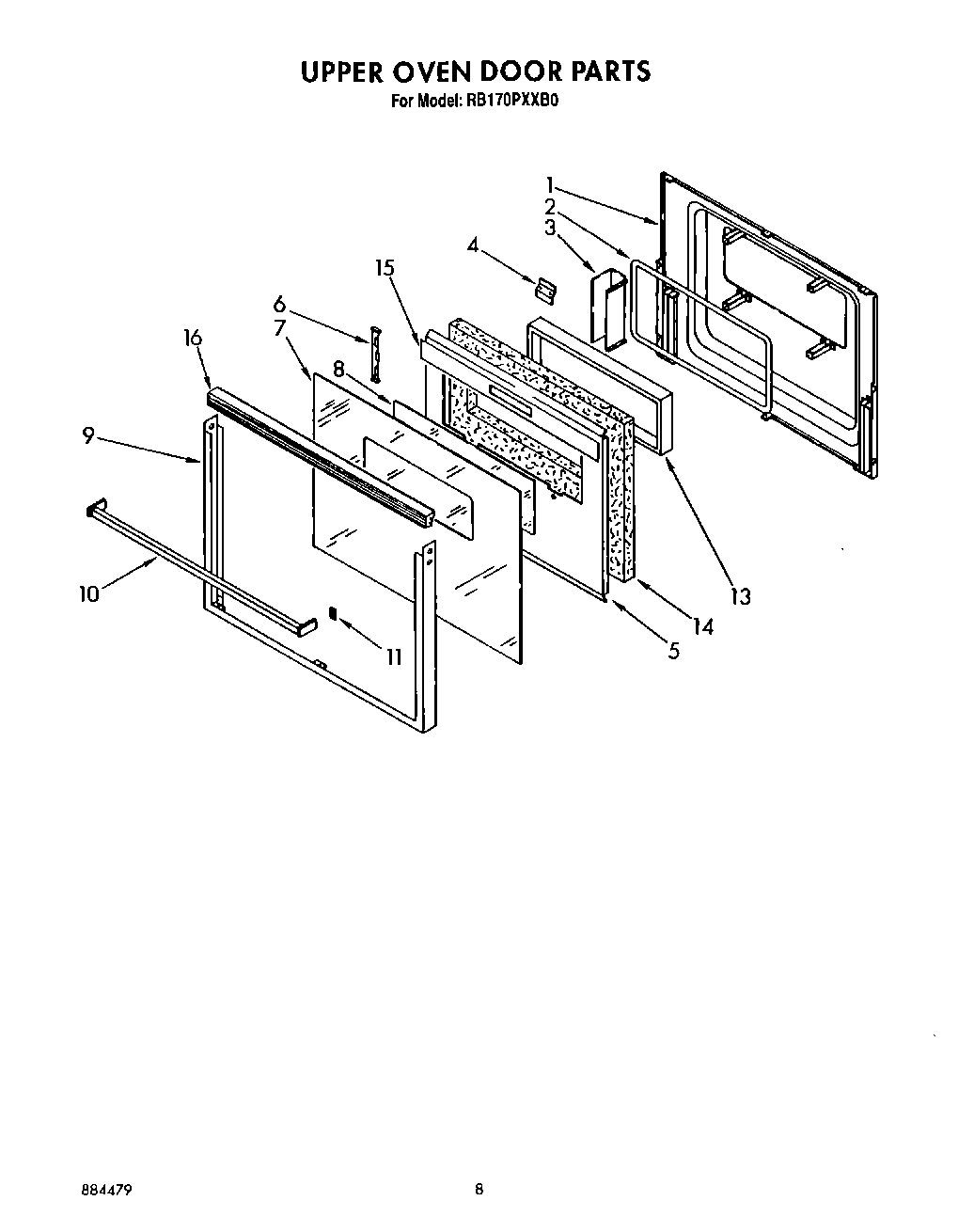

RB170PXXB0 05 – UPPER OVEN DOOR

Products

Position	Product
1	Liner, Door
1	Screw, Black (2)
2	Seal, Window
3	Spacer, Window
4	Latch, Strike
5	Glass, Door (Black Model)
6	Bracket, Glass Mtg.
7	Glass, Door
8	Glass, Reflective
9	Frame, Door
10	Screw (3)
10	WP355515 Whirlpool Screw
10	Handle, Door (Black Model)
11	Clip, Mtg (2)
13	Window Package
14	Insulation, Door
15	Shield, Door
15	WP90767 Whirlpool Screw
16	Trim, Top (Black Model)
