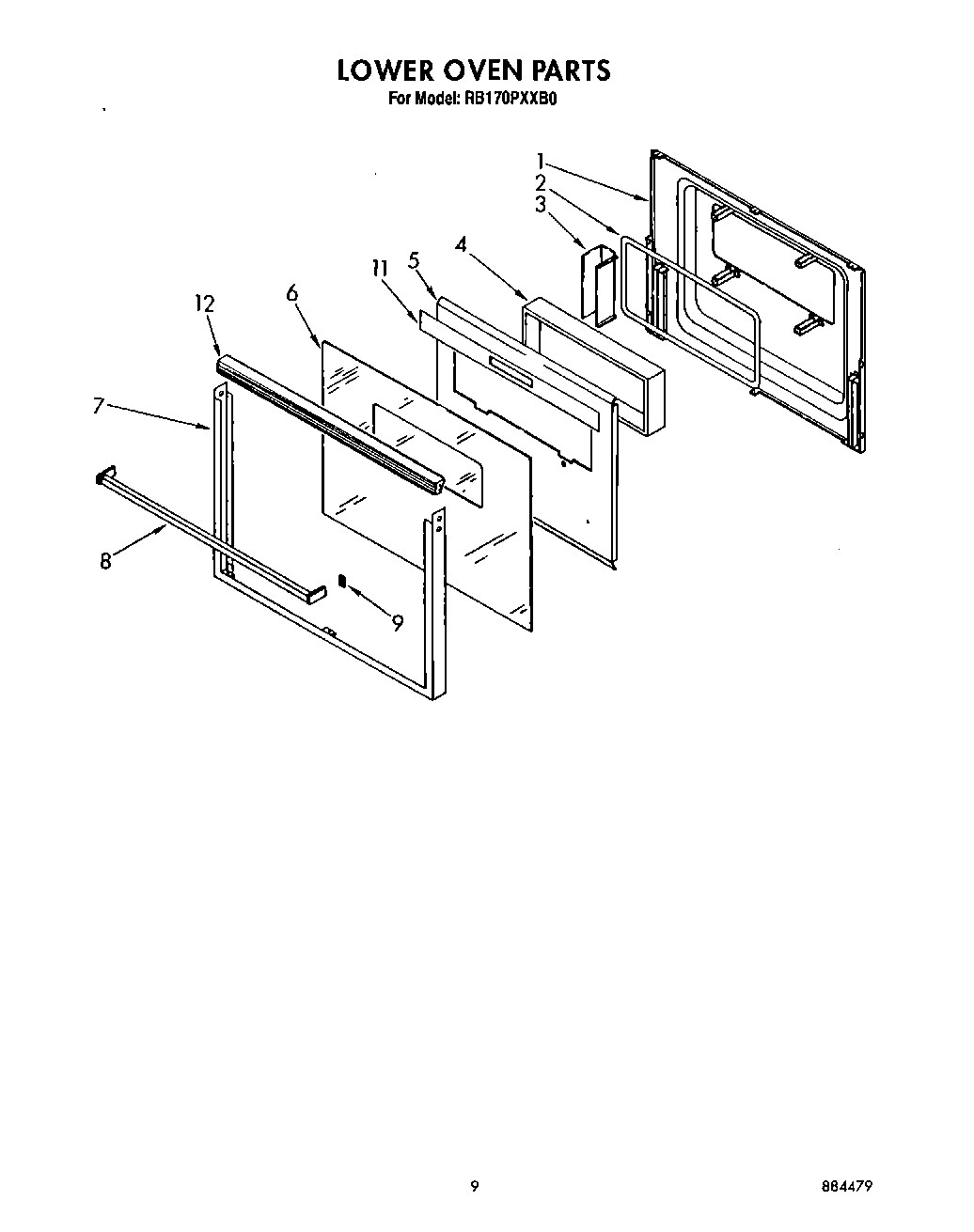

RB170PXXB0 06 – LOWER OVEN DOORadmin2025-04-26T11:30:50+00:00RB170PXXB0 06 – LOWER OVEN DOOR
Products
| Position | Product |
|---|
| 1 | Liner, Door |
| 1 | Vent, Lower Trim (Screw (2)) |
| 1 | Screw, Black (2) |
| 2 | Seal, Window |
| 3 | Spacer, Window |
| 4 | Window Pack |
| 5 | Retainer, Insulation |
| 6 | Glass, Door (Black Model) |
| 7 | Frame, Door |
| 8 | WP355515 Whirlpool Screw |
| 8 | Handle, Door (Black Model) |
| 9 | Clip, Mtg (2) |
| 11 | Shield, Door |
| 11 | WP90767 Whirlpool Screw |
| 12 | Screw (3) |
| 12 | Trim, Top (Black Model) |
