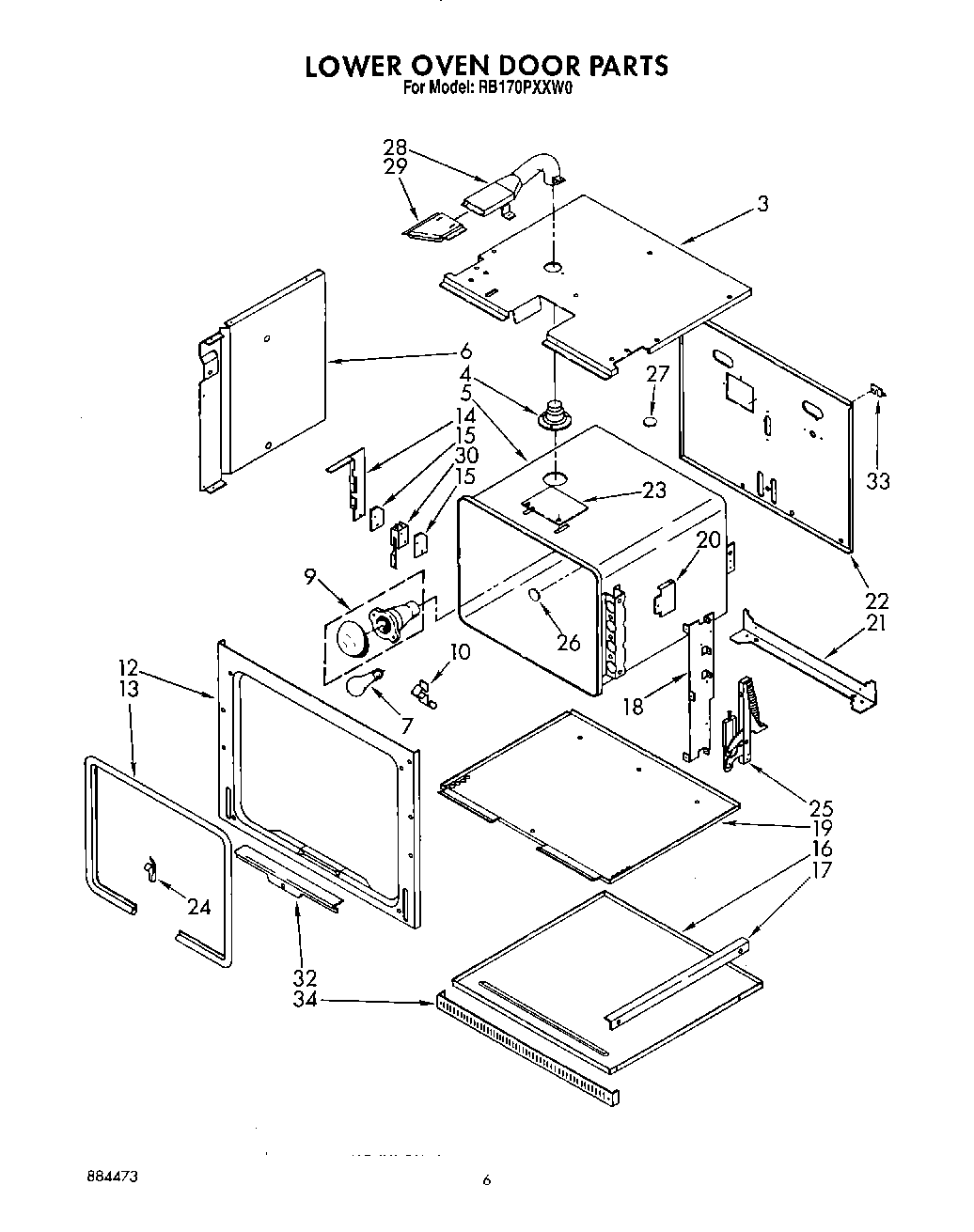

RB170PXXW0 04 – LOWER OVEN

Products

Position	Product
3	Top, Module
4	Smoke Eliminator (Vent Tube Lower Oven)
5	Liner, Oven
6	Side, Module (R.H. & L.H.)
7	RANGE ONLY 40W 120V APPL BULB
9	W11594027 Whirlpool Range Oven Light Socket
10	98005642 Whirlpool Clip
12	Frame, Door
13	Seal, Door
14	WP3177991 Whirlpool Screw
14	Bracket, Switch
15	Insulator, Switch
16	Bottom, Oven
17	Rail, Support (2)
18	Bracket, Hinge
19	Bottom, Modual
20	Shield, Radiation
21	Support, Oven
22	Back, Module
23	Screw (3)
23	Cover, Latch Mtg.
24	Clip, Oven Seal
25	Hinge, Door
25	Screw (4)
26	Plug Button (5/8“ Hole)
27	Plug Button (3/8“ Hole)
28	WP90767 Whirlpool Screw
28	Tube, Vent Male
29	Tube, Vent
30	Screw (2)
30	Switch, Door
30	Nut (2)
32	Retainer, Seal
32	Screw (4)
32	Screw (2)
32	Vent, Lower Trim (Screw (2))
33	Cover, Cap Tube
33	Screw
34	WPL 3177870
34	Vent, Lower Trim (White Model)
34	Insulation, Wrap
