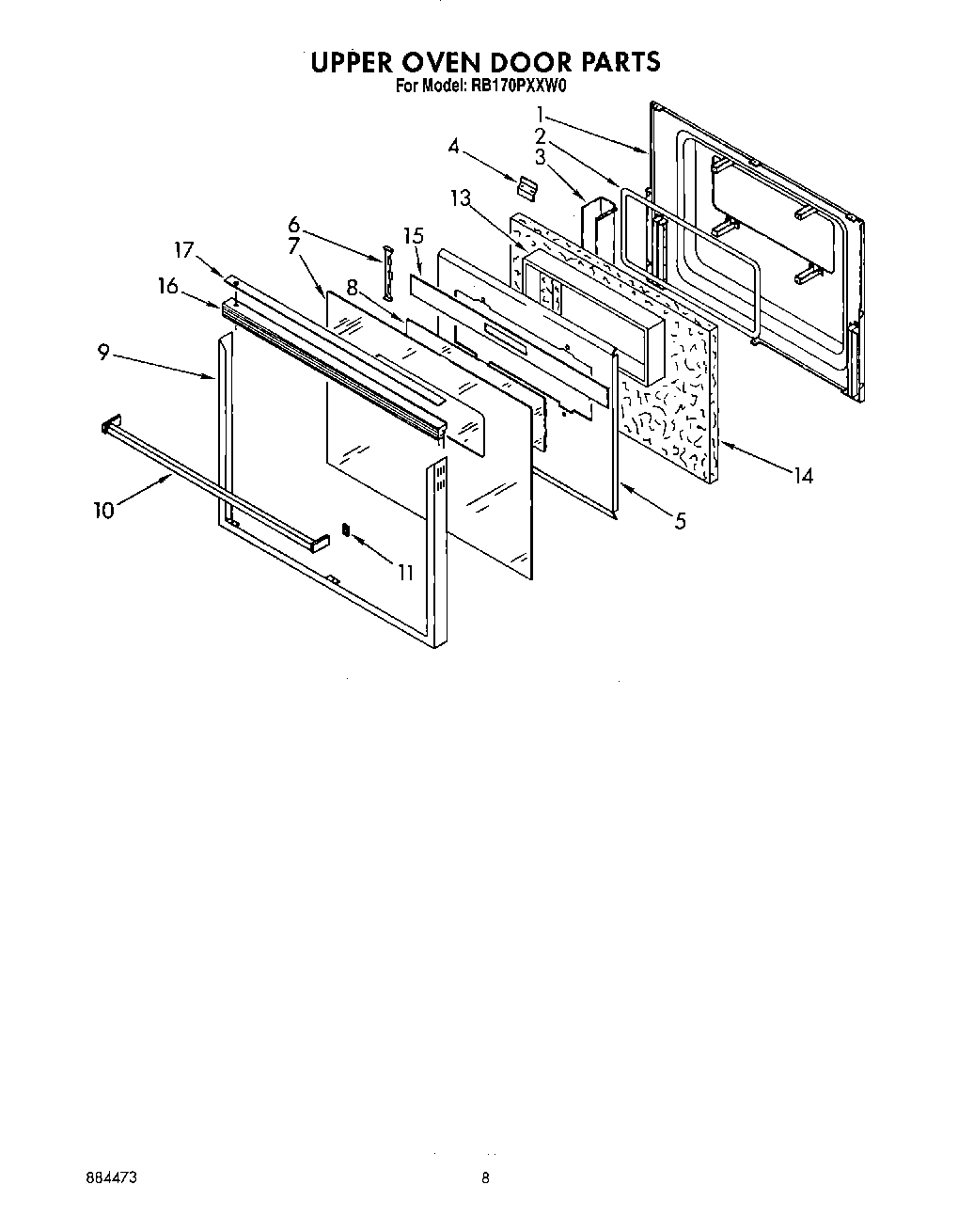

RB170PXXW0 05 – UPPER OVEN DOOR

RB170PXXW0 05 – UPPER OVEN DOOR

Written by

in

RB170PXXW0 05 – UPPER OVEN DOOR

Products

Position	Product
1	Screw (4)
1	Liner, Door
2	Seal, Window
3	Spacer, Window
4	Latch, Strike
5	Retainer, Insulation
6	Bracket, Glass Mtg.
7	Glass, Door (White Model)
8	Glass, Reflective
9	Frame, Door
10	Handle, Door (White Model)
10	WP355515 Whirlpool Screw
11	Clip, Mtg (2)
13	Window Package
14	Insulation, Door
15	Shield, Door
15	WP90767 Whirlpool Screw
16	Trim, Top (White Model)
17	Vent, Lower Trim (Screw (2))
17	Cap, Top (White Model)
