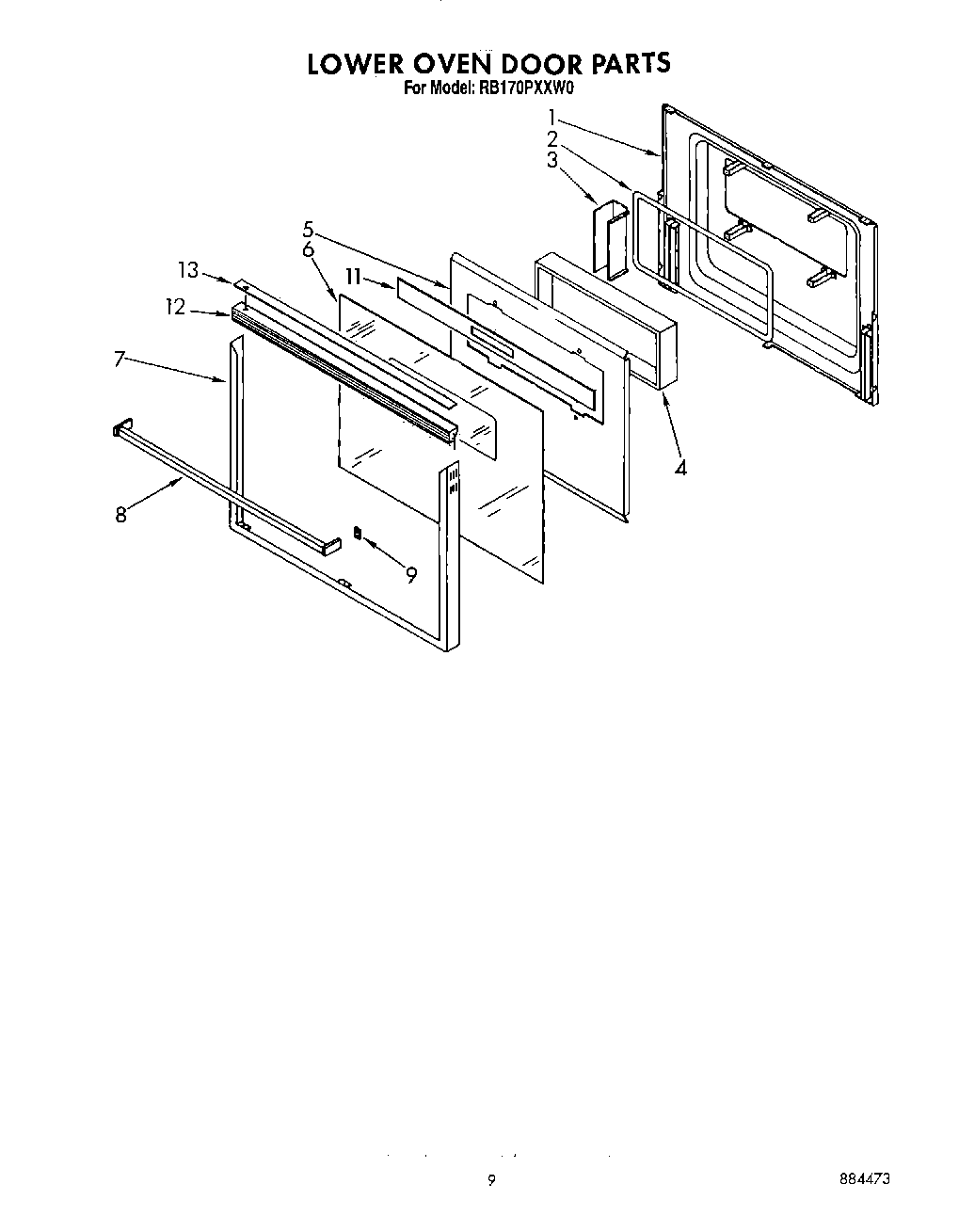

RB170PXXW0 06 – LOWER OVEN DOOR

RB170PXXW0 06 – LOWER OVEN DOOR

Written by

in

RB170PXXW0 06 – LOWER OVEN DOOR

Products

Position	Product
1	Liner, Door
1	Screw, Black (2)
2	Seal, Window
3	Spacer, Window
4	Window Pack
5	Retainer, Insulation
6	Glass, Door (White Model)
7	Frame, Door
8	WP355515 Whirlpool Screw
8	Handle, Door (White Model)
9	Clip, Mtg (2)
9	Screw (3)
11	Shield, Door
11	WP90767 Whirlpool Screw
12	Trim, Top (White Model)
13	Vent, Lower Trim (Screw (2))
13	Cap, Top (White Model)
