RB170PXXW0 07 – COMPONENT SHELF AND LATCH

RB170PXXW0 07 – COMPONENT SHELF AND LATCH

Written by

in

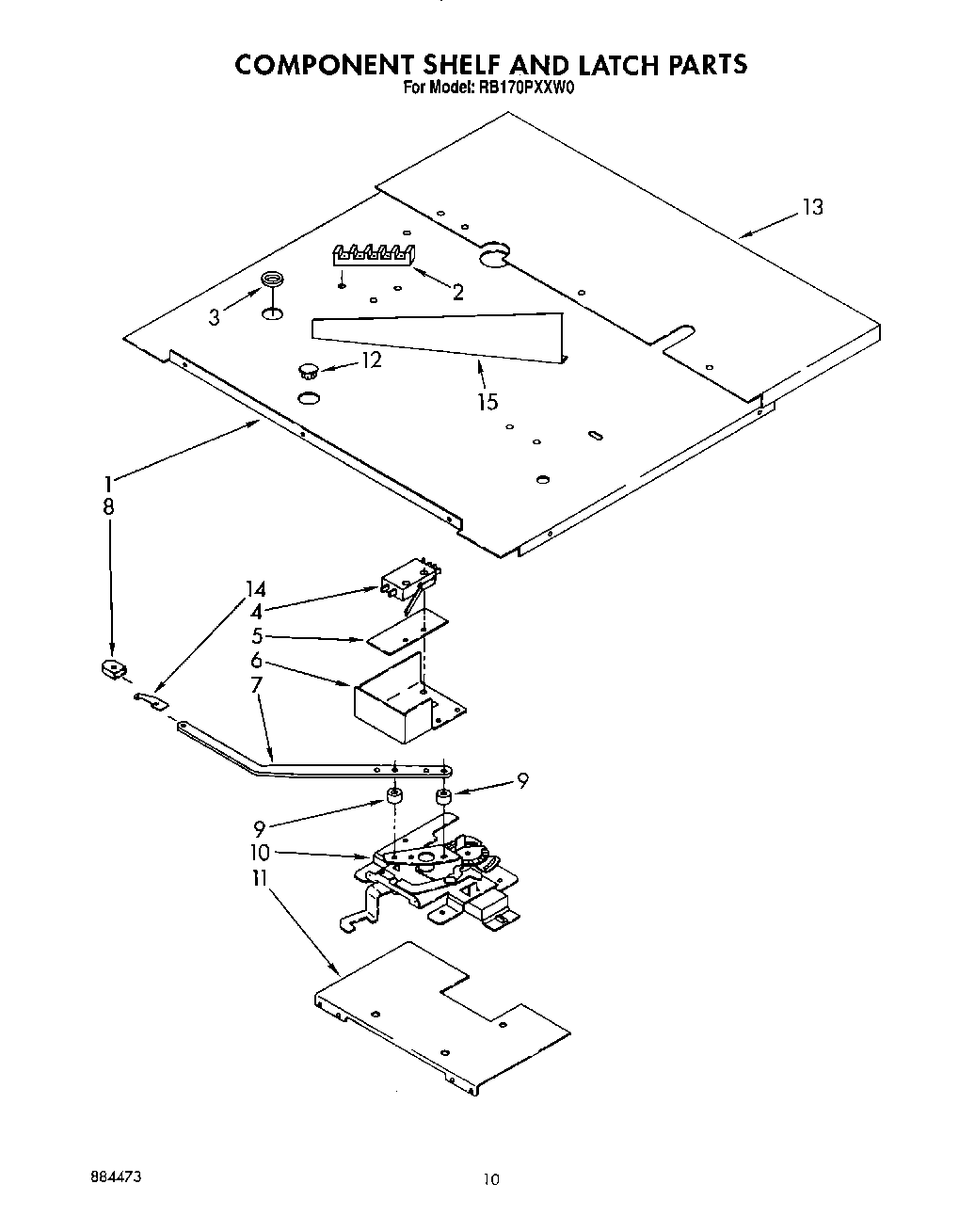

RB170PXXW0 07 – COMPONENT SHELF AND LATCH

Products

PositionProduct
1Shelf, Component
2WP8203546 Whirlpool Terminal Block
3Bushing
4Screw
4Switch, Latch
5Insulator, Switch
6Guard, Latch
6Screw,
7Handle, Latch
7Screw
8Knob, Latch Handle
9Spacer, Handle (2)
10Latch, Mechanism
11Plate, Mounting
12Plug, Button
13WP3177991 Whirlpool Screw
13Extension, Shelf
14WP112432 Whirlpool Nut Assembly
14WP488234 Whirlpool Air Conditioner Screw
14Support, Latch
15WP90767 Whirlpool Screw
15Baffle, Air
