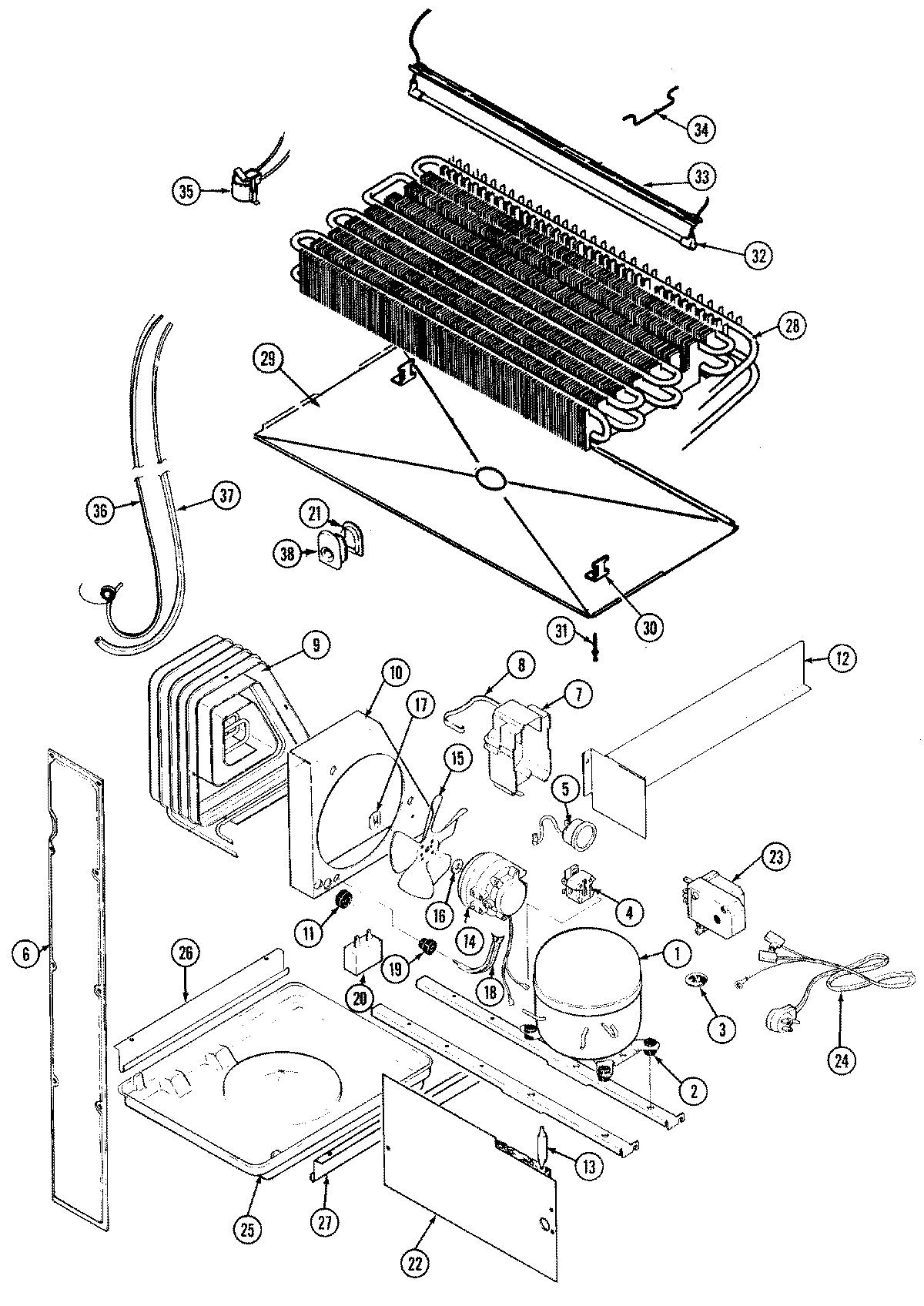

RB170TV 06 – UNIT COMPARTMENT & SYSTEM

Products

Position	Product
1	MAY RA1011-1
1	MAY RA1032-1
2	MAY 17245-4
3	MAY 62165-1
3	MAY 414011-1
4	WP10097202 Whirlpool Refrigerator Start Device
4	2154436 Whirlpool Refrigerator Start Relay
5	MAY 69105-10
5	4388953 Whirlpool Overload Relay
6	MAY 60110-2
6	MAY 65275-50
7	MAY 66589-2
7	MAY 69754-1
8	MAY 59596-1
9	MAY 60408-1
9	MAY RA43871-1
10	MAY 66228-1
11	MAY 53351-1
12	MAY 66493-1
13	WPW10143759 Whirlpool Dryer Filter
14	MAY 408015-1
14	MAY 61001562
14	MAY 68445-3
15	WP12587601 Whirlpool Refrigerator Condenser Blade
16	MAY 19913-4
17	MAY 19914-0
18	MAY 69181-1
19	MAY 56933-1
20	WP65889-4 Whirlpool Refrigerator Capacitor
20	WP2262343 Whirlpool Refrigerator/Freezer Capacitor
21	MAY 60069-1
21	MAY 60177-4
21	MAY 70164-1
21	MAY 61001566
22	WP488729 Whirlpool Refrigerator Door Screw
22	MAY 66338-3
23	MAY 68233-1
23	MAY 405007-1
24	MAY 52890-2
26	MAY 60555-1
27	WP489478 Whirlpool Refrigerator Screw
27	MAY 60555-2
28	MAY 69822-1
29	MAY 69118-1
30	MAY 60108-2
31	MAY 26397-9
32	WP60106-34 Whirlpool Refrigerator Heater
33	MAY 60109-4
34	MAY 68935-1
35	WP52085-28 Whirlpool Thermostat
36	MAY 65013-4
36	MAY 66223-1
37	MAY 65398-1
38	MAY 60068-1
39	MAY 108340-3
