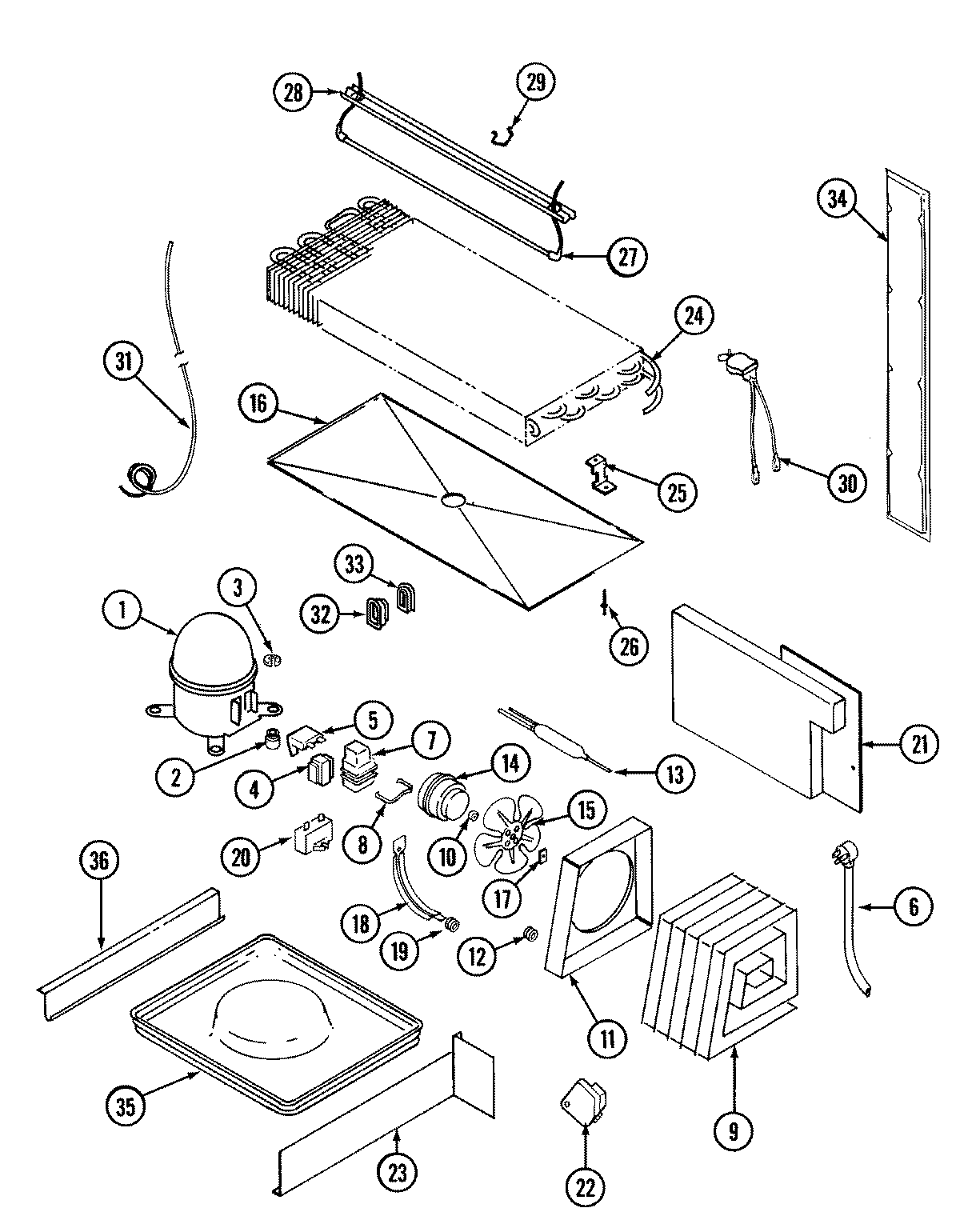

RB171ALV 09 – UNIT COMPARTMENT & SYSTEM

Products

Position	Product
1	MAY RA1011-1
2	MAY 17245-4
3	MAY 62165-1
4	2154436 Whirlpool Refrigerator Start Relay
5	MAY 69105-10
6	MAY 52890-3
7	MAY 66589-2
8	MAY 65886-1
9	MAY 60408-2
9	MAY 414001-1
9	MAY 60434-3
10	MAY 61001686
11	MAY 61001205
12	MAY 53351-1
13	WPW10143759 Whirlpool Dryer Filter
14	MAY 65275-33
14	MAY 61001562
15	WP12587601 Whirlpool Refrigerator Condenser Blade
16	MAY 61001666
17	WP486692 Whirlpool Refrigerator Nut
18	MAY 69181-1
19	MAY 56933-1
20	WP2262343 Whirlpool Refrigerator/Freezer Capacitor
21	MAY 65275-5
21	MAY 66338-3
22	MAY 68233-1
22	MAY 405007-1
23	MAY 66493-1
24	MAY 69822-1
25	MAY 60108-2
26	MAY 26397-9
27	WP60106-34 Whirlpool Refrigerator Heater
28	MAY 60109-4
29	MAY 68935-1
30	WP52085-28 Whirlpool Thermostat
31	MAY 65013-26
31	MAY 61001042
32	MAY 60068-1
33	MAY 60069-1
34	MAY 65275-50
34	MAY 60177-4
34	MAY 61001136
34	MAY 61001560
36	WP489478 Whirlpool Refrigerator Screw
36	MAY 60555-2
36	MAY 60555-1
37	MAY 61001720
38	MAY 16000329
