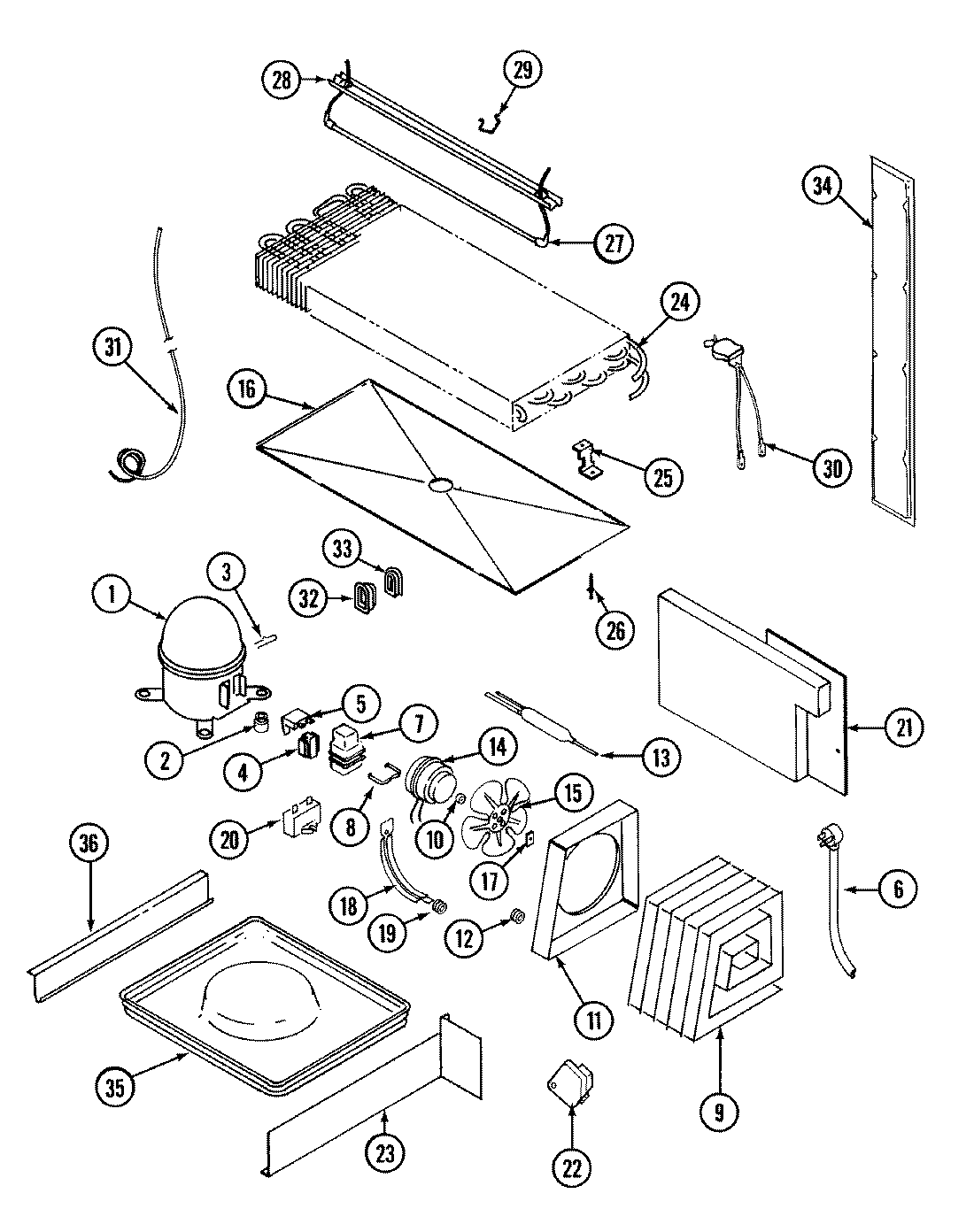

RB171TFW 07 – UNIT COMPARTMENT & SYSTEM

Products

Position	Product
1	MAY RA1011-1
2	MAY 17245-4
3	MAY 62165-1
3	MAY 60110-2
3	MAY 414011-1
4	2154436 Whirlpool Refrigerator Start Relay
5	MAY 69105-10
6	MAY 52890-2
7	MAY 66589-2
8	MAY 59596-1
9	MAY 60434-3
9	MAY 60408-1
10	MAY 69063-1
11	MAY 66228-1
12	MAY 53351-1
13	WPW10143759 Whirlpool Dryer Filter
14	MAY 408015-1
14	MAY 68445-3
15	WP12587601 Whirlpool Refrigerator Condenser Blade
16	MAY 69118-1
17	MAY 19914-0
18	MAY 69181-1
19	MAY 56933-1
20	MAY 70162-1
20	WP2262343 Whirlpool Refrigerator/Freezer Capacitor
21	MAY 66338-3
21	WP488729 Whirlpool Refrigerator Door Screw
22	MAY 68233-1
22	MAY 405007-1
23	MAY 66493-1
24	MAY 69822-1
25	MAY 60108-2
26	MAY 26397-9
27	WP60106-34 Whirlpool Refrigerator Heater
28	MAY 60109-4
29	MAY 68935-1
30	WP52085-28 Whirlpool Thermostat
31	MAY 65013-4
31	MAY 66223-1
32	MAY 60068-1
33	MAY 70164-1
33	MAY 60177-4
33	MAY 60069-1
34	MAY 65275-50
36	MAY 60555-1
36	WP489478 Whirlpool Refrigerator Screw
37	MAY 60555-2
37	MAY 65398-1
39	MAY 108340-3
