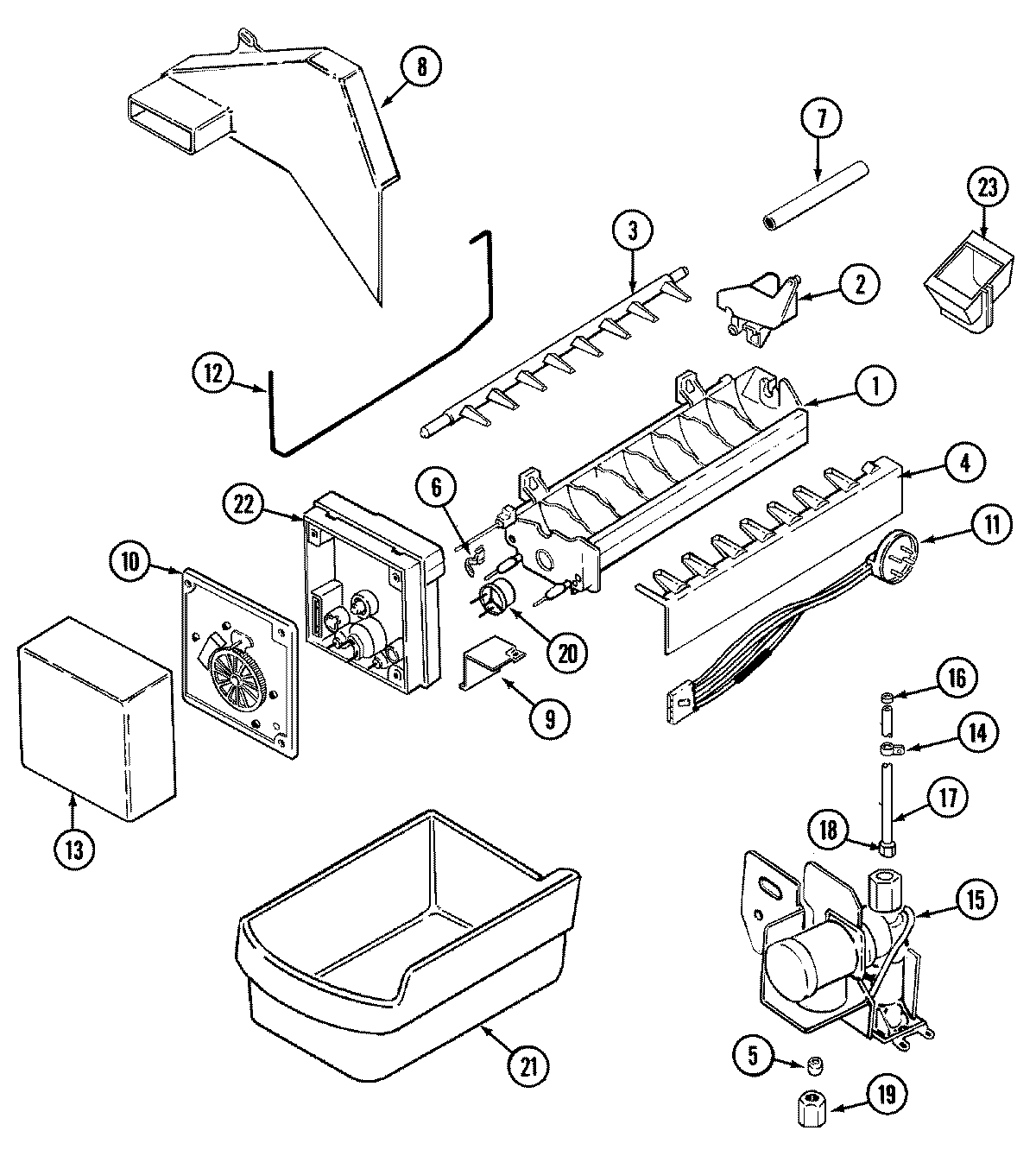

RB1720AM 07 – OPTIONAL ICE MAKER KIT (ICE)

RB1720AM 07 – OPTIONAL ICE MAKER KIT (ICE)

Products

PositionProduct
1WP99003172 Whirlpool Silicone L
1D7824706Q Whirlpool Refrigerator Ice Maker Assembly
2WP628356 Whirlpool Refrigerator Fill Cup
3WP627843 Whirlpool Refrigerator Ejector Arm
4WP2182124 Whirlpool Refrigerator Stripper Arm
5WP487627 Whirlpool Refrigerator Sleeve
6WP2315522 Whirlpool Refrigerator Clip
7MAY 67666-8
7MAY 67877-1
8MAY 70198-1
8MAY 70198-3
8MAY 70198-2
9BRACKET, MODULE & HEATER
9MAY 95108-1
10MAY 95109-1
10MAY 400021-1
11MAY 70076-1
12MAY 68112-1
13MAY 68328-2
14SCREW
14MAY 23197-8
15MAY 401017-1
15MAY 61001019
16WPM0114003 Whirlpool Microwave Speed Clip Clamp
17MAY 67579-6
18WP627018 Whirlpool Refrigerator Nut
19WP245183 Whirlpool Nut
20WP627985 Whirlpool Icemaker Cycling Thermostat
20MAY 95093-1
21WP67001255 Whirlpool Ice Bucket
22SCREW
22WP2195914 Whirlpool Refrigerator Ice Maker Housing
23MAY 61001305
