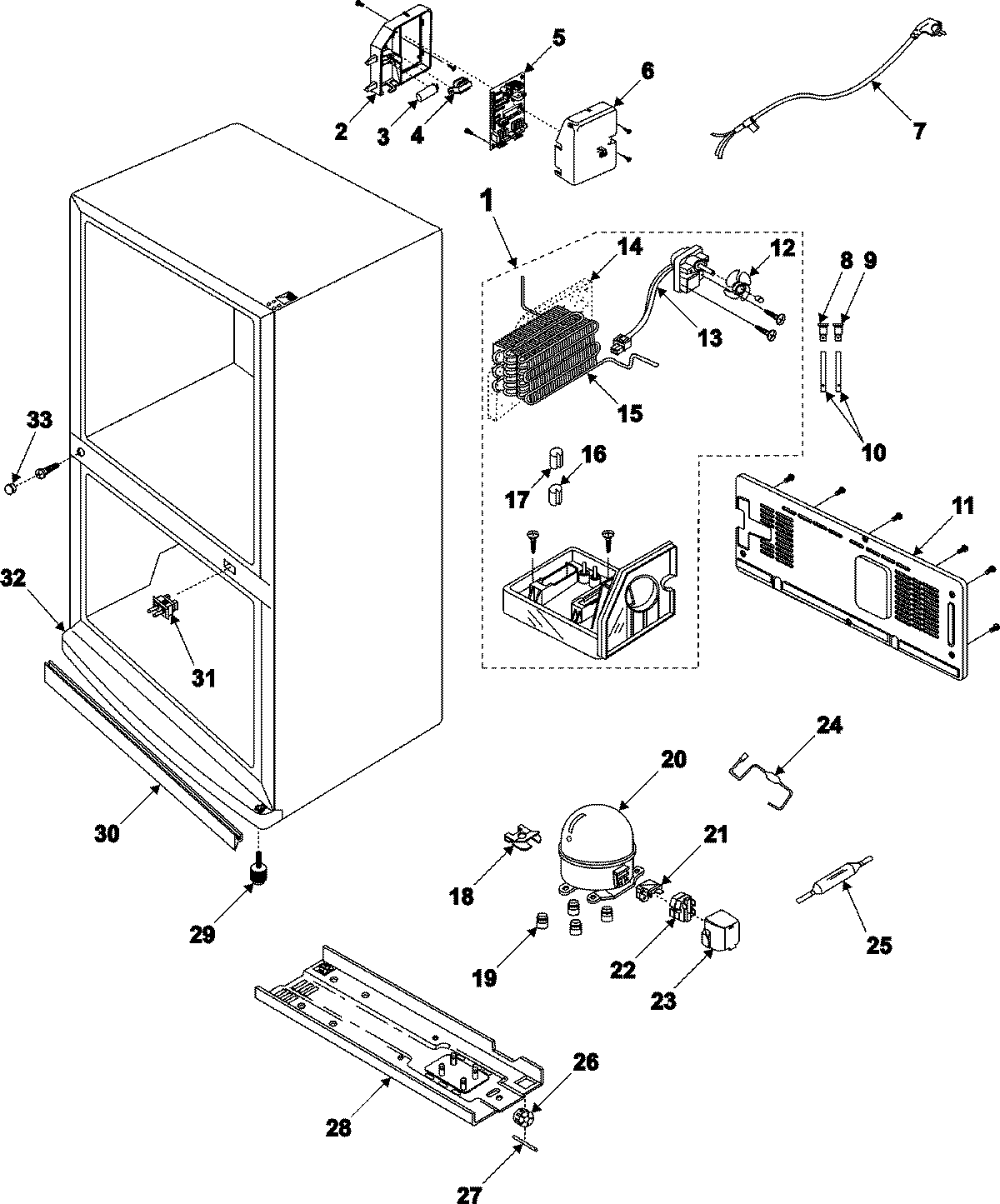

RB1855BB 06 – MACHINE COMPARTMENT AND CABINET BACK

Products

Position	Product
1	MAY DA97-00180N
2	DA61-00758A Samsung Refrigerator Case PCB Panel
3	MAY 2501-001045
4	MAY DA26-30111J
5	MAY DA41-00128D
6	MAY DA63-01271A
7	MAY DA39-10165E
8	MAY DA63-00951A
9	DA63-00951B Samsung Refrigerator Grommet Drain Hose
10	MAY DA62-20001Q
11	MAY DA97-00408B
12	MAY DA31-00010B
15	MAY DA73-10314L
16	MAY DA63-40171D
17	MAY DA63-40171B
19	MAY DA63-02017A
20	MAY W10126763
21	DA34-10003D Samsung Refrigerator Compressor Overload Protector
22	DA35-10013N Samsung Refrigerator PTC Relay
23	MAY DA63-01866A
24	MAY DA97-00921A
25	MAY DA73-30102B
27	MAY DA60-90124A
28	MAY DA97-00616C
29	DA61-01051B Samsung Refrigerator Foot Front
30	MAY DA64-20138B
31	MAY DA34-00006C
32	MAY DA63-10262S
33	SEE NOTE GROUND WIRE, GREEN
