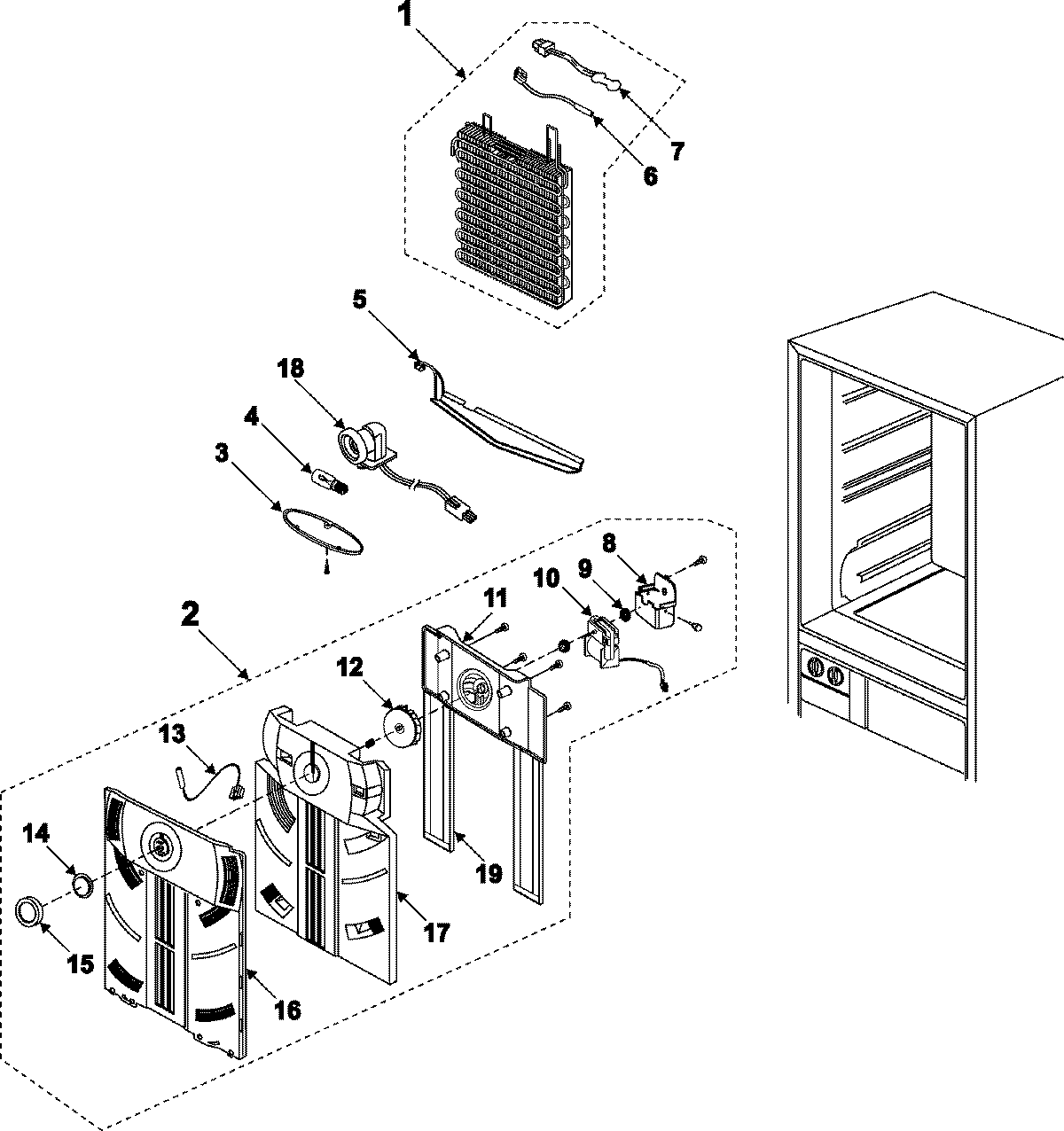

RB1855BB 07 – REFRIGERATOR COMPARTMENT

RB1855BB 07 – REFRIGERATOR COMPARTMENT

Written by

in

RB1855BB 07 – REFRIGERATOR COMPARTMENT

Products

PositionProduct
1MAY DA96-00017G
2MAY DA97-00459J
3MAY DA63-00925B
4MAY 4713-001197
5MAY DA97-00441F
6MAY DA32-00006C
7DA47-00095E Samsung Thermal Fuse
8MAY DA63-00183B
9MAY DA63-00771A
10MAY DA31-00003N
11MAY DA63-00932A
12MAY DA31-00016A
13DA32-10105T Samsung Refrigerator Sensor Assembly with CABLE CONNETOR
14MAY DA63-00934C
15MAY DA64-00452D
16MAY DA63-00933B
18MAY DA47-00112D
19SEE NOTE GROUND WIRE, GREEN
