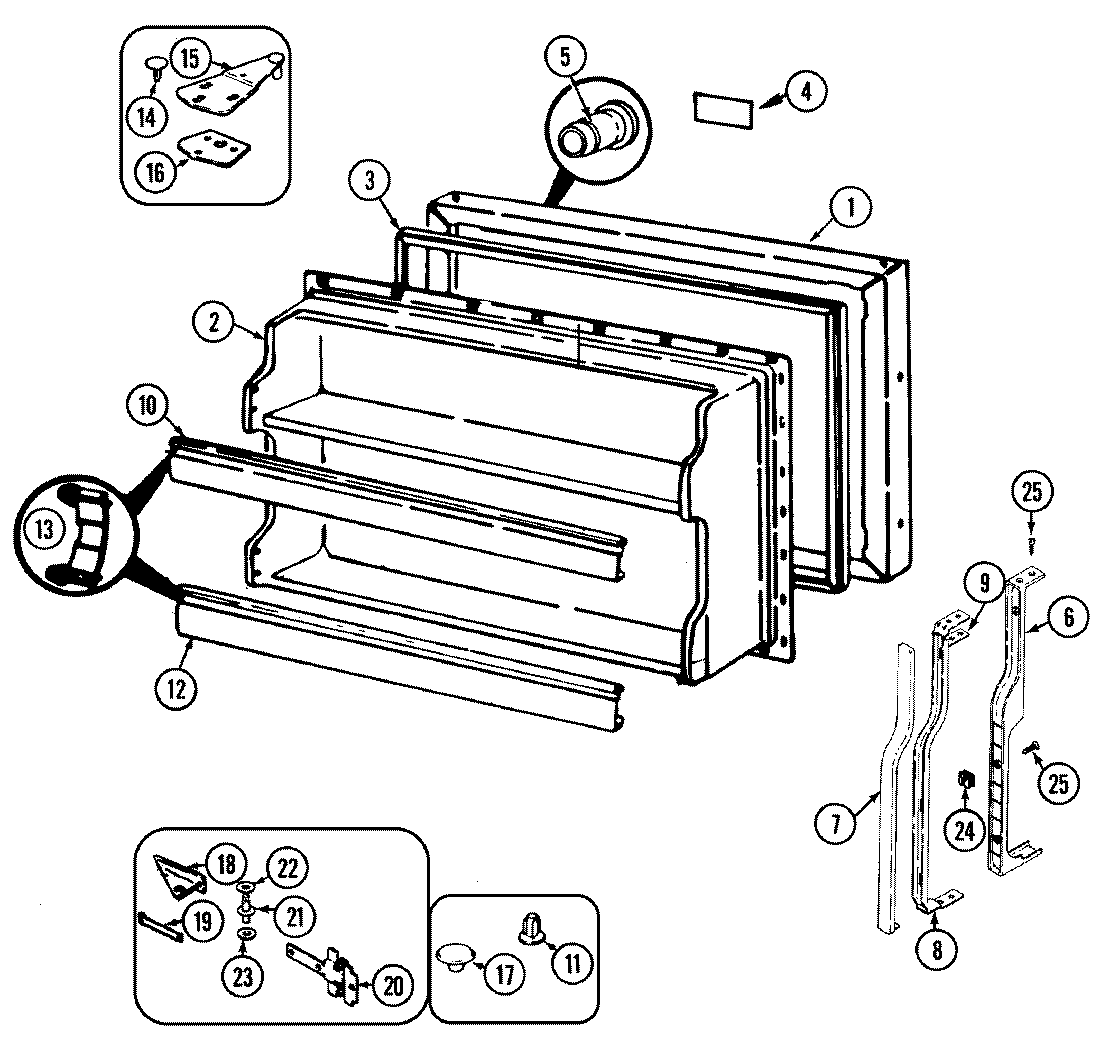

RB191TA 02 – FREEZER DOOR

Products

Position	Product
1	MAY 72342-100-AM
2	MAY 65275-5
2	MAY 69470-1
3	MAY 70025-5
4	MAY 66982-32
5	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
6	MAY 65275-57
6	MAY 61001119
7	MAY 70053-9
8	MAY 70052-4
9	MAY 67934-1
10	WP70111-108 Whirlpool Refrigerator Shelf Trim
11	MAY 69480-4
12	MAY 70111-22
13	70197-1 Whirlpool Refrigerator Door Shelf Bar Trim Retainer End Cap
14	MAY 56144-9
15	MAY 65275-52
15	MAY 53709-20
16	MAY 65031-1
17	MAY 67634-3
18	MAY 69514-2
18	MAY 65275-62
19	MAY 69515-1
20	MAY 69419-1
21	MAY 69517-2
22	MAY 67483-6
23	MAY 54233-2
24	MAY 69743-1
25	MAY 69256-2
25	MAY 415033-1
