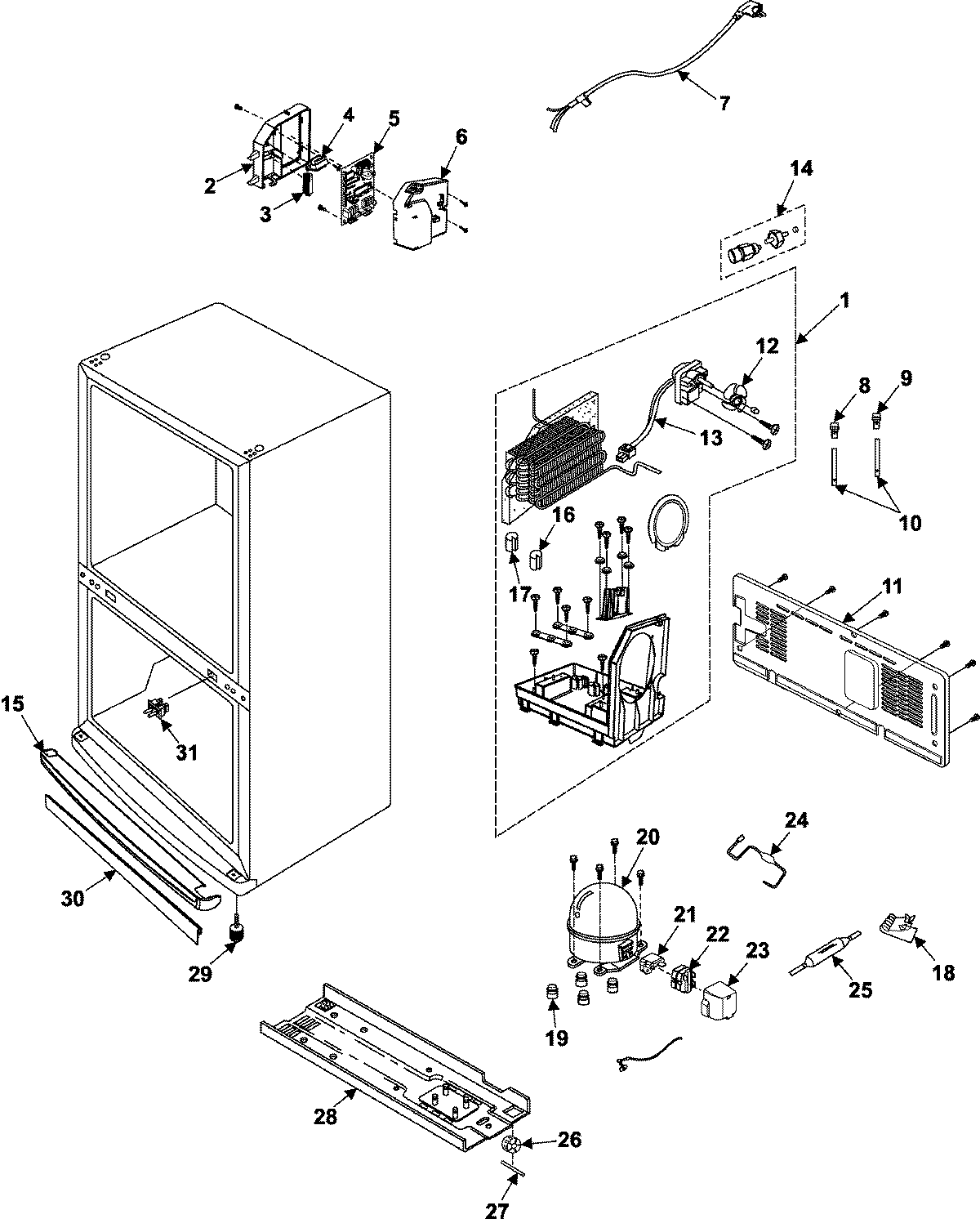

RB195BSBB 06 – MACHINE COMPARTMENT AND CABINET BACK

Products

PositionProduct
1MAY DA97-02792A
2DA61-00758A Samsung Refrigerator Case PCB Panel
3MAY 2501-001045
4MAY DA26-00022B
5SMG DA41-00293A
6MAY DA63-02533A
7MAY DA39-10165E
8MAY DA63-00951A
9DA63-00951B Samsung Refrigerator Grommet Drain Hose
10MAY DA62-20001Q
11MAY DA97-00408D
12MAY DA31-00010B
14MAY DA99-00240E
15MAY DA63-02531B
16MAY DA63-40171D
17MAY DA63-40171B
18MAY DA61-01957A
19MAY DA63-02017A
20MAY W10126764
21DA34-10003D Samsung Refrigerator Compressor Overload Protector
22DA35-10013N Samsung Refrigerator PTC Relay
23MAY DA63-01866A
24MAY DA97-00921A
25MAY DA73-30102B
27MAY DA60-90124A
28MAY DA97-00616C
29DA61-01051B Samsung Refrigerator Foot Front
30MAY DA64-20138B
31MAY DA34-00006C
