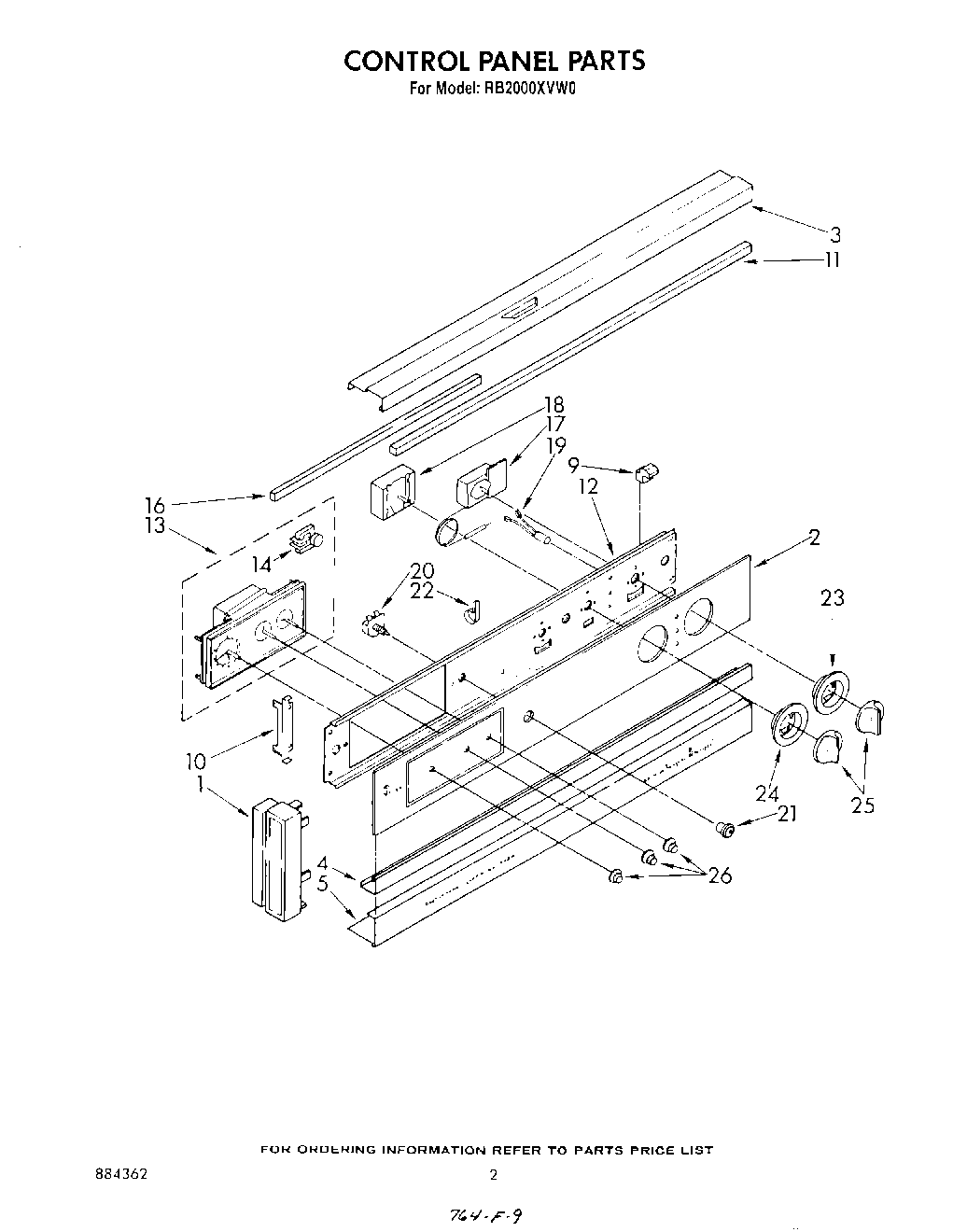

RB2000XVN0 02 – CONTROL PANEL , LITERATURE AND OPTIONALadmin2025-04-26T11:30:01+00:00RB2000XVN0 02 – CONTROL PANEL , LITERATURE AND OPTIONAL
Products
| Position | Product |
|---|
| WPL LIT884362 |
| WPL LIT311434 |
| WPL LIT313358 |
| screw, 6-32 x 1/4 (2) |
| WPL LIT3148314 |
| 1 | End Cap. L.H. |
| 1 | End Cap (R.H.) |
| 2 | Glass, Control Panel |
| 3 | WP488627 Whirlpool Refrigerator Screw |
| 3 | Rail, Top |
| 4 | Trim, Center |
| 5 | Rail, Bottom |
| 5 | WP488729 Whirlpool Refrigerator Door Screw |
| 5 | Screw, 10-32 x 1/2 |
| 9 | Retainer, Glass (4) |
| 10 | Screw (2) |
| 10 | Bracket, Control Panel (2) |
| 11 | Seal, Backguard |
| 12 | Bracket, Control |
| 13 | Timer, Clock (Includes No.6) |
| 14 | Motor, Timer |
| 16 | Rail, Top (Seal, Backguard) |
| 17 | Thermostat, Oven |
| 17 | Thermostat, Oven (Alt.) |
| 17 | Thermostat, Oven (Alt.) |
| 18 | WP486579 Whirlpool Air Conditioner Screw |
| 18 | Selector Switch (4 Position) |
| 19 | Indicator Light (4) |
| 20 | Switch, Oven Light |
| 20 | Lockwasher |
| 21 | Bezel Switch (1) |
| 22 | WP308605 Whirlpool Refrigerator Clamp |
| 22 | WP965173 Whirlpool Dishwasher Screw |
| 23 | Escutcheon, Thermostat |
| 24 | Screw, |
| 24 | WP311069 Whirlpool Oven Dial |
| 25 | WP3150371 Whirlpool Control Knob |
| 26 | Wire, 25` Roll (Red 14 Ga.) |
| 26 | Wire (14 Ga. 200 c Brown) |
| 26 | FOIL, ALUMINUM OVEN (18`` X 25 ) |
| 26 | Wire, 25` Roll (Black 14 Ga.) |
| 26 | Wire, 25`` Roll (White 14 GA.) |
| 26 | Touch-Up Oven (1 Oz.) |
| 26 | 242831 Whirlpool Oven Wire |
| 26 | Wire (14 Ga. 150 c Blue) |
| 26 | Wire (14 Ga. 150 c Brown) |
| 26 | Wire (14 Ga. 150 c Green) |
| 26 | Wire (14 Ga. 150 c Orange) |
| 26 | Wire (14 Ga. 150 c Yellow) |
| 26 | Wire (12 Ga. 150 c Black) |
| 26 | 18 Ga. 80~c Rating (Red) |
| 26 | 1 |
| 26 | Grease |
| 26 | WP3169181 Whirlpool Knob |
| 26 | Spring (3) |
| 26 | Rotisserie Kit (RCK 81) |
| 26 | WPW10208653 Whirlpool Insulation |
