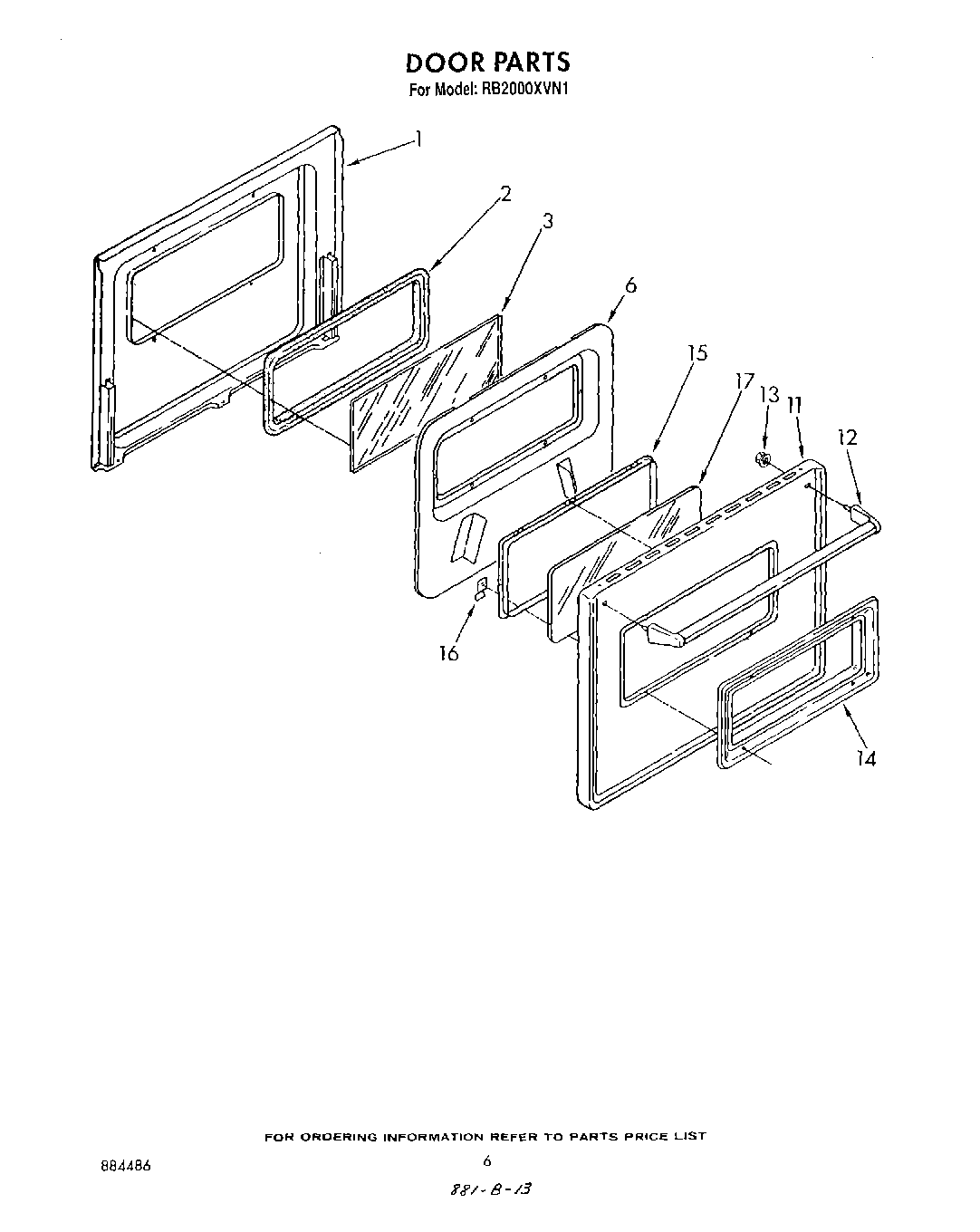

RB2000XVN1 04 – DOOR

Products

PositionProduct
1Screw (3)
1Liner, Door
2Seal, Door
3Glass, Inner
6Screw
6Retainer, Insulation
11Panel, Door (Almond)
11Panel, Door (White)
12Handle, Door
13WP308499 Whirlpool Nut
13Back Splash (Screw (4) 10AB x 1/2“)
14Window, Frame
14Screw
15Retainer, Glass
16Clip, Frame
17Hinge-Lt. or Rt.
17Glass, Outer
