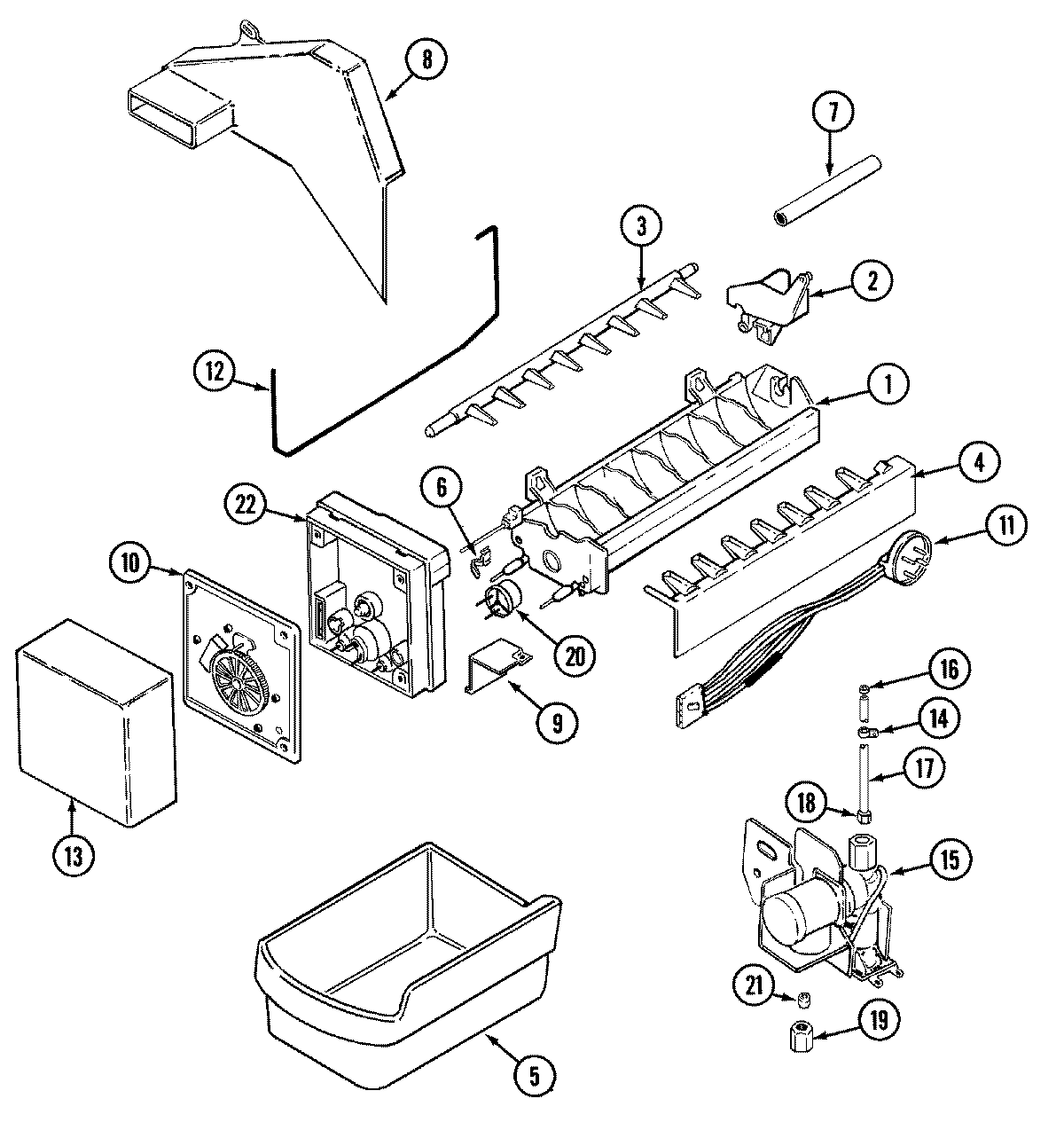

RB2120TM 07 – OPTIONAL ICE MAKER KIT

RB2120TM 07 – OPTIONAL ICE MAKER KIT

Products

PositionProduct
1D7824706Q Whirlpool Refrigerator Ice Maker Assembly
1WP99003172 Whirlpool Silicone L
2WP628356 Whirlpool Refrigerator Fill Cup
3WP627843 Whirlpool Refrigerator Ejector Arm
4WP2182124 Whirlpool Refrigerator Stripper Arm
5WP67001255 Whirlpool Ice Bucket
6WP2315522 Whirlpool Refrigerator Clip
7MAY 67666-8
8MAY 400026-36
8MAY 70198-2
9MAY 95108-1
9BRACKET, MODULE & HEATER
10MAY 95109-1
10MAY 400021-1
11MAY 70076-1
12MAY 68112-1
13MAY 68328-2
14MAY 65275-50
14W10833902 Whirlpool Refrigerator Clamp
15MAY 401018-1
15MAY 69364-1
16WPM0114003 Whirlpool Microwave Speed Clip Clamp
17MAY 67579-7
18WP627018 Whirlpool Refrigerator Nut
19WP245183 Whirlpool Nut
20WP627985 Whirlpool Icemaker Cycling Thermostat
20MAY 95093-1
21WP487627 Whirlpool Refrigerator Sleeve
22WP2195914 Whirlpool Refrigerator Ice Maker Housing
22SCREW
