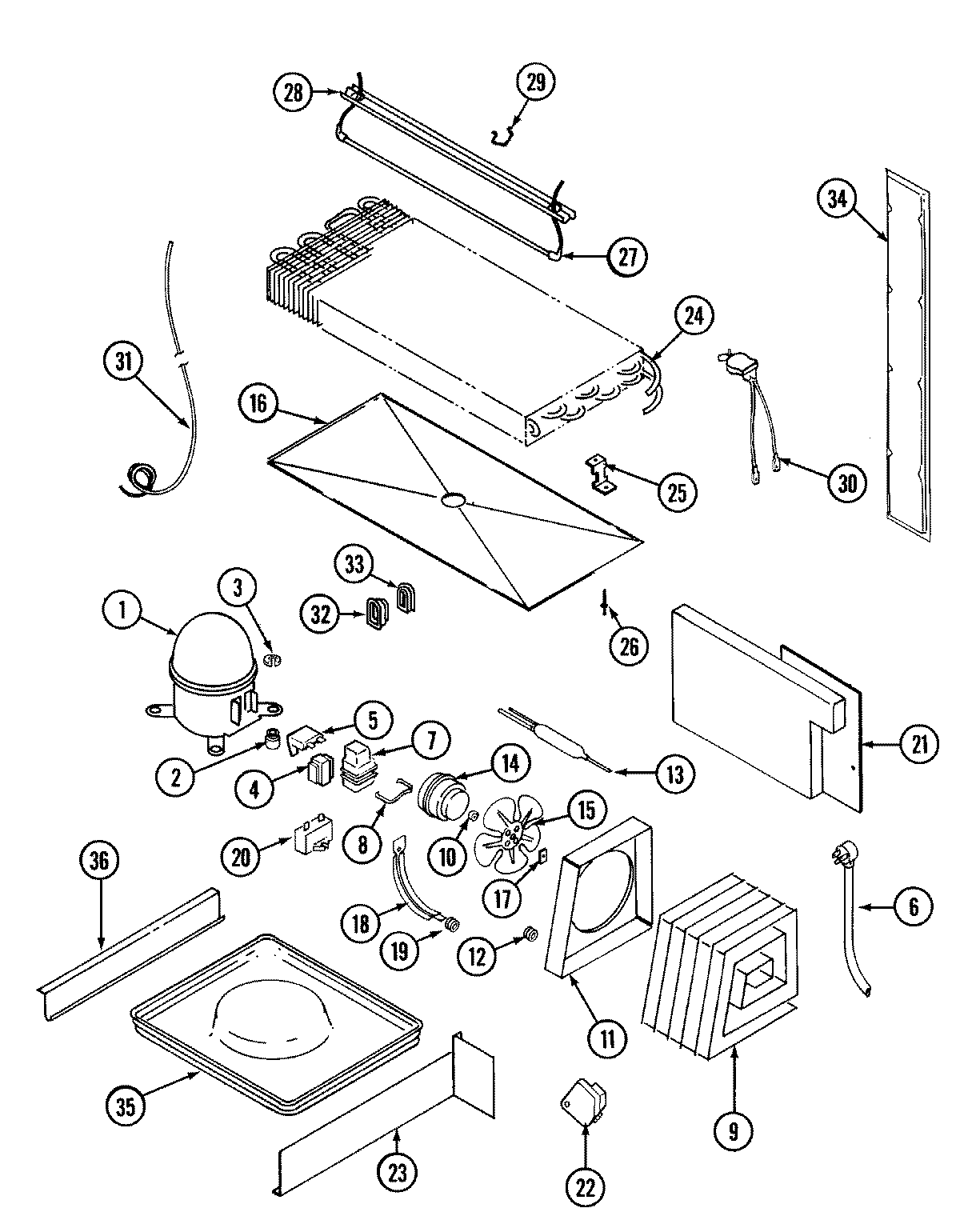

RB2120TM 09 – UNIT COMPARTMENT & SYSTEM

Products

Position	Product
1	MAY RA1032-1
2	MAY 17245-4
3	MAY 52778-2
4	WP10097202 Whirlpool Refrigerator Start Device
5	4388953 Whirlpool Overload Relay
6	MAY 52890-3
7	MAY 69754-1
8	MAY 59596-1
9	MAY 60408-2
9	MAY 414001-1
9	MAY 60434-3
10	MAY 69063-1
11	MAY 61001205
12	MAY 53351-1
13	MAY 13900
14	MAY 65275-33
14	MAY 68445-1
14	MAY 61001016
15	WP12587601 Whirlpool Refrigerator Condenser Blade
16	MAY 69118-2
17	WP486692 Whirlpool Refrigerator Nut
18	MAY 69181-1
19	MAY 56933-1
20	WP65889-4 Whirlpool Refrigerator Capacitor
21	MAY 66338-4
21	WP488729 Whirlpool Refrigerator Door Screw
22	WP68233-2 Whirlpool Refrigerator Defrost Timer
22	MAY 405007-1
23	MAY 66493-1
23	WP489478 Whirlpool Refrigerator Screw
24	MAY 69822-7
25	MAY 60108-2
26	MAY 26397-9
27	WP60106-35 Whirlpool Defrost Heater Assembly
28	MAY 60109-5
29	MAY 68935-1
30	MAY 52085-33
31	MAY 65013-22
31	MAY 61001042
32	MAY 60068-1
33	MAY 60069-1
34	MAY 60177-4
34	MAY 61001561
34	MAY 70162-2
34	MAY 61001136
34	MAY 65275-50
36	MAY 60555-2
36	MAY 60555-1
36	MAY 108340-3
36	MAY 400014-1
