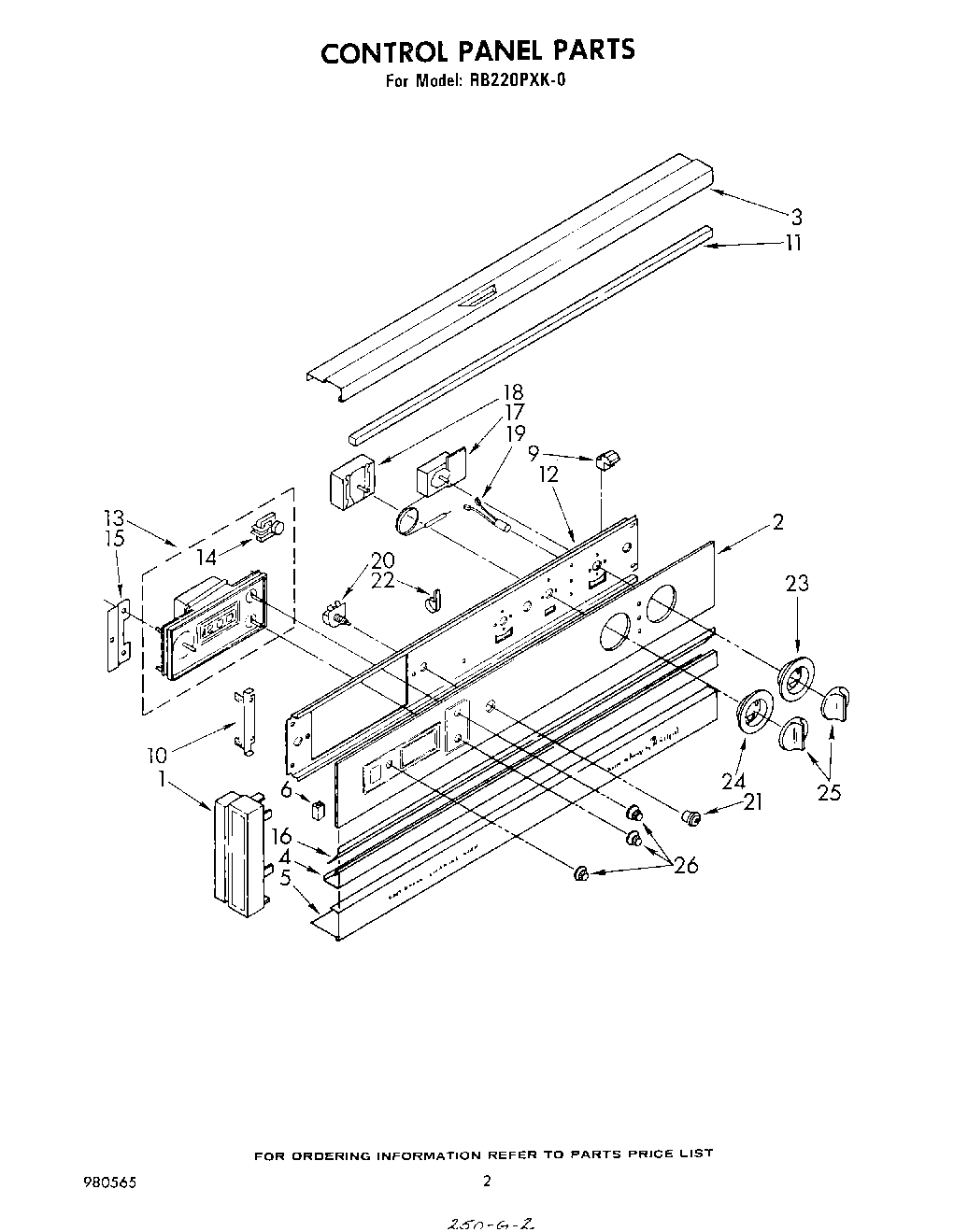

RB220PXK0 02 – SECTION

Products

Position	Product
1	End Cap (R.H.)
1	End Cap (L.H.)
2	Glass, Control Panel
3	WP488627 Whirlpool Refrigerator Screw
3	Rail, Top
4	Trim, Center
5	All 18350A & 1A Models
5	Screw, 10-32 x 1/2
6	Rubber Channel (2) (Black Model Only)
9	Retainer, Glass (4)
10	Bracket, Control Panel (2)
10	Screw (2)
11	Seal, Backguard
12	Bracket, Control
13	Timer, Automatic (Palnut (Timer))
13	Timer, Digital (Includes Illus. 29)
14	Motor, Timer
15	Bracket, Timer
16	Seal, Backguard
17	Thermostat, Oven (Alt.)
17	screw, 6-32 x 1/4 (2)
17	Thermostat, Oven (Alt.)
18	WP486579 Whirlpool Air Conditioner Screw
18	Selector Switch (4 Position)
19	Indicator Light (250V)
20	Switch, Oven Light
20	nut, 3/8 x 27
21	bezel, switch (2)
22	WP965173 Whirlpool Dishwasher Screw
22	WP308605 Whirlpool Refrigerator Clamp
23	Escutcheon, Thermostat
24	WP311069 Whirlpool Oven Dial
24	Screw,
25	WP3150371 Whirlpool Control Knob
26	knob, timer
