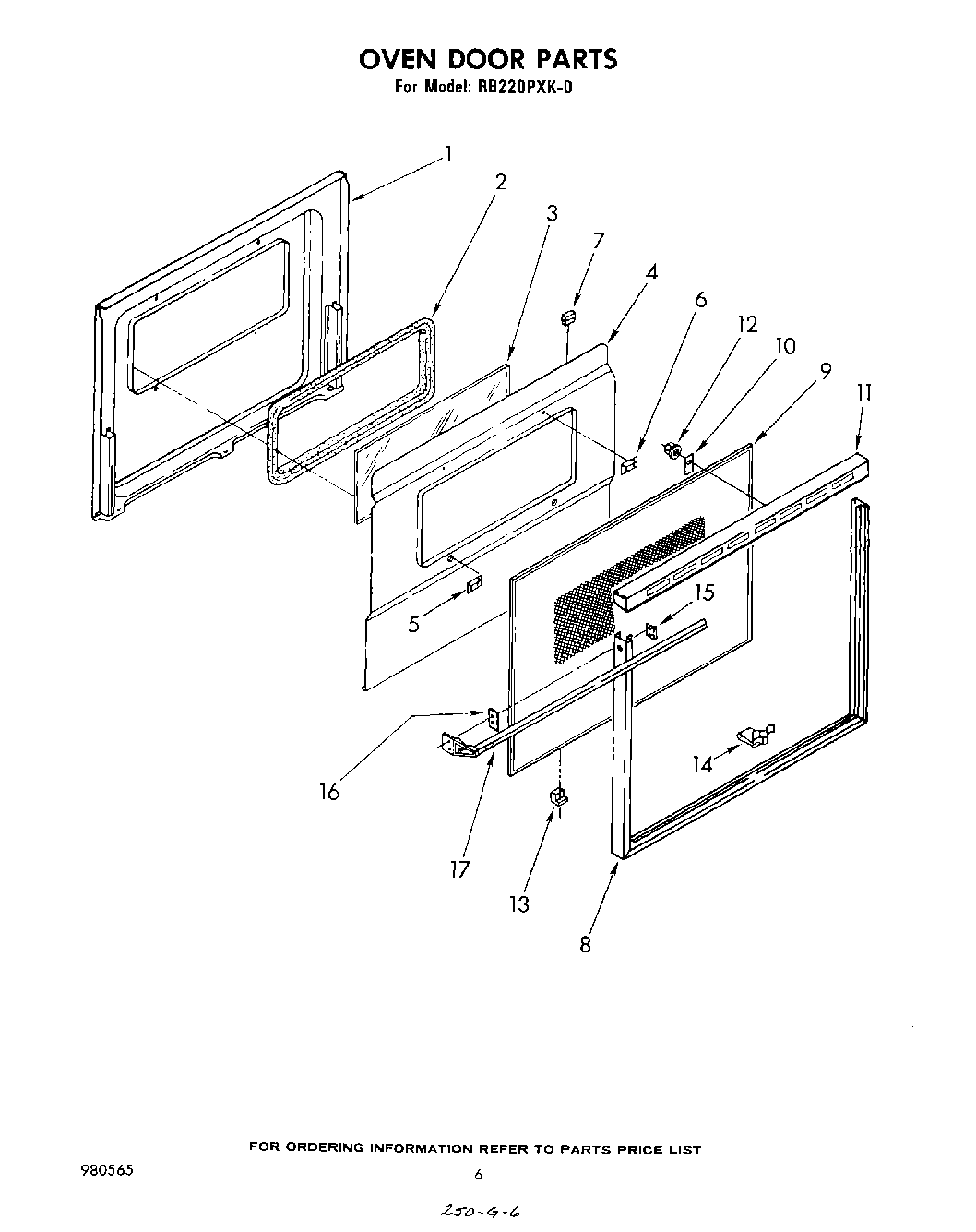

RB220PXK0 04 – SECTION

Products

Position	Product
1	Liner, Door
1	Clip (2)
1	Screw (3)
2	seal, pano glass
3	glass, inner 30“
4	baffle, insulation
6	WP308685 Whirlpool Microwave Screw
6	spacer, insulation baffle (4)
7	channel, rubber (4)
8	frame, door 30“
9	Glass, Outer
10	hold down, glass (2)
11	Screw, 10A x 1/2 (2) (Black)
11	Top, Door Frame
12	WP90296 Whirlpool Clip
13	Cushion, Oven Door (3)
14	clip, glass (10)
15	screw (3)
16	Spacer, Door Handle (2)
17	Installation Instructions
17	Guide, Use & Care
17	Grease
17	WP912618 Whirlpool Dishwasher Screw
17	WPL 308500
17	Handle, Oven Door
17	Wire (12 Ga. 150 c Black)
17	FOIL, ALUMINUM OVEN (18“ X 25 )
17	Wire, 25` Roll (Black 14 Ga.)
17	Wire, 25` Roll (Red 14 Ga.)
17	Wire, 25“ Roll (White 14 GA.)
17	Touch-Up Oven (1 Oz.)
17	242831 Whirlpool Oven Wire
17	Wire (14 Ga. 150 c Blue)
17	Wire (14 Ga. 150 c Brown)
17	Wire (14 Ga. 150 c Green)
17	Wire (14 Ga. 150 c Orange)
17	Wire (14 Ga. 150 c Yellow)
17	18 Ga. 80~c Rating (Red)
17	Wire (14 Ga. 200 c Brown)
17	1
17	WPW10208653 Whirlpool Insulation
