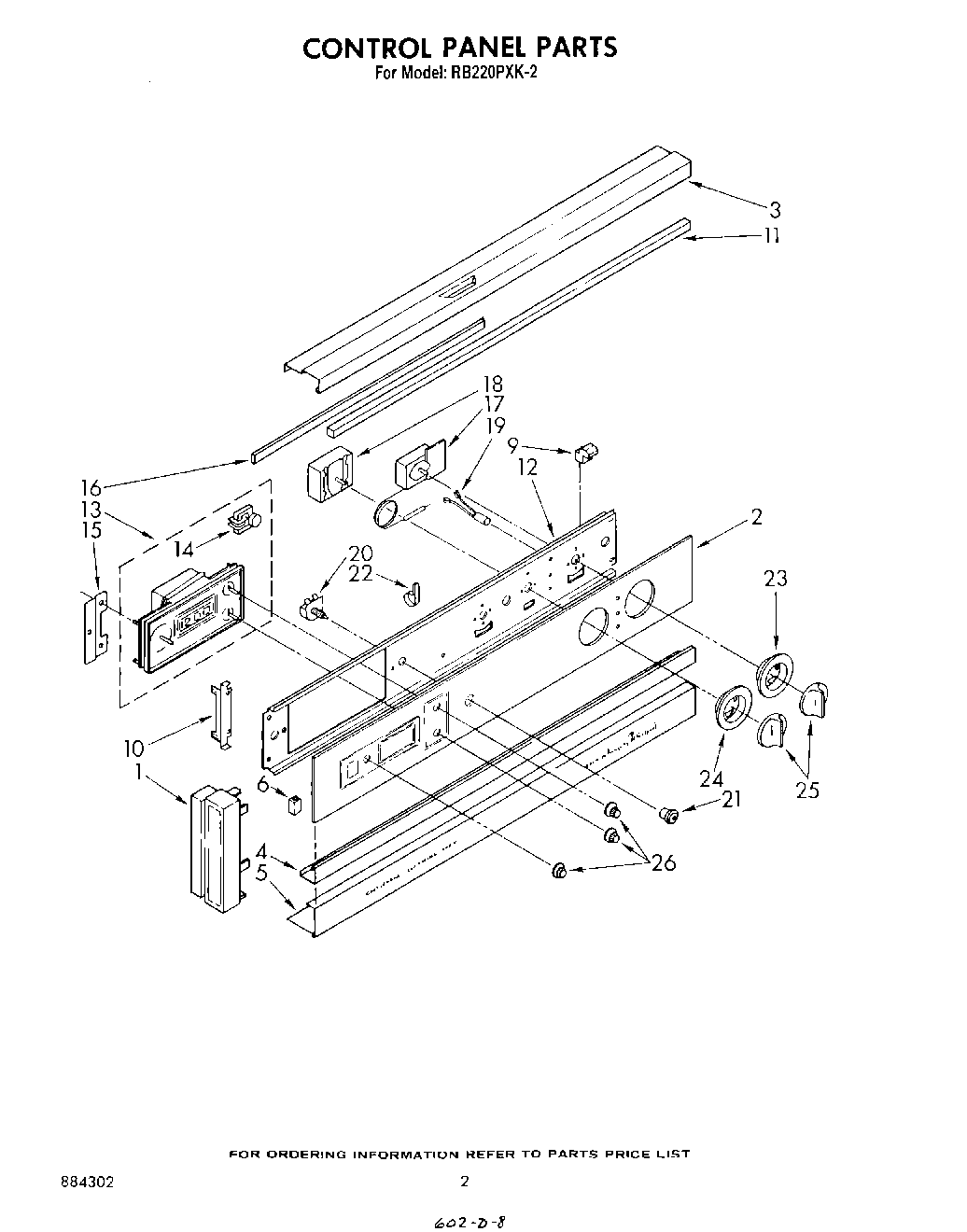

RB220PXK2 02 – CONTROL PANEL

Products

Position	Product
	screw, 6-32 x 1/4 (2)
1	End Cap (R.H.)
1	End Cap (L.H.)
2	Glass, Control Panel
3	WP488627 Whirlpool Refrigerator Screw
3	Rail, Top
4	Trim, Center
5	Rail, Bottom
5	Screw, 10-32 x 1/2
6	Rubber Channel (2) (Black Model Only)
9	Retainer, Glass (4)
10	Screw (2)
10	Bracket, Control Panel (2)
11	Seal, Backguard
12	Bracket, Control
13	Timer, Digital (Included No.14)
13	Timer, Automatic (Palnut (Timer))
14	Motor, Timer
15	Bracket, Timer
16	Rail, Top (Seal, Backguard)
17	Thermostat, Oven
17	Thermostat, Oven (Alt.)
17	Thermostat, Oven (Alt.)
18	Selector Switch (4 Position)
18	WP486579 Whirlpool Air Conditioner Screw
19	Indicator Light (250V)
20	Switch, Oven Light
20	Lockwasher
21	Bezel Switch (1)
22	WP308605 Whirlpool Refrigerator Clamp
22	WP965173 Whirlpool Dishwasher Screw
23	Escutcheon, Thermostat
24	WP311069 Whirlpool Oven Dial
24	Screw,
25	WP3150371 Whirlpool Control Knob
26	Spring (3)
26	WP3169181 Whirlpool Knob
