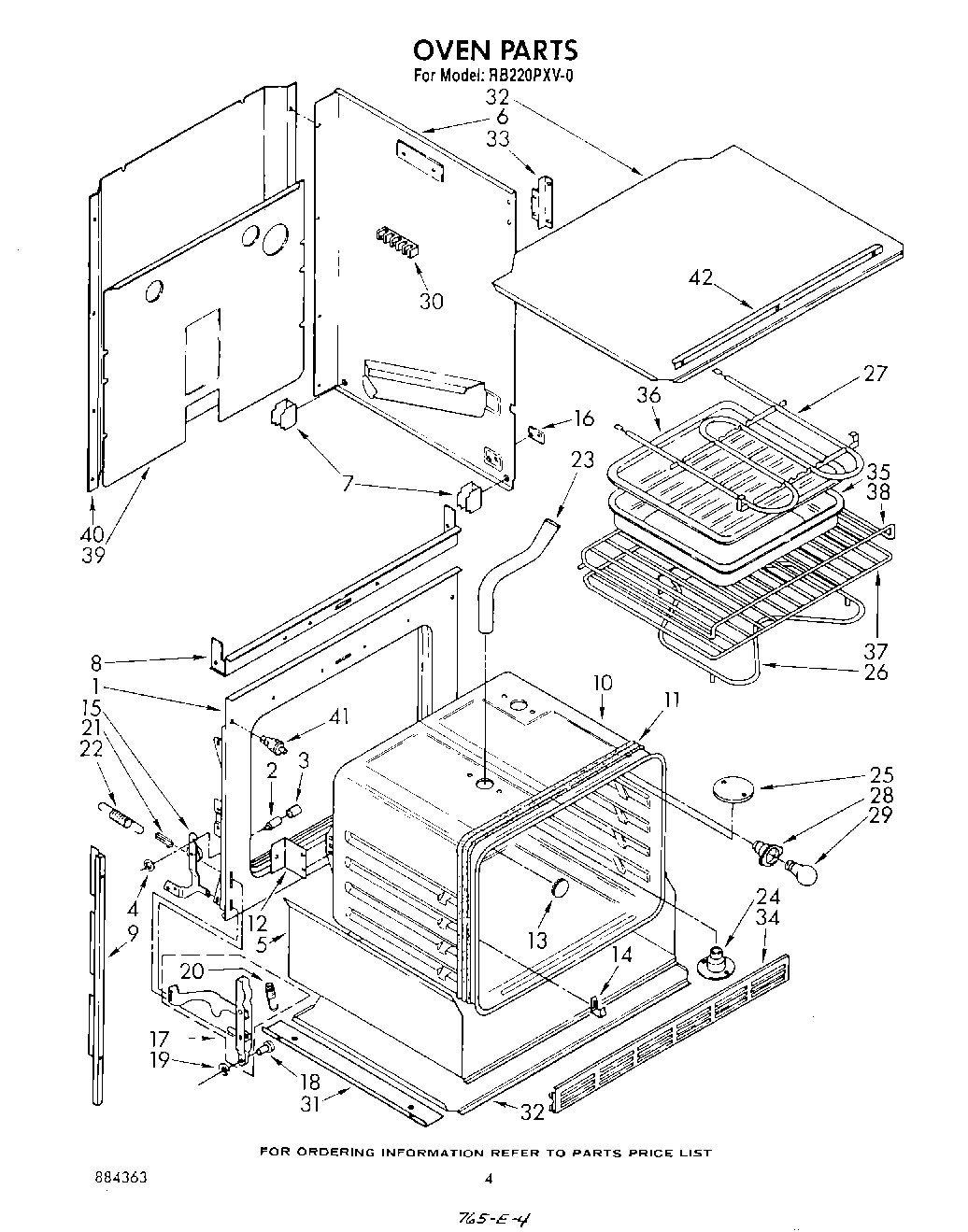

RB220PXV0 03 – OVEN

Products

Position	Product
	Screw (10-12 x .875)
	Screw, 10-32 x 5/8 (4)
1	Frame, Front
2	Pin, Hinge Ear (2)
3	Snubber, Door (2)
4	Pushnut (2)
5	Insulation Tray
6	Side Wrapper (L.H.)
6	Side Wrapper (R.H.)
7	Support, Side Wrapper (4)
8	Baffle, Top Insulation
9	Side Trim (Left Side)
9	Side Trim (Right Side)
10	Oven, 30“ Continuous Clean
10	Screw (3)
11	Heat Seal
12	Bracket, Oven Mounting (2)
13	Plug Button
14	98005642 Whirlpool Clip
15	Hinge Ear, L.H.
15	Hinge Ear, R.H.
16	Plate, Side Panel (2)
16	WP308544 Whirlpool Screw
17	Channel Arm (2)
18	WP307986 Whirlpool Hinge Pin
19	Retainer Ring (2)
20	Spring, Door Stop (2)
21	WP308125 Whirlpool Microwave Range/Cooktop Anchor
22	Spring, Oven Door (2)
23	SCREW
23	Vent, Extension (2)
24	Eliminator, Smoke
25	WPL 310662
26	ELMNT-BAKE
27	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
28	Socket, Oven Light (Alt.)
28	Socket, Oven Light (Alt.)
28	Socket, Oven Light
29	RANGE ONLY 40W 120V APPL BULB
30	WP8203546 Whirlpool Terminal Block
30	WP112432 Whirlpool Nut Assembly
31	Angle, Support (2)
32	WPL 310458
33	WPL 310719
33	Screw, 10-32 x 1/2
34	Grill, Bottom (Screw (3))
34	Grill, Bottom
36	4396923 Whirlpool Broil Pan Set Gray Porcelain
37	WPL 308173
38	WPL 308172
39	WPL 310459
40	WP488729 Whirlpool Refrigerator Door Screw
40	WPL 311011
41	Switch, Door
42	Screw,
42	WPL 312029
