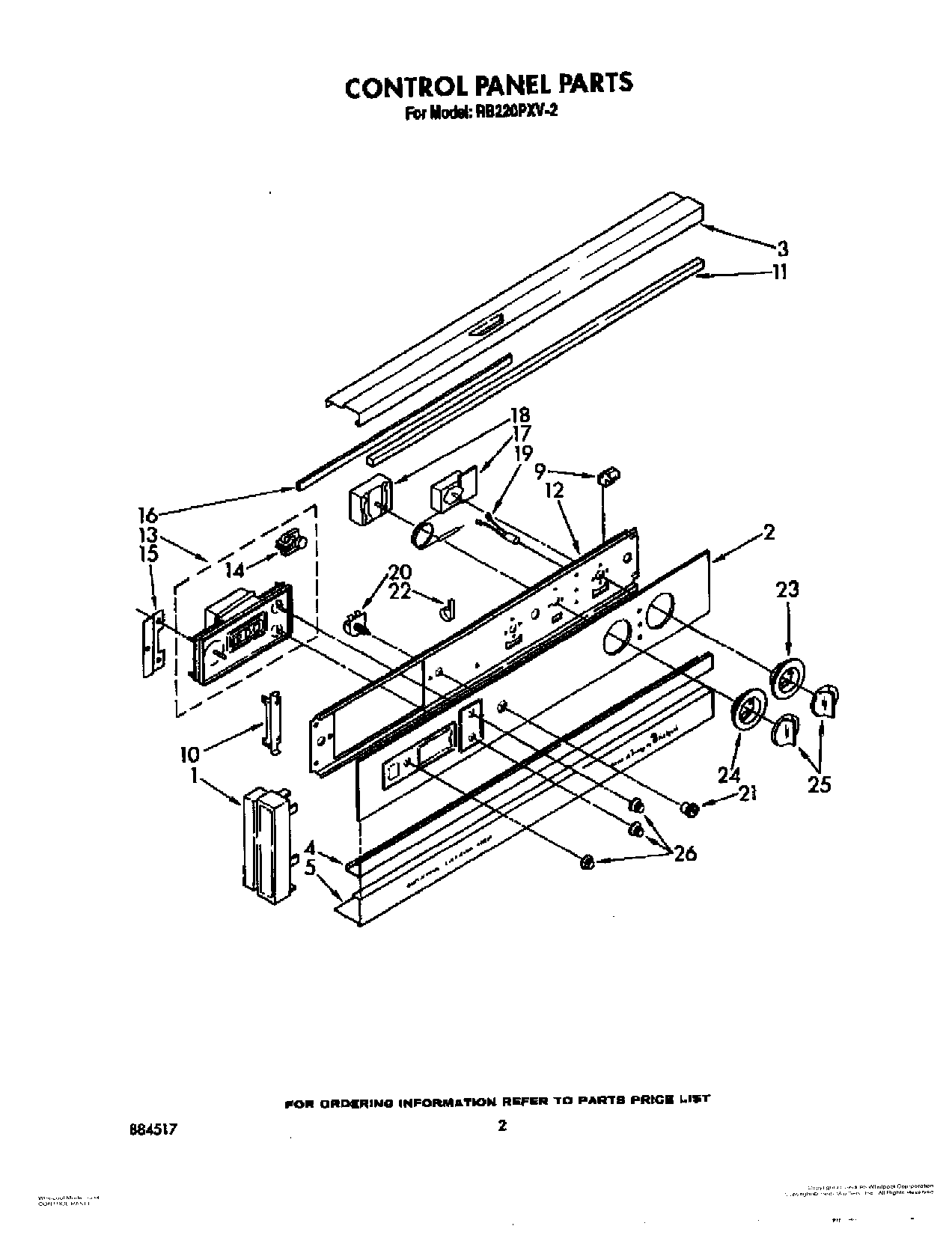

RB220PXV2 02 – CONTROL PANELadmin2025-04-26T11:31:42+00:00RB220PXV2 02 – CONTROL PANEL
Products
| Position | Product |
|---|
| NOTE: The screws and nuts required to attach a part are listed immediately following that part. |
| screw, 6-32 x 1/4 (2) |
| 1 | End Cap (R.H.) |
| 1 | End Cap. L.H. |
| 2 | Glass, Control Panel |
| 3 | Rail, Top |
| 3 | WP488627 Whirlpool Refrigerator Screw |
| 4 | Trim, Center |
| 5 | Screw, 10-32 x 1/2 |
| 5 | Rail, Bottom |
| 9 | Retainer, Glass (4) |
| 10 | Bracket, Control Panel (2) |
| 11 | Seal, Backguard |
| 12 | Bracket, Control |
| 13 | Timer, Digital (Included No.14) |
| 13 | Timer, Automatic (Palnut (Timer)) |
| 14 | Motor, Timer |
| 15 | Bracket, Timer |
| 16 | Rail, Top (Seal, Backguard) |
| 17 | Thermostat, Oven (Alt.) |
| 17 | Thermostat, Oven (Alt.) |
| 17 | Thermostat, Oven |
| 18 | WP486579 Whirlpool Air Conditioner Screw |
| 18 | Selector Switch (4 Position) |
| 19 | Indicator Light (4) |
| 20 | WP965173 Whirlpool Dishwasher Screw |
| 20 | Switch, Oven Light |
| 20 | Lockwasher |
| 21 | Bezel Switch (1) |
| 22 | Screw (2) |
| 22 | WP308605 Whirlpool Refrigerator Clamp |
| 23 | Escutcheon, Thermostat |
| 24 | WP311069 Whirlpool Oven Dial |
| 24 | Screw, |
| 25 | WP3150371 Whirlpool Control Knob |
| 26 | WP3169181 Whirlpool Knob |
| 26 | Spring (3) |
