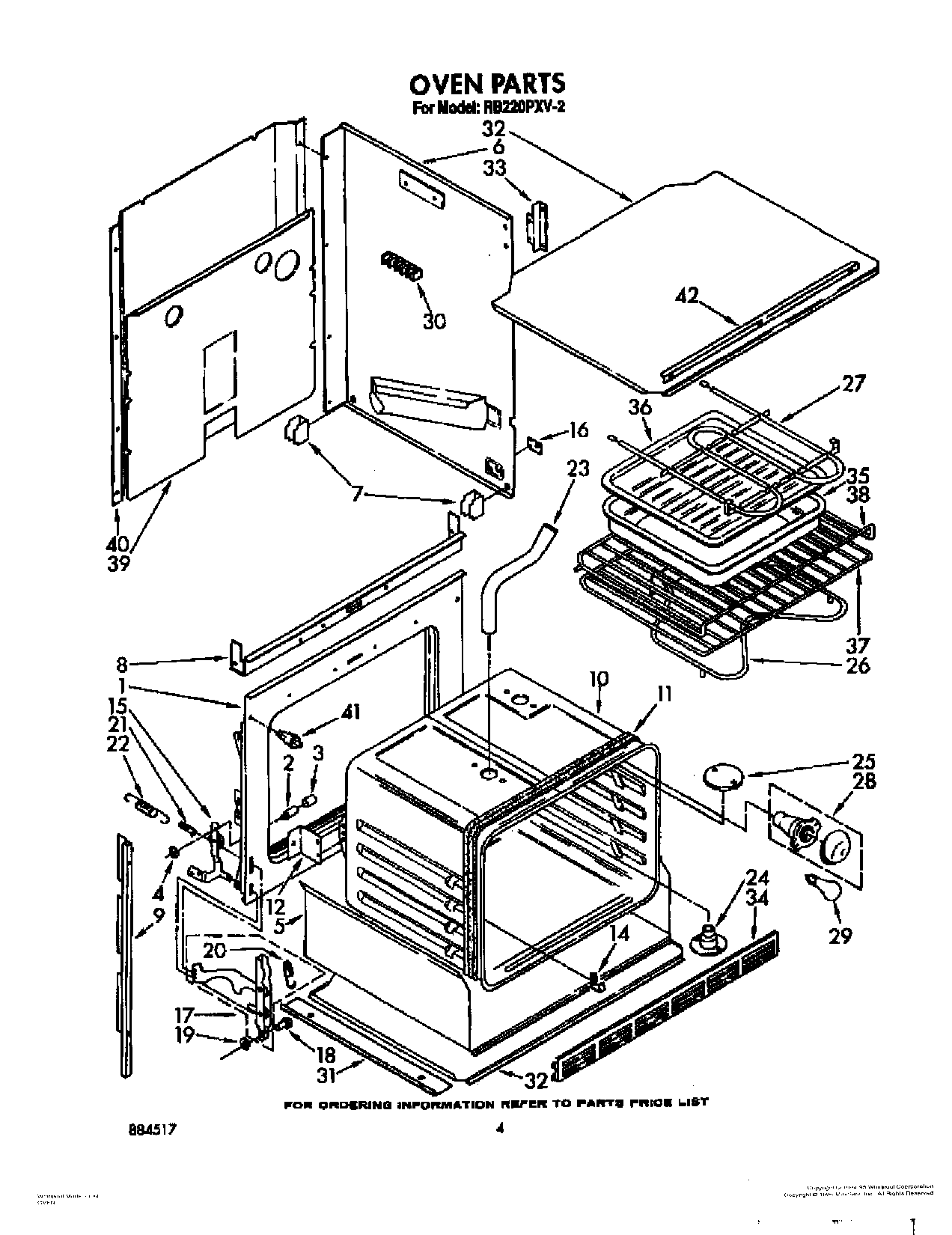

RB220PXV2 03 – OVEN

Products

Position	Product
	WPL LIT313358
	WPL LIT884517
	WPL ARI119640A
	Guide, Use & Care
	Screw (2)
	WPL LIT3149600
1	Frame, Front
2	Pin, Hinge Ear (2)
3	Snubber, Door (2)
4	Pushnut (2)
5	Insulation Tray
6	Side Wrapper (L.H.)
6	Side Wrapper (R.H.)
7	Support, Side Wrapper (4)
8	Baffle, Top Insulation
9	Side Trim (Right Side)
9	Side Trim (Left Side)
10	Oven (30“ Continuous Clean)
10	Screw (3)
11	Heat Seal
12	Bracket, Oven Mounting (2)
14	98005642 Whirlpool Clip
15	Hinge Ear, R.H.
15	Hinge Ear, L.H.
16	WP308544 Whirlpool Screw
16	Plate, Side Panel (2)
17	Channel Arm (2)
18	WP307986 Whirlpool Hinge Pin
19	Retainer Ring (2)
20	Spring, Door Stop (2)
21	WP308125 Whirlpool Microwave Range/Cooktop Anchor
22	Spring, Oven Door (2)
23	Vent, Extension (2)
23	SCREW
24	Eliminator, Smoke
25	WPL 310662
26	ELMNT-BAKE
27	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
28	Screw (10-12 x .875)
28	W11594027 Whirlpool Range Oven Light Socket
29	RANGE ONLY 40W 120V APPL BULB
30	WP8203546 Whirlpool Terminal Block
30	WP112432 Whirlpool Nut Assembly
31	Angle, Support (2)
32	WPL 310458
33	WPL 310719
33	Screw, 10-32 x 1/2
34	Grill, Bottom
34	Grill, Bottom (Screw (3))
36	4396923 Whirlpool Broil Pan Set Gray Porcelain
37	WPL 308173
38	WPL 308172
39	Panel, Back (2)
40	WP488729 Whirlpool Refrigerator Door Screw
40	WPL 311011
41	Switch, Door
42	WPL 312029
42	Screw,
