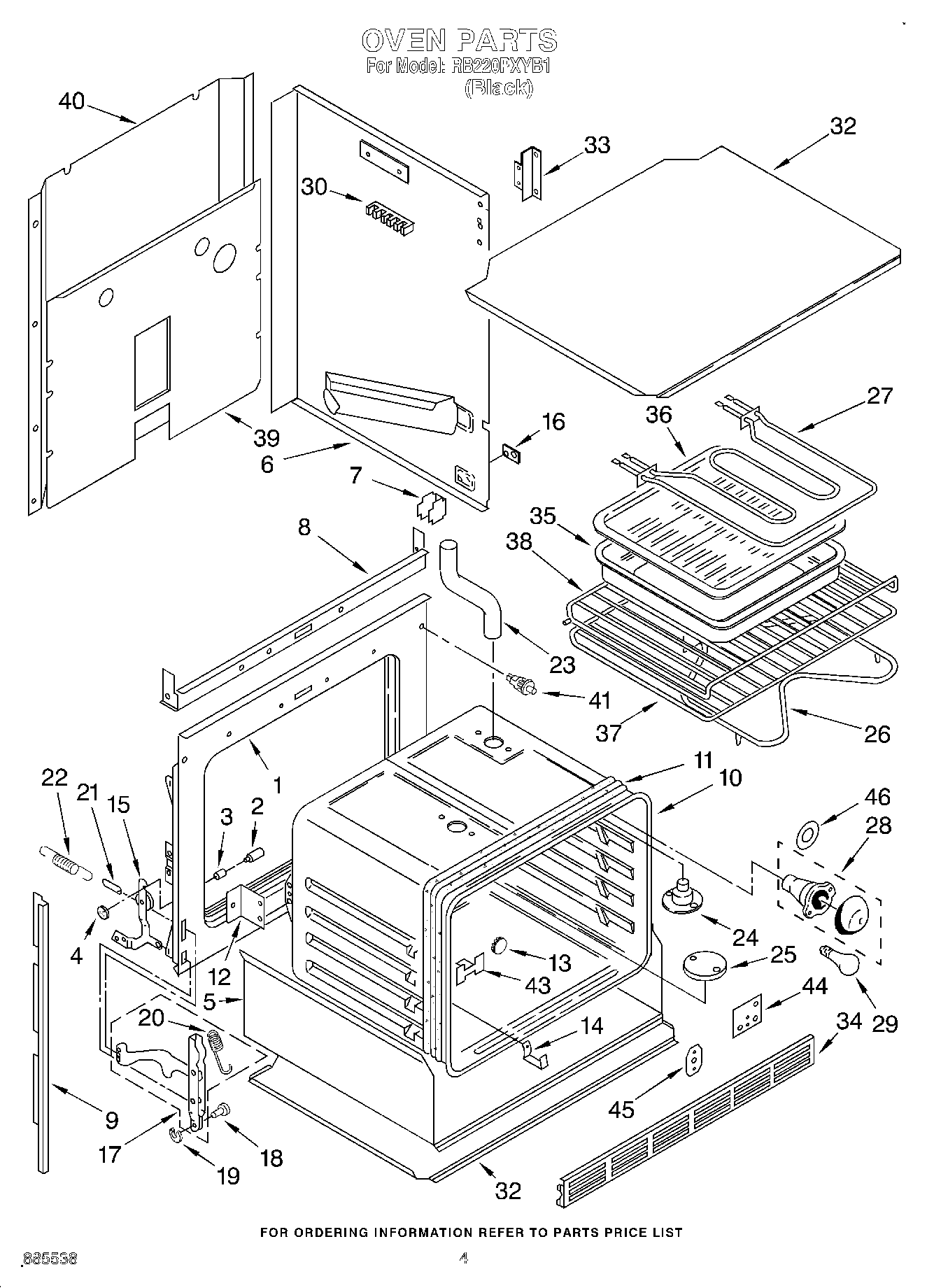

RB220PXYB1 02 – OVEN, LIT/OPTIONAL

Products

Position	Product
	Insulation, Back
	WPL LIT3149600
	WPL LIT3183544
	WPL LIT885538
	WPL 3171507
	Brochure
	WPL LIT313358
	Insulation, Wrap
1	Frame, Front
2	Pin, Hinge Ear (2)
3	Snubber, Door (2)
4	Pushnut (2)
5	Insulation Tray
6	Side Wrapper (R.H.)
6	Side Wrapper (L.H.)
7	Support, Side Wrapper (4)
8	Baffle, Top Insulation
9	Side Trim (Left Side)
9	Side Trim (Right Side)
10	Screw (3)
10	Oven (30“ Continuous Clean)
11	Heat Seal
12	Bracket, Oven Mounting (2)
13	Button, Plug
14	98005642 Whirlpool Clip
15	Hinge, Ear (Right Side)
15	Hinge, Ear (Left Side)
16	Plate, Side Panel (2)
16	WP308544 Whirlpool Screw
17	Channel, Arm (2)
18	WP307986 Whirlpool Hinge Pin
19	Retainer Ring (2)
20	Spring, Door Stop (2)
21	WP308125 Whirlpool Microwave Range/Cooktop Anchor
22	Spring, Oven Door (2)
23	SCREW
23	Vent, Extension (2)
24	Eliminator, Smoke
25	WPL 310662
26	ELMNT-BAKE
27	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
27	Screw (2)
28	Screw (10-12 x .875)
28	W11594027 Whirlpool Range Oven Light Socket
29	RANGE ONLY 40W 120V APPL BULB
30	WP112432 Whirlpool Nut Assembly
30	WP8203546 Whirlpool Terminal Block
32	WPL 310458
33	WPL 310719
33	Screw, 10-32 x 1/2
34	Grill, Bottom (Screw (3))
34	Grill, Bottom
36	4396923 Whirlpool Broil Pan Set Gray Porcelain
37	WPL 308173
38	WPL 308172
39	Panel, Back
40	WPL 311011
41	Switch, Door
43	WPL 3169107
44	WPL 3183005
45	WP488729 Whirlpool Refrigerator Door Screw
45	Plate, Cover
46	WP3184533 Whirlpool Range Light Lens Gasket
