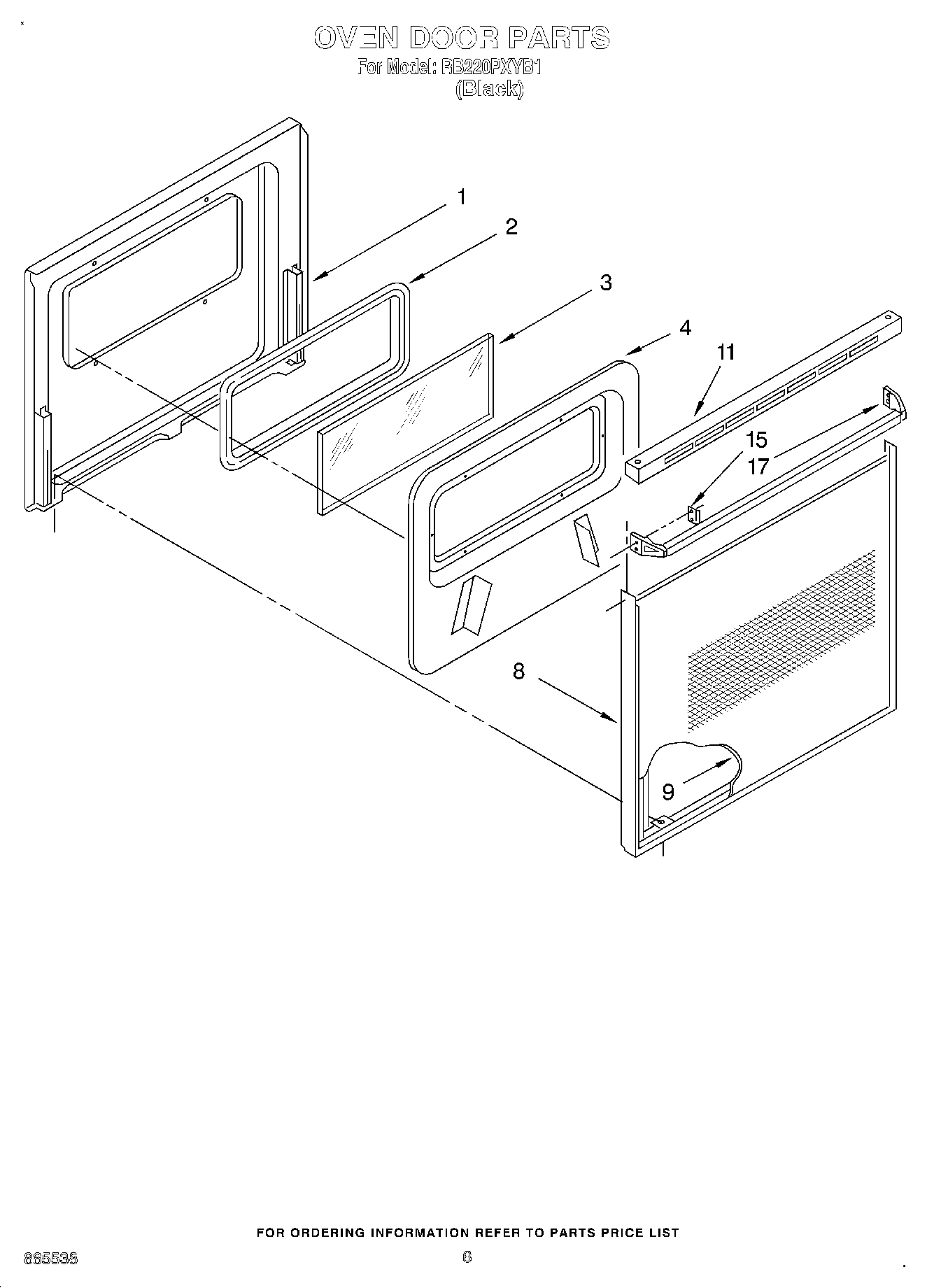

RB220PXYB1 03 – OVEN DOOR, OPTIONALadmin2025-04-26T11:31:56+00:00RB220PXYB1 03 – OVEN DOOR, OPTIONAL
Products
| Position | Product |
|---|
| 1 | Liner, Door |
| 1 | Screw (3) |
| 2 | Seal, Door |
| 3 | Glass, Clear |
| 4 | Retainer, Insulation |
| 4 | Screw |
| 8 | Frame, Door |
| 9 | Glass, Panel (Black Model) |
| 11 | Top, Door (Black Model) |
| 11 | Back Splash (Screw (4) 10AB x 1/2``) |
| 15 | Clip, Mtg (2) |
| 17 | Grease |
| 17 | WP355515 Whirlpool Screw |
| 17 | Handle, Oven Door |
| 17 | 1 |
| 17 | Wire (14 Ga. 200 c Brown) |
| 17 | 18 Ga. 80~c Rating (Red) |
| 17 | Wire (12 Ga. 150 c Black) |
| 17 | Wire, 25` Roll (Red 14 Ga.) |
| 17 | Wire, 25`` Roll (White 14 GA.) |
| 17 | Touch-Up Oven (1 Oz.) |
| 17 | 242831 Whirlpool Oven Wire |
| 17 | Wire (14 Ga. 150 c Blue) |
| 17 | Wire (14 Ga. 150 c Brown) |
| 17 | Wire (14 Ga. 150 c Green) |
| 17 | Wire (14 Ga. 150 c Orange) |
| 17 | Wire (14 Ga. 150 c Yellow) |
| 17 | Wire, 25` Roll (Black 14 Ga.) |
