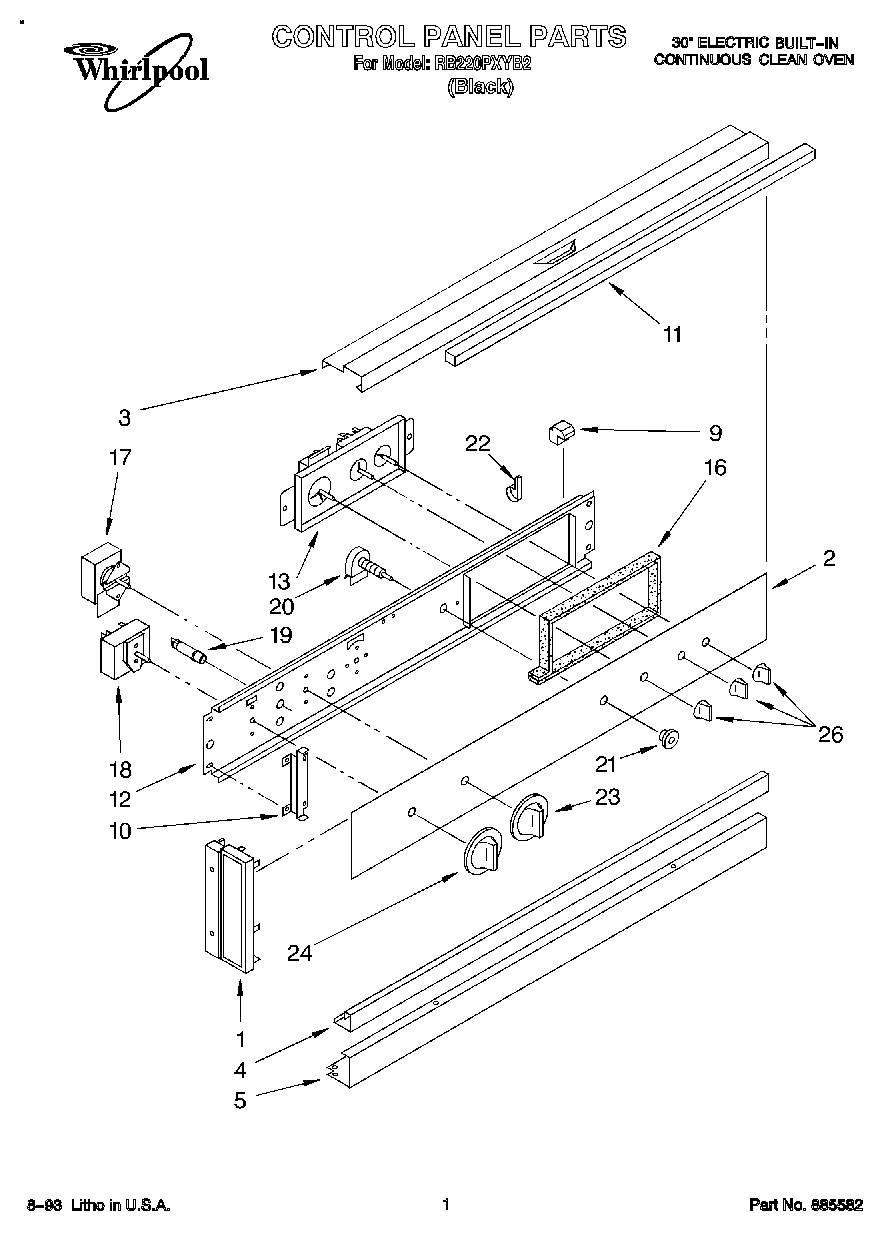

RB220PXYB2 01 – CONTROL PANEL

Products

Position	Product
1	End Cap. L.H.
1	End Cap (R.H.)
2	Glass, Control Panel
3	WP488627 Whirlpool Refrigerator Screw
3	Rail, Top
4	Trim, Center
5	Screw, 10-32 x 1/2
5	Rail, Bottom
9	Retainer, Glass (4)
10	Bracket, Control Panel (2)
11	Seal, Backguard
12	Bracket, Control
13	Timer, Control
16	Rail, Top (Seal, Backguard)
17	Thermostat, Oven
17	screw, 6-32 x 1/4 (2)
18	Screw
18	Selector Switch (4 Position)
19	Indicator Light (4)
20	WP965173 Whirlpool Dishwasher Screw
20	Switch, Oven Light
20	Lockwasher
21	Bezel Switch (1)
22	WP308605 Whirlpool Refrigerator Clamp
22	Screw (2)
23	Knob, Thermostat
24	Knob, Selector
26	Screw, 10A x 1/2 (2) (Black)
26	WP3169181 Whirlpool Knob
