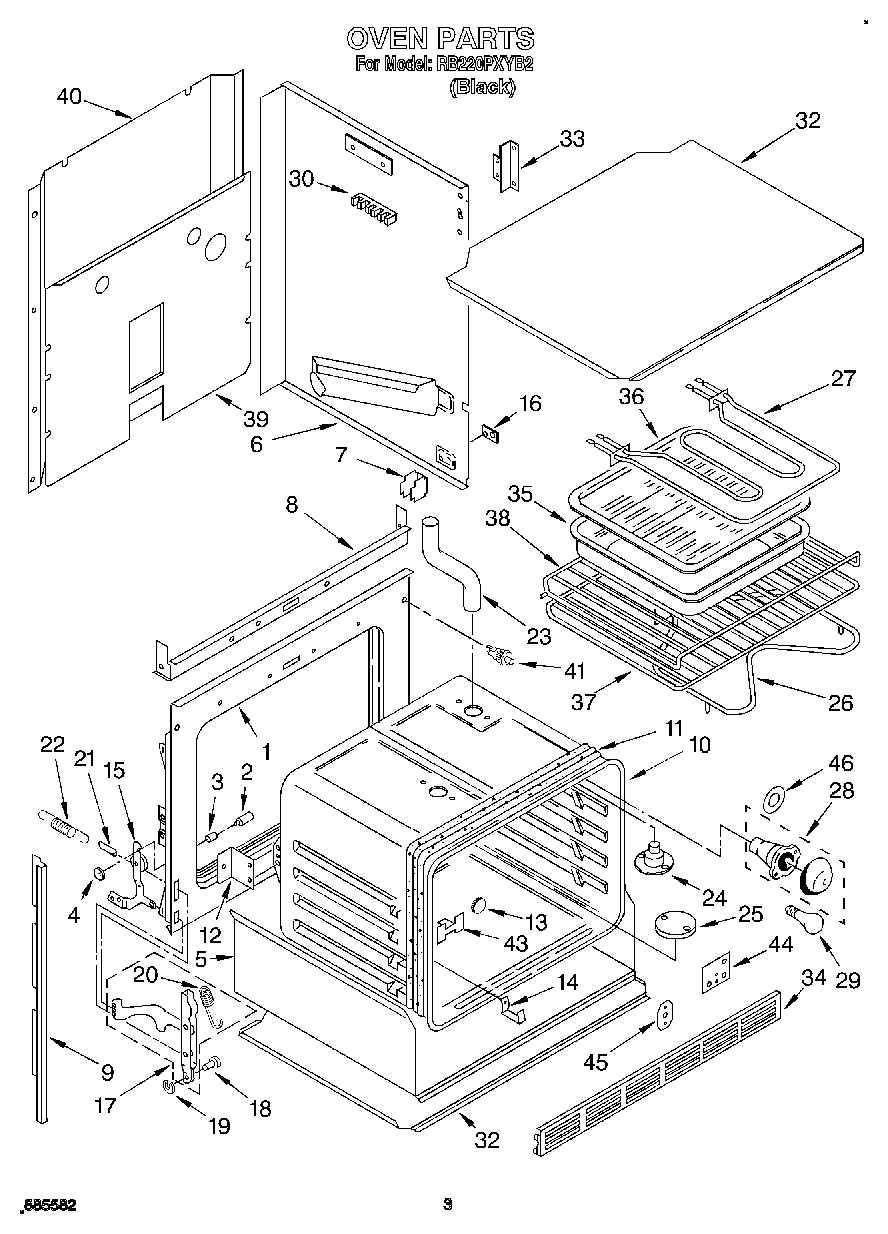

RB220PXYB2 02 – OVEN, LITERATURE
Written by
in
RB220PXYB2 02 – OVEN, LITERATURE
Products
Position
Product
WPL LIT311475
WPL LIT3149600
WPL LIT3183544
Insulation, Back
WPL 3171507
Insulation, Wrap
1
Frame, Front
2
Pin, Hinge Ear (2)
3
Snubber, Door (2)
4
Pushnut (2)
5
Insulation Tray
6
Side Wrapper (L.H.)
6
Side Wrapper (R.H.)
7
Support, Side Wrapper (4)
8
Baffle, Top Insulation
9
Side Trim (Right Side)
9
Side Trim (Left Side)
10
Screw (3)
10
Oven (30“ Continuous Clean)
11
Heat Seal
12
Bracket, Oven Mounting (2)
13
Button, Plug
14
98005642 Whirlpool Clip
15
Hinge, Ear (Left Side)
15
Hinge, Ear (Right Side)
16
WP308544 Whirlpool Screw
16
Plate, Side Panel (2)
17
Channel, Arm (2)
18
WP307986 Whirlpool Hinge Pin
19
Retainer Ring (2)
20
Spring, Door Stop (2)
21
WP308125 Whirlpool Microwave Range/Cooktop Anchor
22
Spring, Oven Door (2)
23
SCREW
23
Vent, Extension (2)
24
Eliminator, Smoke
25
WPL 310662
26
ELMNT-BAKE
27
Screw (2)
27
WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
28
Screw (10-12 x .875)
28
W11594027 Whirlpool Range Oven Light Socket
29
RANGE ONLY 40W 120V APPL BULB
30
WP8203546 Whirlpool Terminal Block
30
WP112432 Whirlpool Nut Assembly
32
Cover, Bottom
33
WPL 310719
33
Screw, 10-32 x 1/2
34
Grill, Bottom
34
Grill, Bottom (Screw (3))
36
4396923 Whirlpool Broil Pan Set Gray Porcelain
37
WPL 308173
38
WPL 308172
39
Panel, Back
40
WPL 3185961
41
Switch, Door
43
WPL 3169107
44
WPL 3183005
45
Plate, Cover
45
WP488729 Whirlpool Refrigerator Door Screw
46
WP3184533 Whirlpool Range Light Lens Gasket
←
