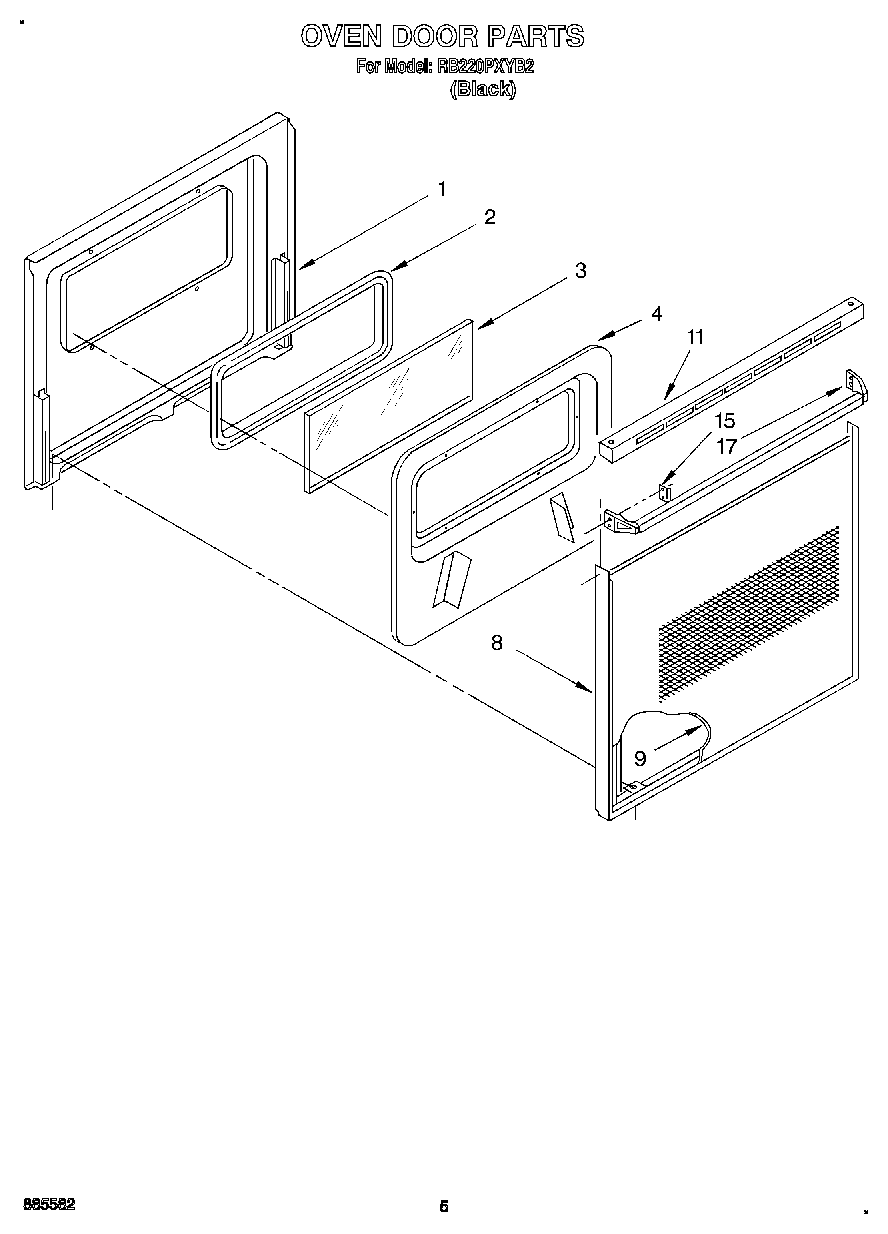

RB220PXYB2 03 – OVEN DOOR, OPTIONAL

RB220PXYB2 03 – OVEN DOOR, OPTIONAL

Written by

in

RB220PXYB2 03 – OVEN DOOR, OPTIONAL

Products

Position	Product
1	Liner, Door
1	Screw (3)
2	Seal, Door
3	Glass, Clear
4	Retainer, Insulation
4	Screw
8	Frame, Door
9	Glass, Panel (Black Model)
11	Back Splash (Screw (4) 10AB x 1/2“)
11	Top, Door (Black Model)
15	Clip, Mtg (2)
17	Grease
17	WP355515 Whirlpool Screw
17	Handle, Oven Door
17	1
17	Wire (14 Ga. 200 c Brown)
17	18 Ga. 80~c Rating (Red)
17	Wire (12 Ga. 150 c Black)
17	Wire, 25` Roll (Red 14 Ga.)
17	Wire, 25“ Roll (White 14 GA.)
17	242831 Whirlpool Oven Wire
17	Wire (14 Ga. 150 c Blue)
17	Wire (14 Ga. 150 c Brown)
17	Wire (14 Ga. 150 c Green)
17	Wire (14 Ga. 150 c Orange)
17	Wire (14 Ga. 150 c Yellow)
17	Wire, 25` Roll (Black 14 Ga.)
