RB22CKXYW00 05 – SHELF, LIT/OPTIONAL

RB22CKXYW00 05 – SHELF, LIT/OPTIONAL

Written by

in

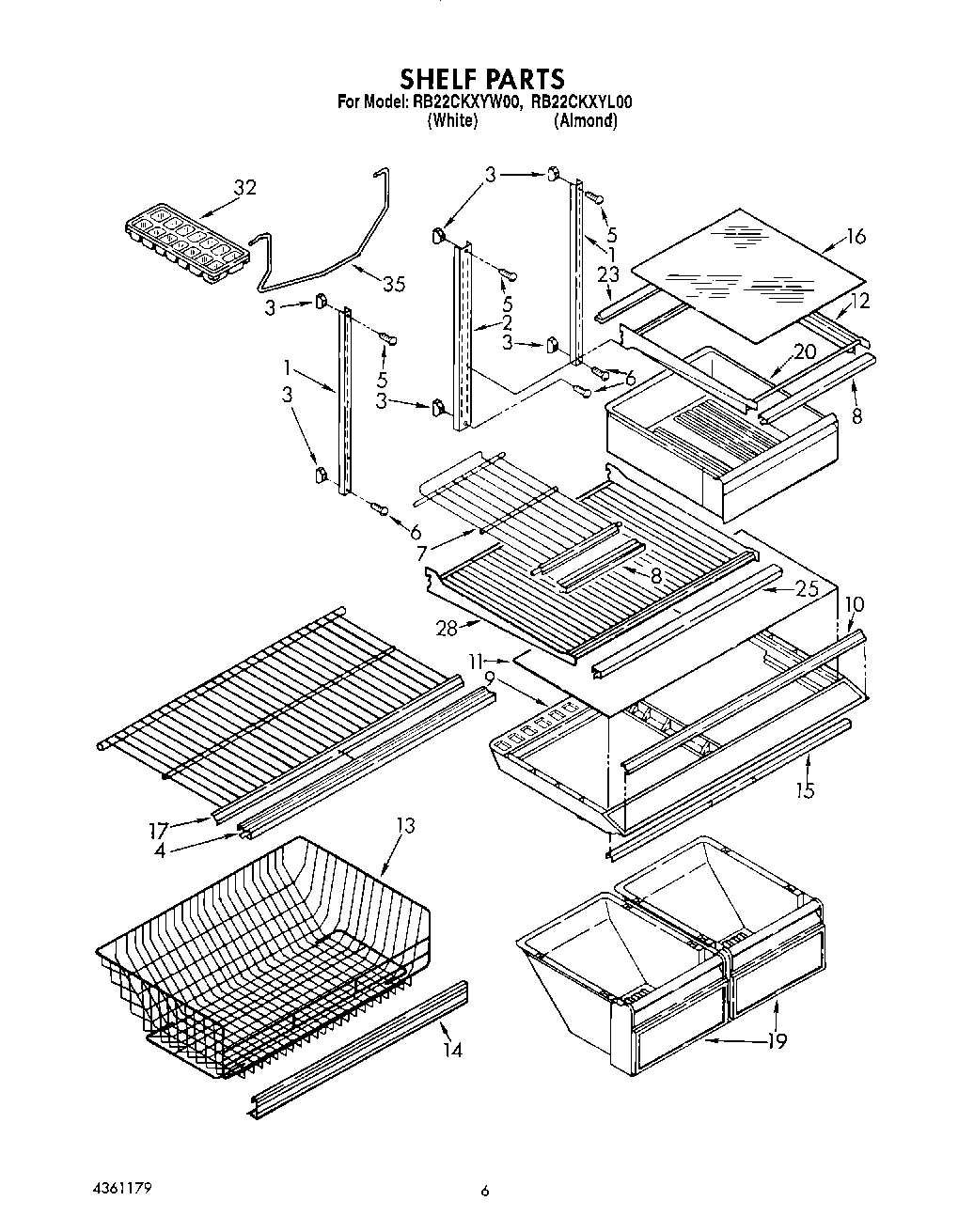

RB22CKXYW00 05 – SHELF, LIT/OPTIONAL

Products

PositionProduct
1129316 Whirlpool Refrigerator Ice Maker Kit Square Plug
WPL LIT2149156
WPL 111750
WPL LIT2152470
WPL LIT2152508
WPL LIT4361179
1Shelf, Ladder (2)
2Shelf, Ladder Center
3520965 Whirlpool Refrigerator Support
4Trim, Shelf F.C.
5Screw (3)
6WP488163 Whirlpool Refrigerator Screw
7Shelf, Cantilever
8Trim, Shelf
9WP2151749 Whirlpool Refrigerator Cover
10Trim, Crisper Cover
11Glass, Crisper Cover
12Pan Shelf, Cantilever
13Basket-Freezer
14Trim, Basket
15WP2172748 Whirlpool Drawer Support
16Glass, Shelf
17Shelf, F.C. Full
19Pan, Crisper
20Pan, Meat
23Retainer, Glass
25Trim, Shelf
28Shelf, Full Cantilever
32WP841180A Whirlpool Microwave Glass Turntable Tray
35212643 Whirlpool Refrigerator Permagum Sealer
35Icemaker Arm (When Ordering Field Installable Icemaker This Arm Must Be Used)
35Leveler (Thinner)
35350930 Whirlpool White Spray Paint
35Almond (Uncut)
35WP72107 Whirlpool Touchup
35799344 Whirlpool Refrigerator Paint
3572017 Whirlpool Appliance Touch-Up Paint White
35350956 Whirlpool Spray Assembly
35350942 Whirlpool Spray Paint
35WPL 876029
35285006 Whirlpool Spray
3572032 Whirlpool Touch Up Paint Black
35TAPE, VINYL (3/4 X 108“)
35WP542638 Whirlpool Refrigerator Grease
35WP505587 Whirlpool Refrigerator Sealer
35WP503695 Whirlpool Refrigerator Sealer
35876370 Whirlpool Refrigerator Insulation
35833938 Whirlpool Refrigerator Terminal
35606755 Whirlpool Refrigerator Bag
35WPL 799833
35511873 Whirlpool Refrigerator Paint
35CEMENT, ALUMILASTIC (1 1/4 OZ.)
