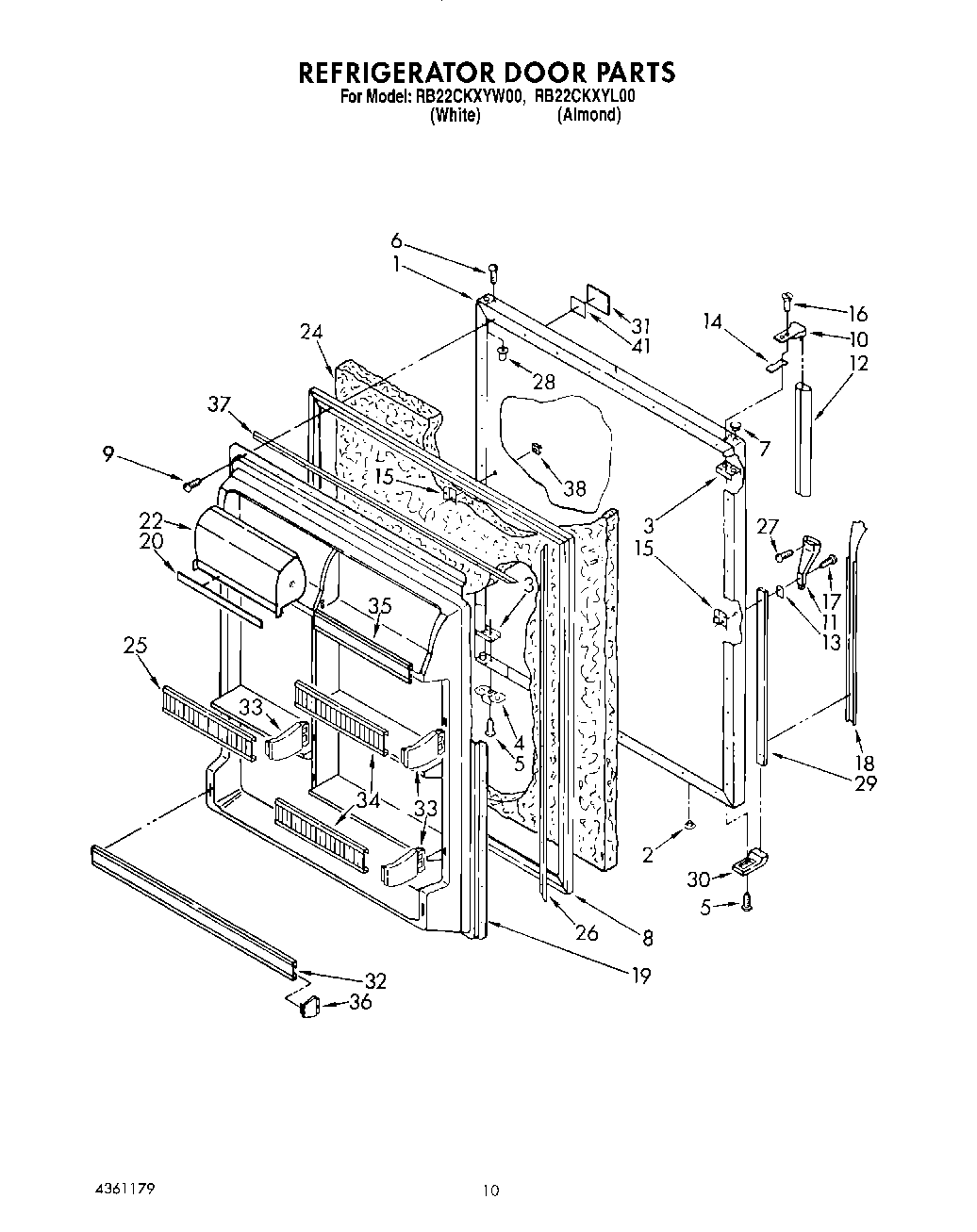

RB22CKXYW00 07 – REFRIGERATOR DOOR

Products

Position	Product
1	Door, Refrigerator (Also Order Item 31) (Almond)
1	Door, Refrigerator (Also Order Item 31) (White)
2	Hole Plug (2)
3	W10833053 Whirlpool Refrigerator Plate
4	Bracket, Door Stop
5	WP488921 Whirlpool Refrigerator Screw
6	WP8281206 Whirlpool Refrigerator Screw
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7	Hole Plug (Almond)
8	Door Gasket, Magnetic
9	WP489069 Whirlpool Compactor Screw
9	SCREW
10	Handle End
11	Handle End, Side
12	Handle (Center) (For P
13	Shim
14	Spa
15	WP939101 Whirlpool Refrigerator Plate
16	WP488920 Whirlpool Refrigerator Screw
18	Insert, Handle
19	Interior Door Panel
20	Trim, Door Compartment
22	Compartment Door,
24	WPL 876029
25	Trim, Door Shelf
26	Retainer Gasket, Side (2)
27	Screw
28	Cap, Hinge Sleeve (2)
29	WPL 935873
30	WPL 1105804
31	Nameplate
32	Trim, Door Shelf
33	4388286 Whirlpool Refrigerator Shelf Bar Endcap Kit 2 Pack White
34	Trim, Door Shelf
35	Trim, Door Shelf
36	End Cap, Trim (4)
37	Retainer, Gasket Top
38	WP2189000 Whirlpool Refrigerator Handle Plug
38	Hole Plug, Handle (Almond)
41	Tape Strip
