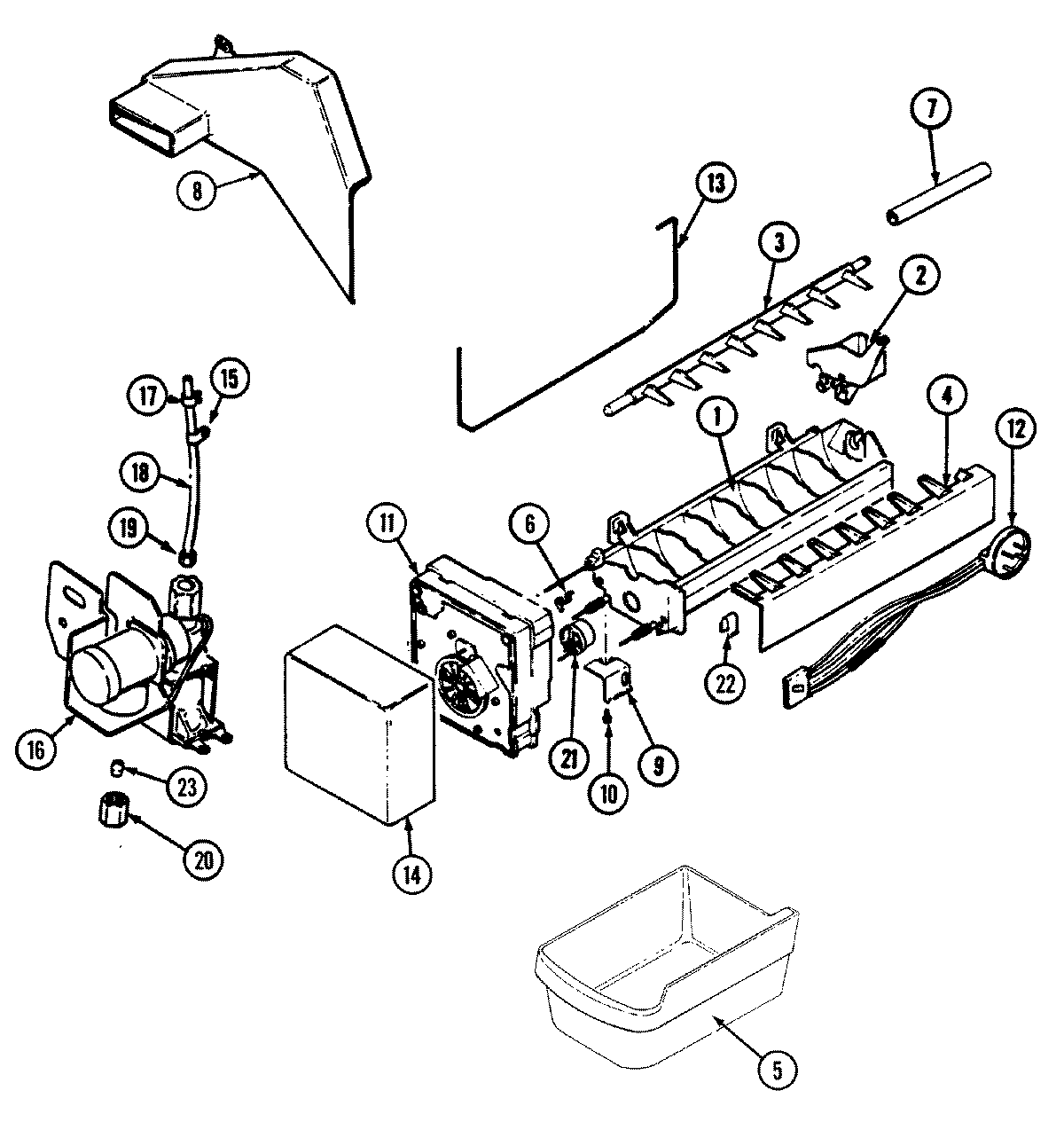

RB234TV 04 – OPTIONAL ICE MAKER KIT

Products

Position	Product
1	WP99003172 Whirlpool Silicone L
1	D7824706Q Whirlpool Refrigerator Ice Maker Assembly
2	WP628356 Whirlpool Refrigerator Fill Cup
3	WP627843 Whirlpool Refrigerator Ejector Arm
4	WP2182124 Whirlpool Refrigerator Stripper Arm
5	MAY 60653-1
6	WP2315522 Whirlpool Refrigerator Clip
7	MAY 67666-8
8	MAY 400026-36
8	MAY 70198-2
9	BRACKET, MODULE & HEATER
10	MAY 95108-1
11	WP2195914 Whirlpool Refrigerator Ice Maker Housing
11	SCREW
11	MAY 95109-1
11	MAY 400021-1
12	MAY 70076-1
13	MAY 68112-1
14	MAY 68328-2
15	MAY 65275-50
15	W10833902 Whirlpool Refrigerator Clamp
16	MAY 69364-1
16	MAY 401018-1
17	WPM0114003 Whirlpool Microwave Speed Clip Clamp
18	MAY 67579-7
19	WP627018 Whirlpool Refrigerator Nut
20	WP245183 Whirlpool Nut
21	WP627985 Whirlpool Icemaker Cycling Thermostat
21	MAY 95093-1
22	MAY 68118-1
23	WP487627 Whirlpool Refrigerator Sleeve
